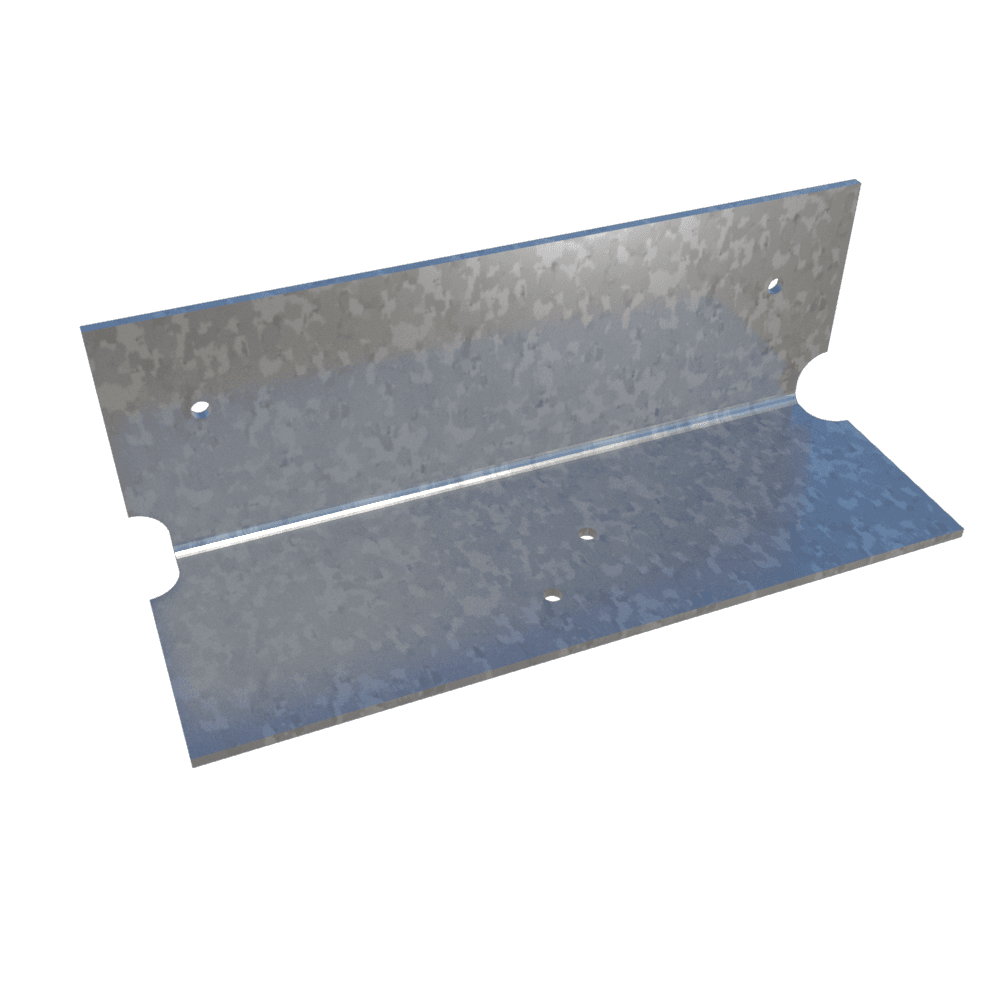

EasyClip™ X-Series™ Clip Angles

Used to secure U-channel to wall studs for lateral bridging

EasyClip™ X-Series™ Clip Angles have extra long legs (2" x 2") and are used to secure U-channel to wall studs for lateral bridging.

Quick Actions:

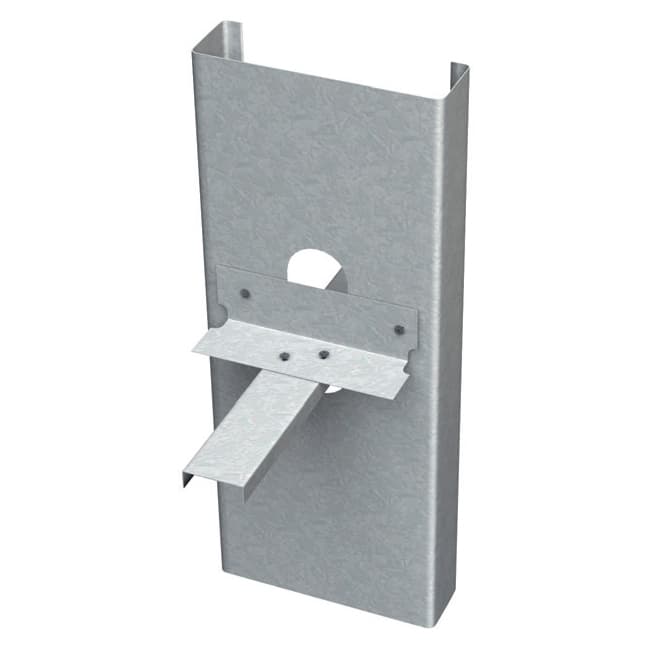

EasyClip™ X-Series™ Clip Angles are used to secure U-channel to wall studs for lateral bridging. U-Channel is passed through the stud knockout and an EasyClip™ X-Series™ clip is screw attached or welded to provide a rigid connection. X-Series™ clip angles and U-channel should not be used in lateral bridging when stud width exceeds 6". EasyClip™ X-Series™ clip angles are also used to secure one framing member to another or to attach and reinforce headers and sills in door and window openings. X-Series™ clips are prepunched for faster and more accurate fastener placement.

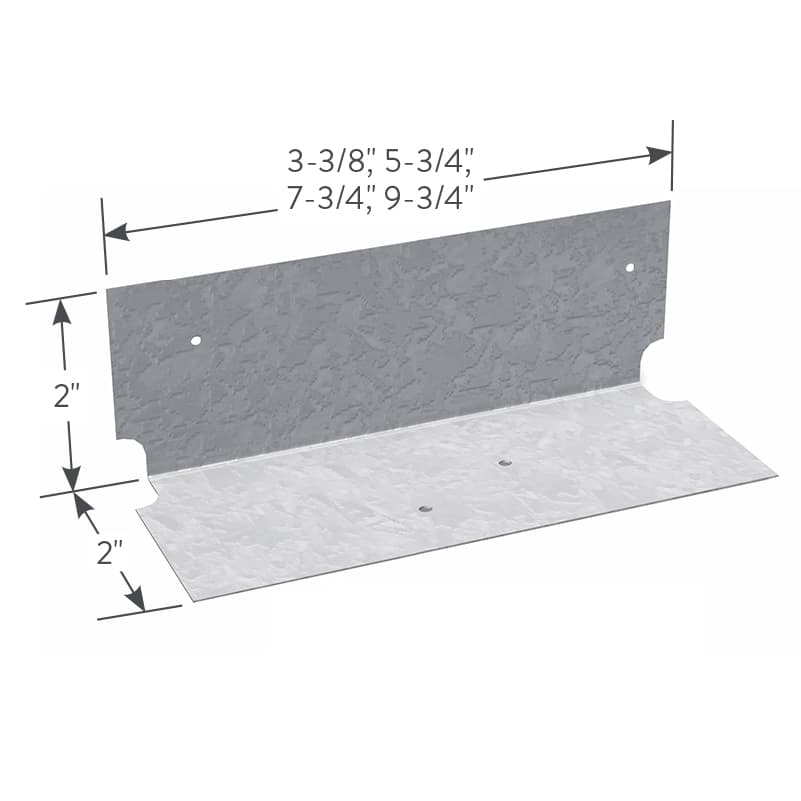

2" x 2" legs.
Available in 3-3/8", 5-3/4", 7-3/4" and 9-3/4" lengths.
Prepunched for faster and more accurate fastener placement.

Alternative Products:

Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
Technical Support at 888-437-3244 or support@clarkdietrich.com

Product Data & Ordering Information

Product Code	Gauge	Mils	Design Thickness (in)	Size (in)	Pcs./Bucket
X543	16	54	0.0566	2 x 2 x 3-3/8	200
X545	16	54	0.0566	2 x 2 x 5-3/4	170
X547	16	54	0.0566	2 x 2 x 7-3/4	100
X549	16	54	0.0566	2 x 2 x 9-3/4	100
X683	14	68	0.0713	2 x 2 x 3-3/8	200
X685	14	68	0.0713	2 x 2 x 5-3/4	100
X687	14	68	0.0713	2 x 2 x 7-3/4	100
X689	14	68	0.0713	2 x 2 x 9-3/4	80
X973	12	97	0.1017	2 x 2 x 3-3/8	100
X975	12	97	0.1017	2 x 2 x 5-3/4	100
X977	12	97	0.1017	2 x 2 x 7-3/4	60
X979	12	97	0.1017	2 x 2 x 9-3/4	60

Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating
See submittals for product weights
