FastBridge™ Clip (FB33, FB43 & FB68)New
Used to secure u-channel to wall studs for lateral bracing

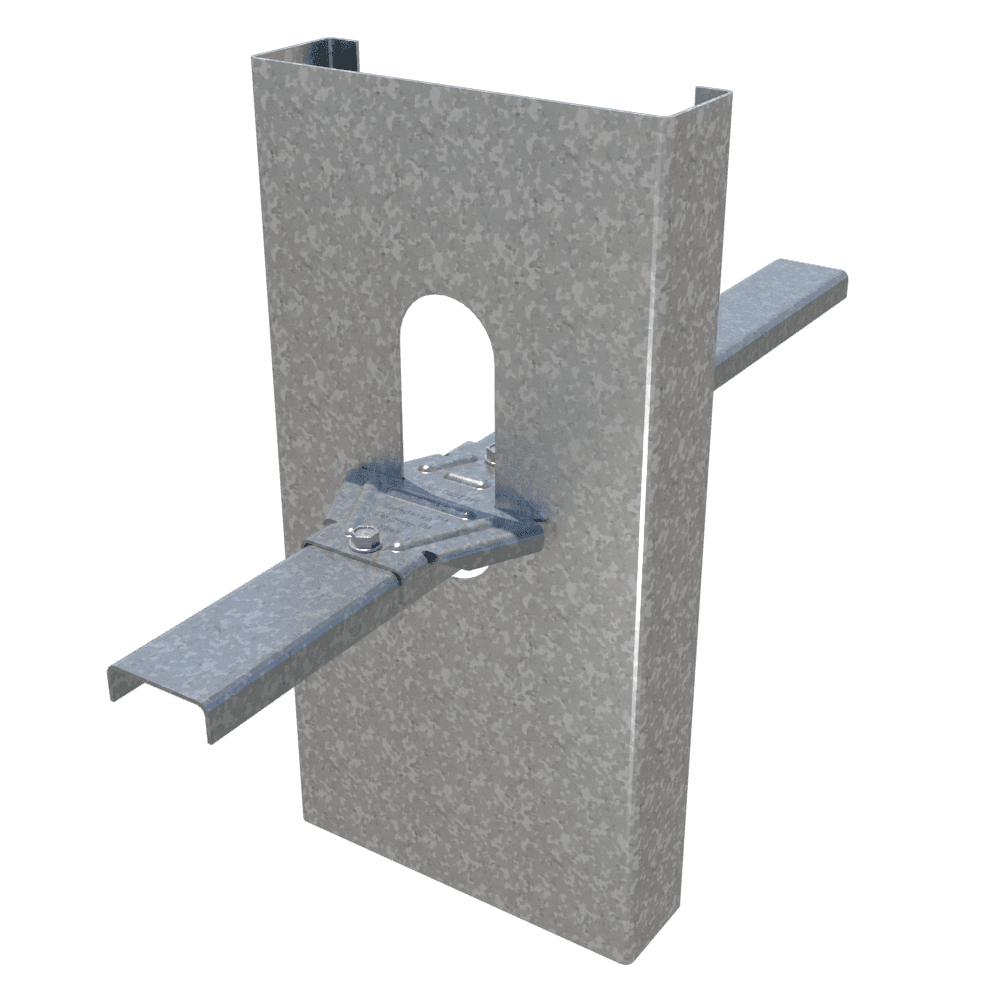

The ClarkDietrich FastBridge™ clip is used to secure U-Channel or Cold Rolled Channel (CRC) to structural or non-structural wall studs when used in load-bearing, curtain wall or drywall framing applications.
Quick Actions:
The wall stud friction fit design allows for as little as one screw for the connection to the U-Channel.

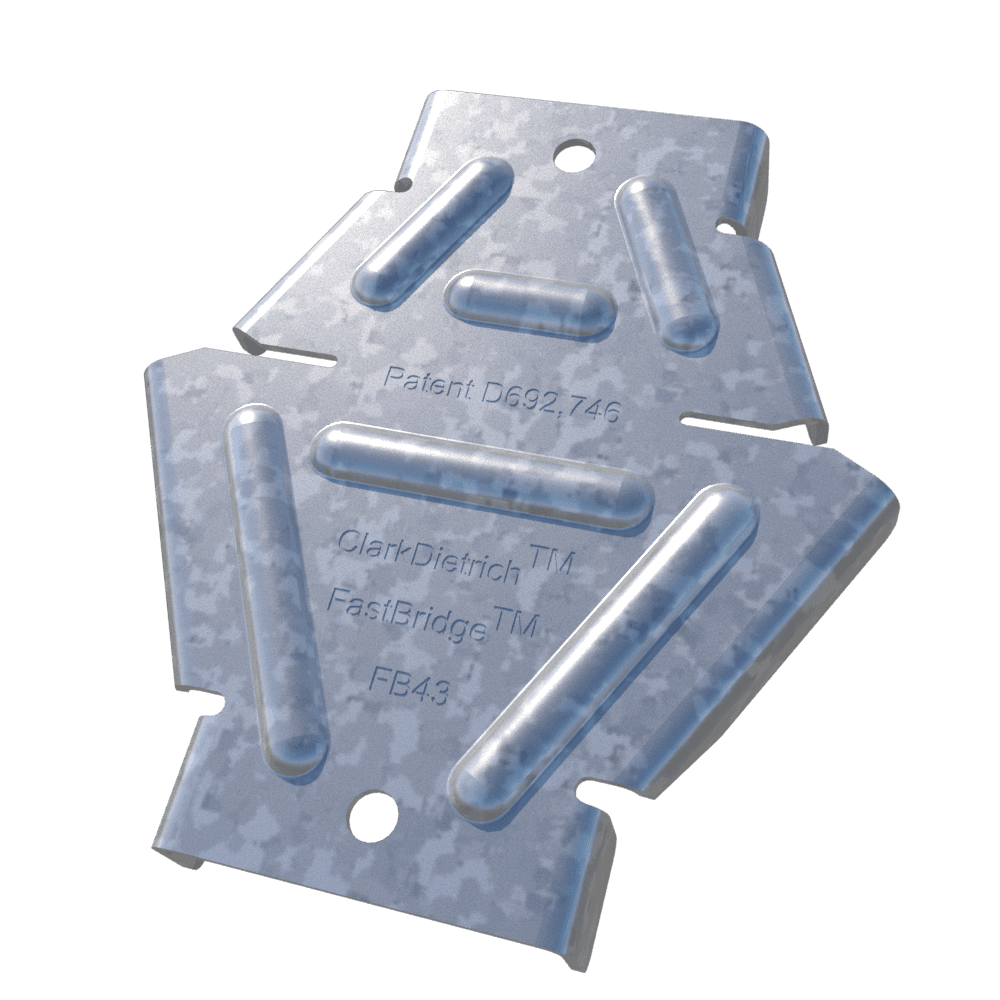

The FastBridge™ clip is a stiffened, G90 galvanized steel clip that's tested and designed to facilitate the rapid, efficient installation of 1-1/2" U-Channel lateral bracing for exterior curtain wall framing, loadbearing walls or interior partitions constructed of structural or non-structural studs.
U.S. Patent No. D692,746 - Canadian Patent No. 152,547
FastBridge™ Clip is available in three versions:
- (FB33) 20-gauge light-duty clip
For use with 20-16 gauge structural studs or ProStud Drywall Studs - (FB43) 18-gauge light-duty clip
For use with 20-16 gauge structural studs - (FB68) 14-gauge heavy-duty clip
For use with 16-12 gauge structural studs
Alternative Products
Product Data & Ordering Information
| Product code | Mils | Gauge | Yield Strength | Design thickness (in) | Min. thickness (in) | Knockout Size | Packaging pcs./bucket |
|---|---|---|---|---|---|---|---|
| FB33 | 33 | 20 STR | 33ksi | 0.0346 | 0.0329 | 1-1/2" | 200 |
| FB43 | 43 | 18 | 33ksi | 0.0451 | 0.0428 | 1-1/2" | 200 |
| FB68 | 68 | 14 | 50ksi | 0.0713 | 0.0677 | 1-1/2" | 200 |
Coating: G90
