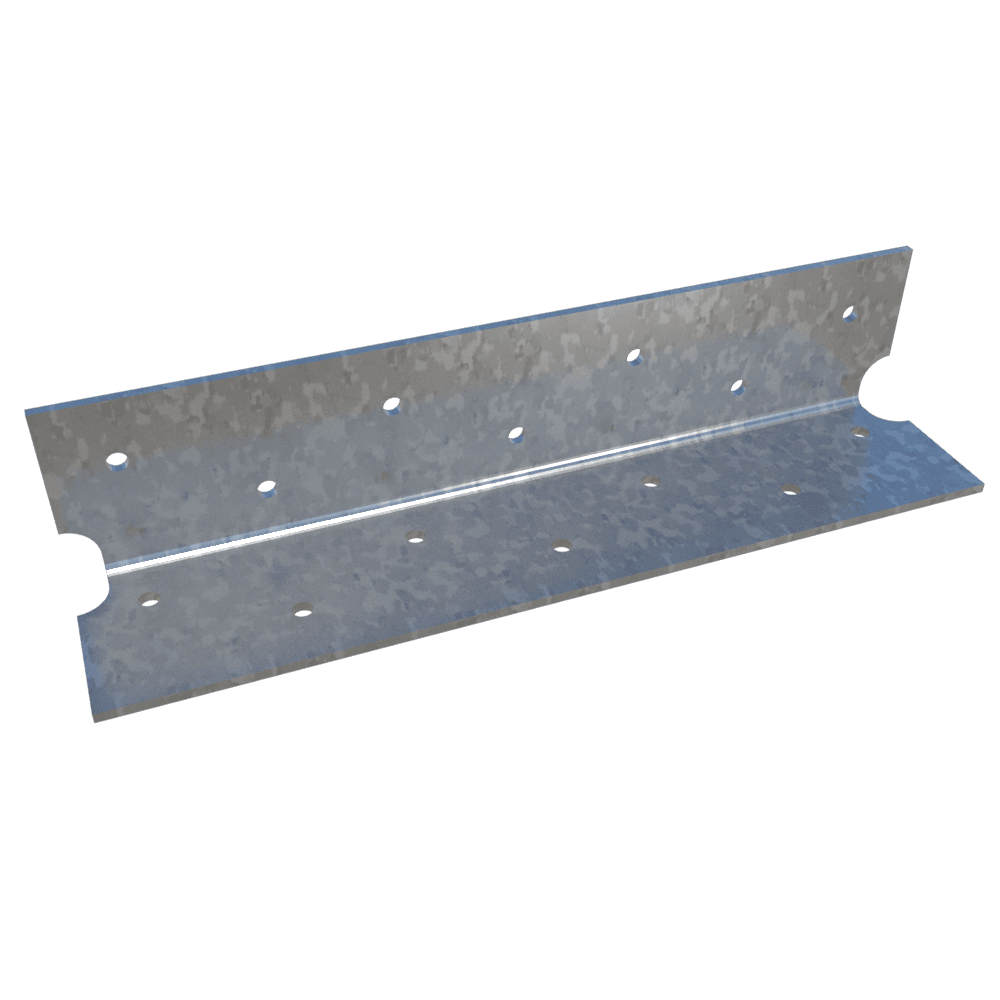

EasyClip™ S-Series™ Support Clip

Are used to secure U-channel (cold-rolled channel) to framing members for lateral bridging and for miscellaneous rigid connections.

This high-performance, multi-use utility clip is ideal for corner reinforcements, stair openings, and numerous support applications.

Quick Actions:

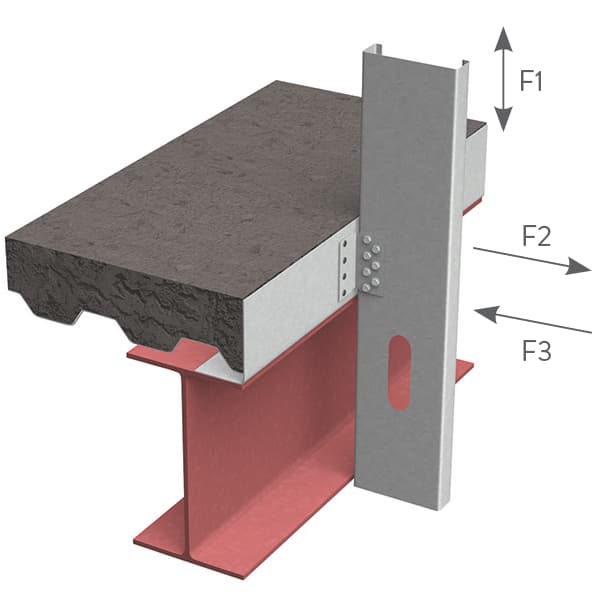

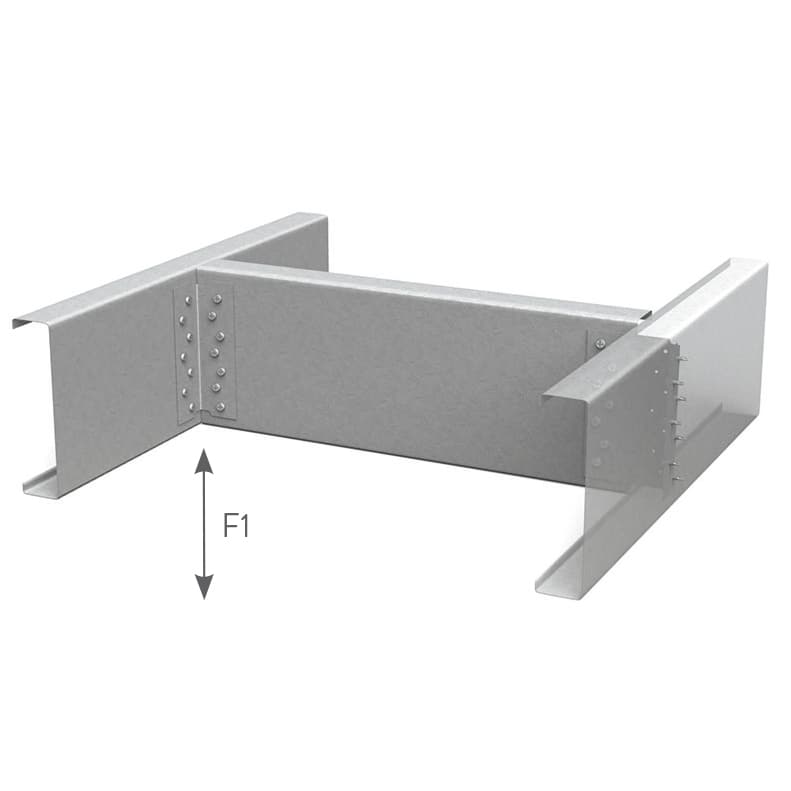

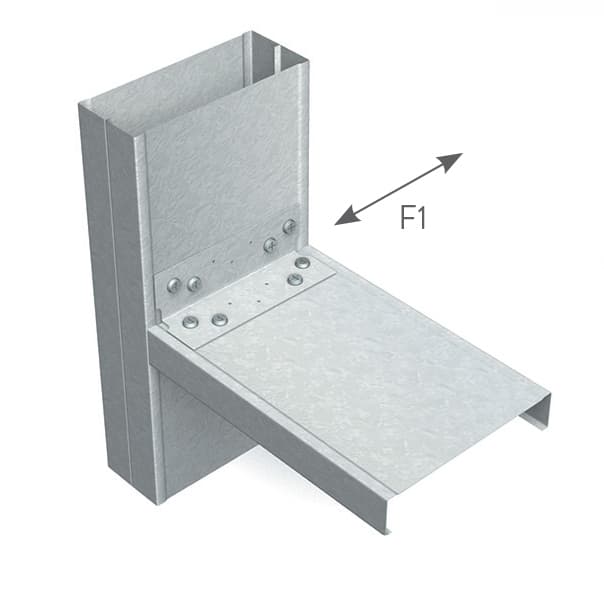

ClarkDietrich EasyClip™ S-Series™ support clips are commonly used for rigid connections in window and door framing, joist, bypass or other miscellaneous connections to secure one framing member to another, or to secure framing members to the structural frame.

Available in a variety of lengths and gauges, EasyClip S-Series clips are prepunched for faster and more accurate fastener placement.

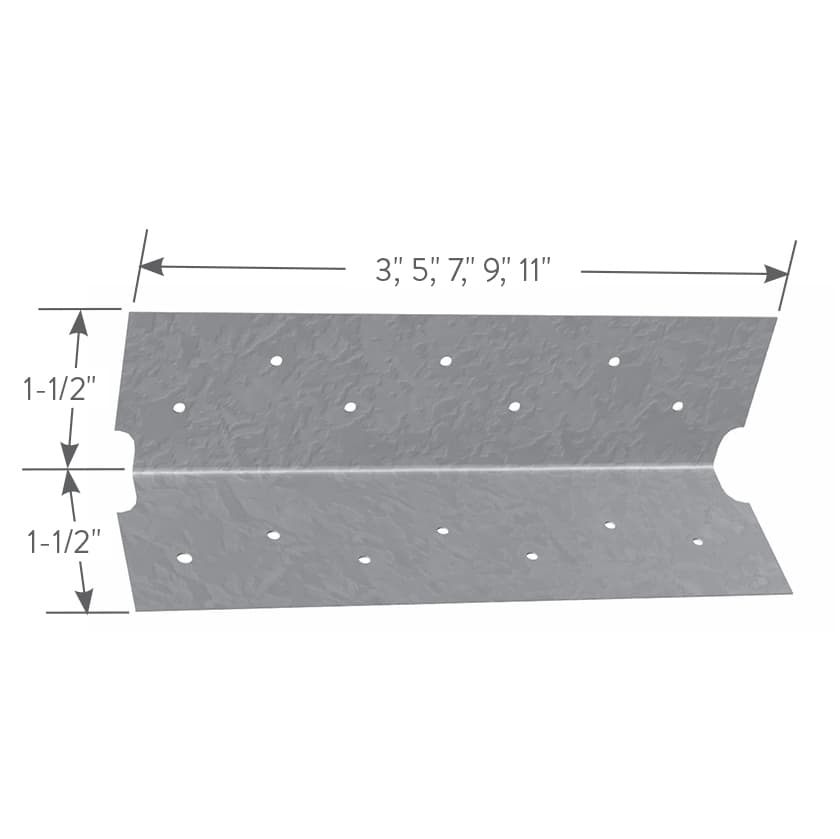

1-1/2" x 1-1/2" legs.
Lengths available in 3", 5", 7", 9" and 11".
Available in 16, 14, and 12 gauge.

Alternative Products:

Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
Technical Support at 888-437-3244 or support@clarkdietrich.com

Product Data & Ordering Information

Product code	Gauge	Mils	Design thickness (in)	Size (in)	Pcs./Bucket
S543	16	54	0.0566	1-1/2 x 1-1/2 x 3	400
S545	16	54	0.0566	1-1/2 x 1-1/2 x 5	200
S547	16	54	0.0566	1-1/2 x 1-1/2 x 7	100
S549	16	54	0.0566	1-1/2 x 1-1/2 x 9	100
S541	16	54	0.0566	1-1/2 x 1-1/2 x 11	100

S683	14	68	0.0713	1-1/2 x 1-1/2 x 3	200
S685	14	68	0.0713	1-1/2 x 1-1/2 x 5	200
S687	14	68	0.0713	1-1/2 x 1-1/2 x 7	100
S689	14	68	0.0713	1-1/2 x 1-1/2 x 9	100
S681	14	68	0.0713	1-1/2 x 1-1/2 x 11	100

S973	12	97	0.1017	1-1/2 x 1-1/2 x 3	200
S975	12	97	0.1017	1-1/2 x 1-1/2 x 5	150
S977	12	97	0.1017	1-1/2 x 1-1/2 x 7	100
S979	12	97	0.1017	1-1/2 x 1-1/2 x 9	80
S971	12	97	0.1017	1-1/2 x 1-1/2 x 11	70

Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating
See submittals for product weights
