SwiftClip™ 150 x 150 LS-Series

SwiftClip™ 1-1/2" x 1-1/2" (LS-Series)

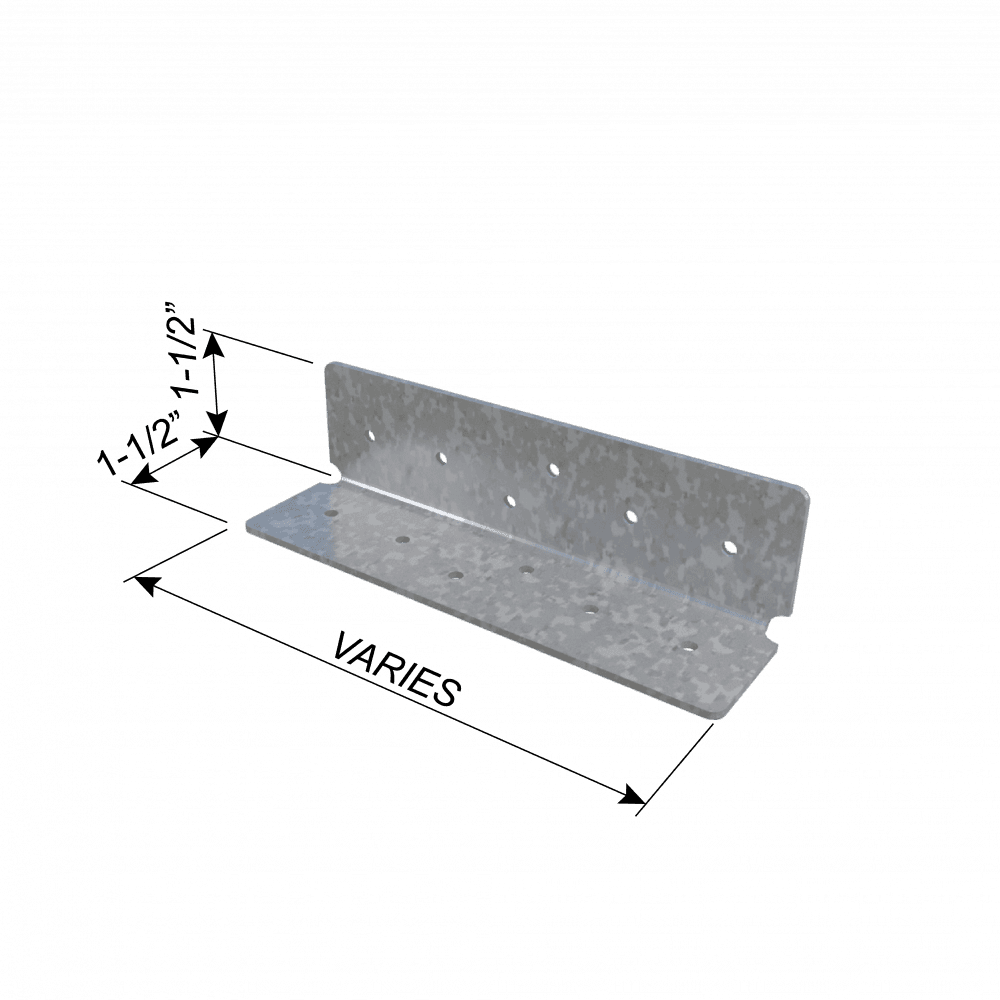

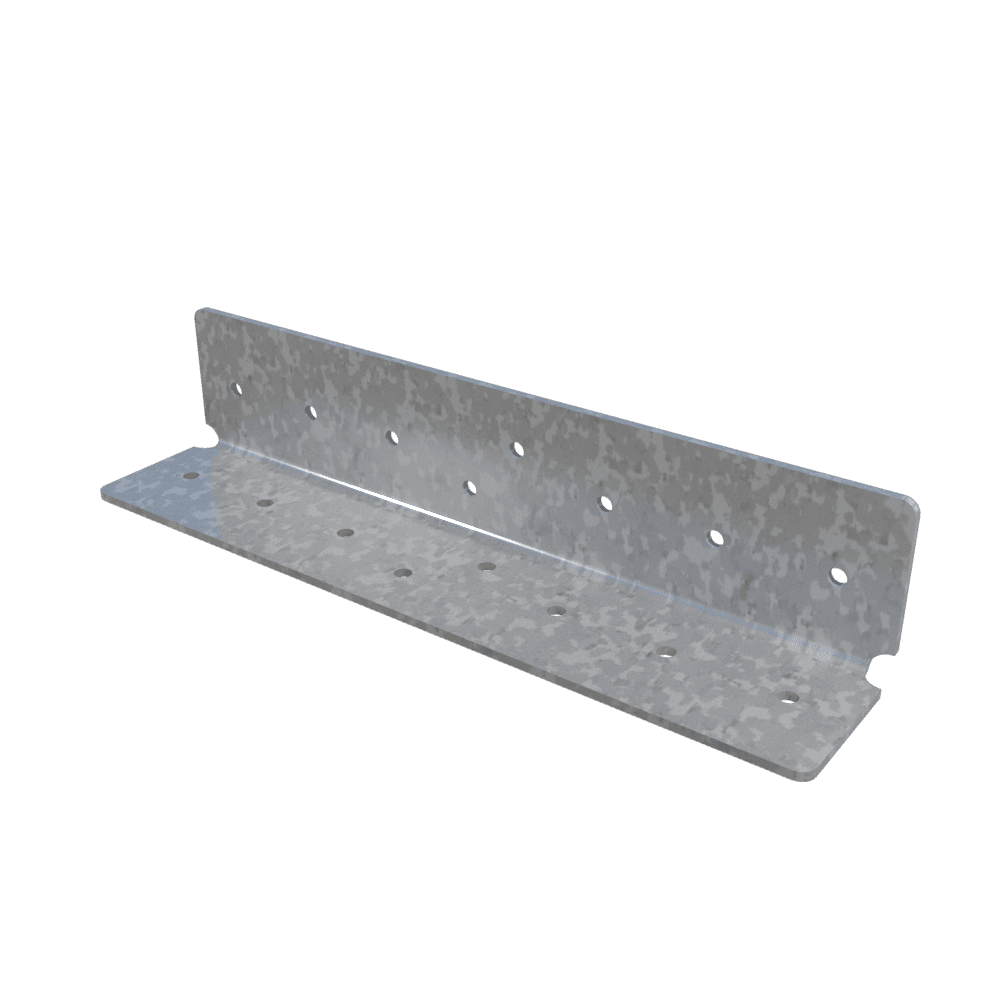

1-1/2" leg x 1-1/2" leg fixed/ridged connection clip.

SwiftClip L-Series support clips are used in multiple construction projects, specifically in conjunction with structural studs and track. These labor time-savers include prepunched holes for quicker screw attachments, and are punched to accommodate for CRC lateral bracing connections.

Quick Actions:

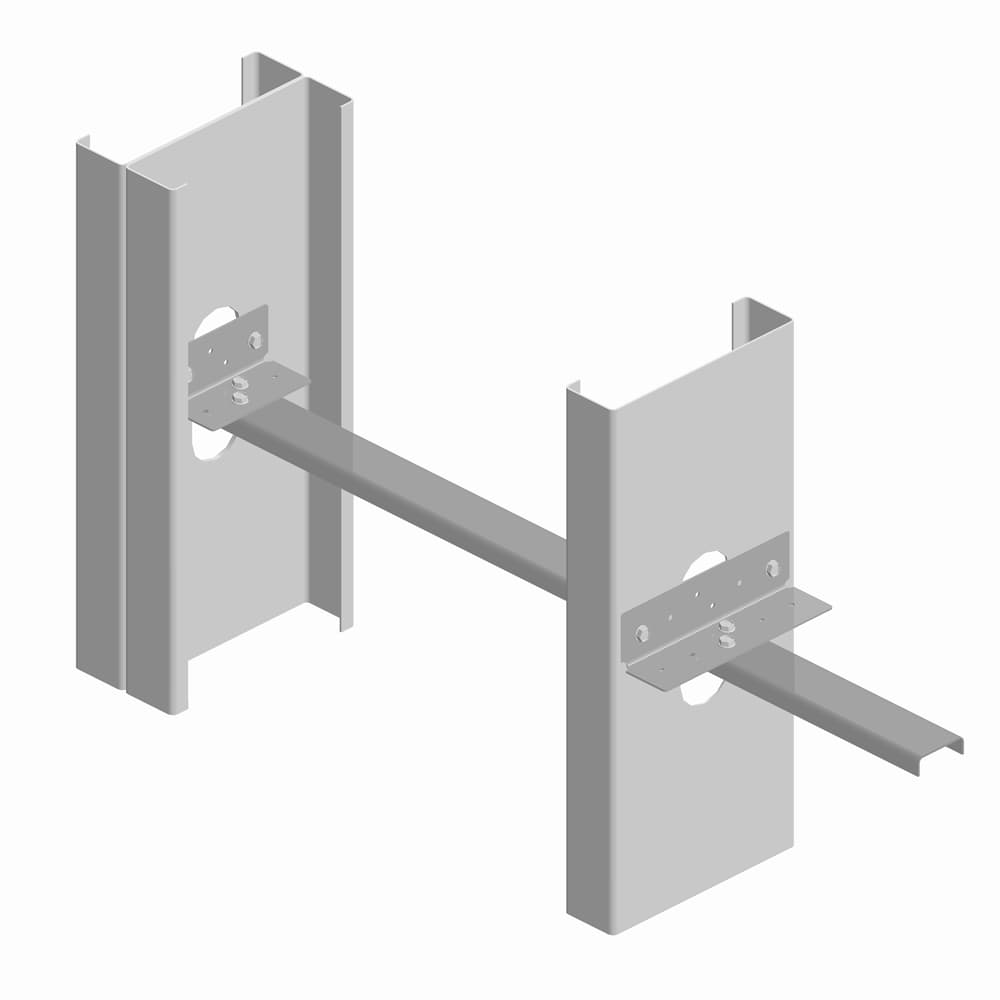

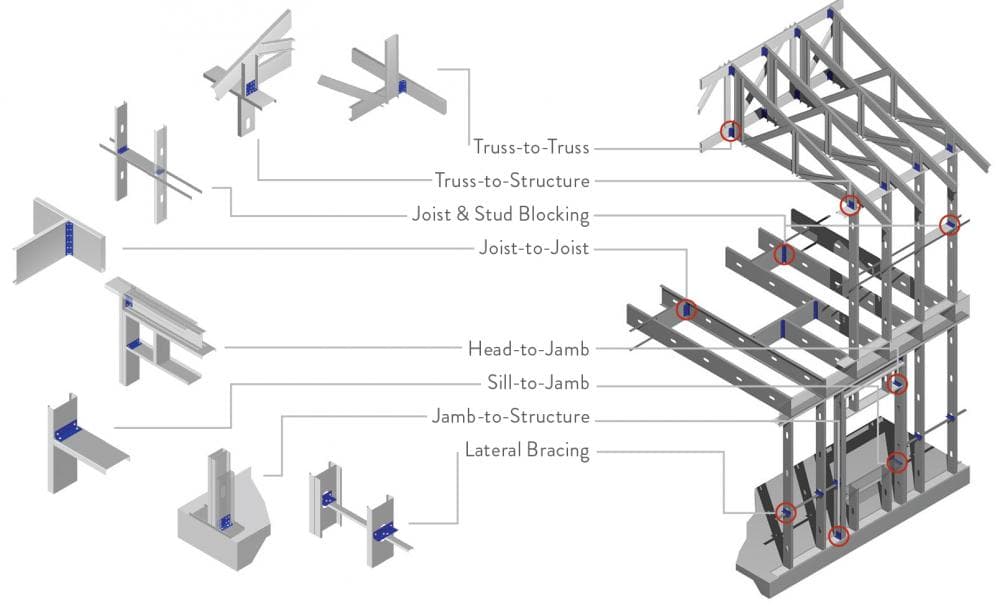

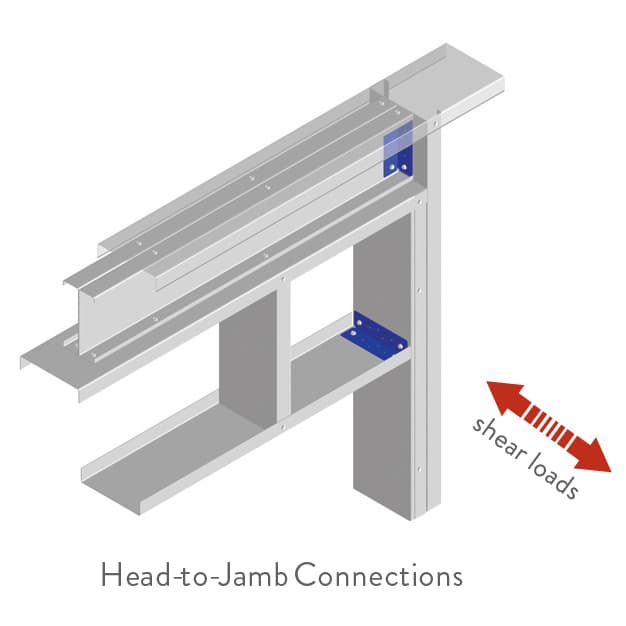

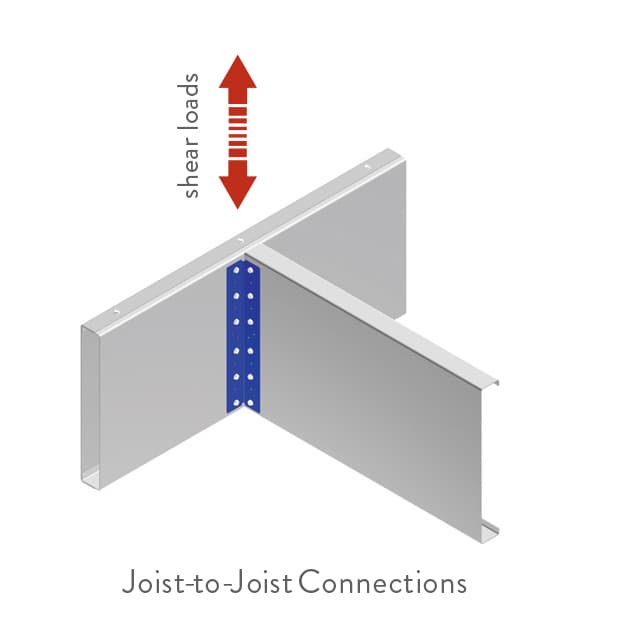

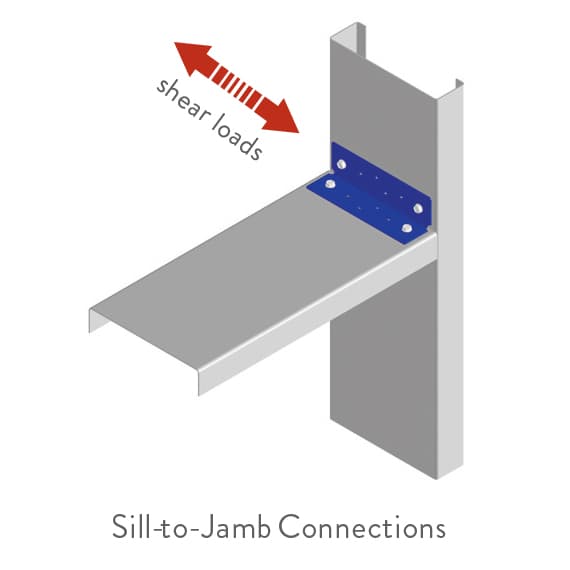

Pre-punched SwiftClips™ are used for multiple construction applications. They are commonly used for lateral bracing CRC connections, header & sill connections and floor joist hangers. The L-shaped clips fit between the stud flanges, so that shorter length clips do not need to be ordered.

Fixed clips should not be used in place of a deflection clip.

Alternative Products:

Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
Technical Support at 888-437-3244 or support@clarkdietrich.com

Product Data & Ordering Information

Product code	Gauge	Mils	Design thickness (in)	Size (in)	Common Application	Pcs/Bucket
LS543	16	54	0.0566	1-1/2 x 1-1/2 x 3-1/4	CRC/Openings	300
LS683	14	68	0.0713		Openings	300
LS973	12	97	0.1017		Openings	200
LS545	16	54	0.0566	1-1/2 x 1-1/2 x 5-1/2	CRC/Openings/Joists	200
LS685	14	68	0.0713		Openings/Joists	200
LS975	12	97	0.1017		Openings/Joists	100
LS547	16	54	0.0566	1-1/2 x 1-1/2 x 7-1/4	CRC/Openings/Joists	150
LS687	14	68	0.0713		Openings/Joists	100
LS977	12	97	0.1017		Openings/Joists	100
LS549	16	54	0.0566	1-1/2 x 1-1/2 x 9-1/4	Joists	100
LS689	14	68	0.0713		Joists	100
LS979	12	97	0.1017		Joists	50
LS541	16	54	0.0566	1-1/2 x 1-1/2 x 11-1/4	Joists	100
LS681	14	68	0.0713		Joists	50
LS971	12	97	0.1017		Joists	50
LS5413	16	54	0.0566	1-1/2 x 1-1/2 x 13-1/4	Joists	50
LS6813	14	68	0.0713		Joists	50
LS9713	12	97	0.1017		Joists	25

Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating
See submittals for product weights
