EasyClip™ U-Series™ Clip Angles

used to Secure U-channel to wall studs for lateral bridging

EasyClip™ U-Series™ Clip Angles are used to secure U-channel to wall studs for lateral bridging or for miscellaneous rigid connections.

Quick Actions:

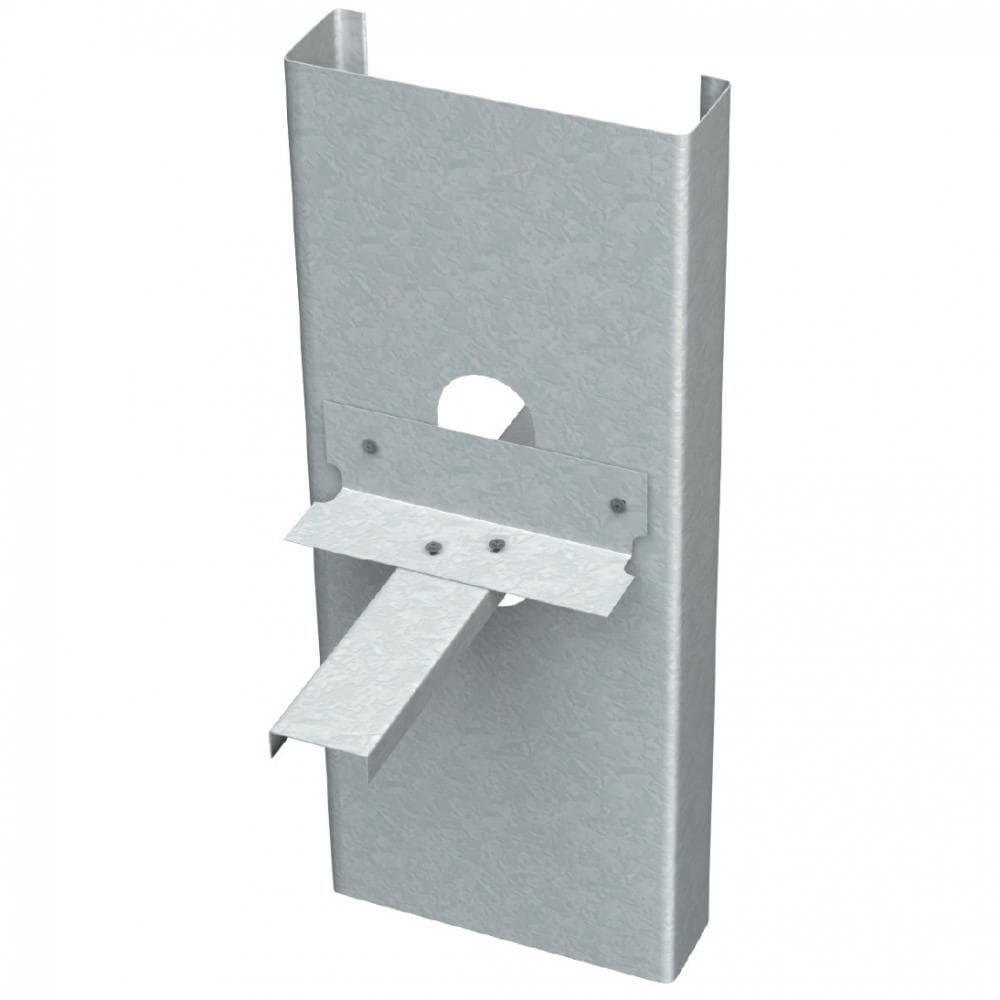

EasyClip™ U-Series™ Clip Angles are used to secure U-channel to wall studs for lateral bridging or for miscellaneous rigid connections. U-channel is passed through the stud knockout and an EasyClip™ U-Series™ clip is screw-attached or welded to provide a rigid connection. EasyClip™ U-Series™ clips are prepunched for faster and more accurate fastener placement. U-Series™ clip angles and U-channel should not be used in bridging applications when the stud width exceeds 8".

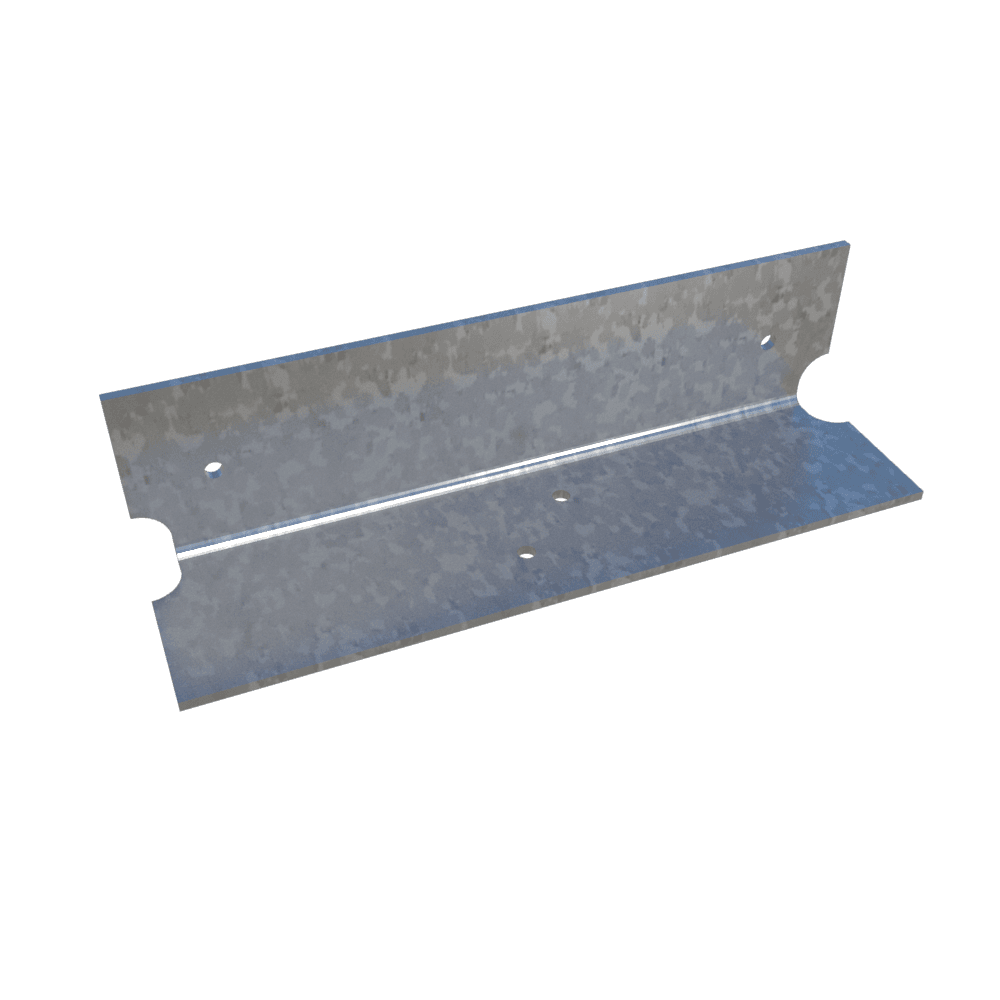

1-1/2" x 1-1/2" legs.

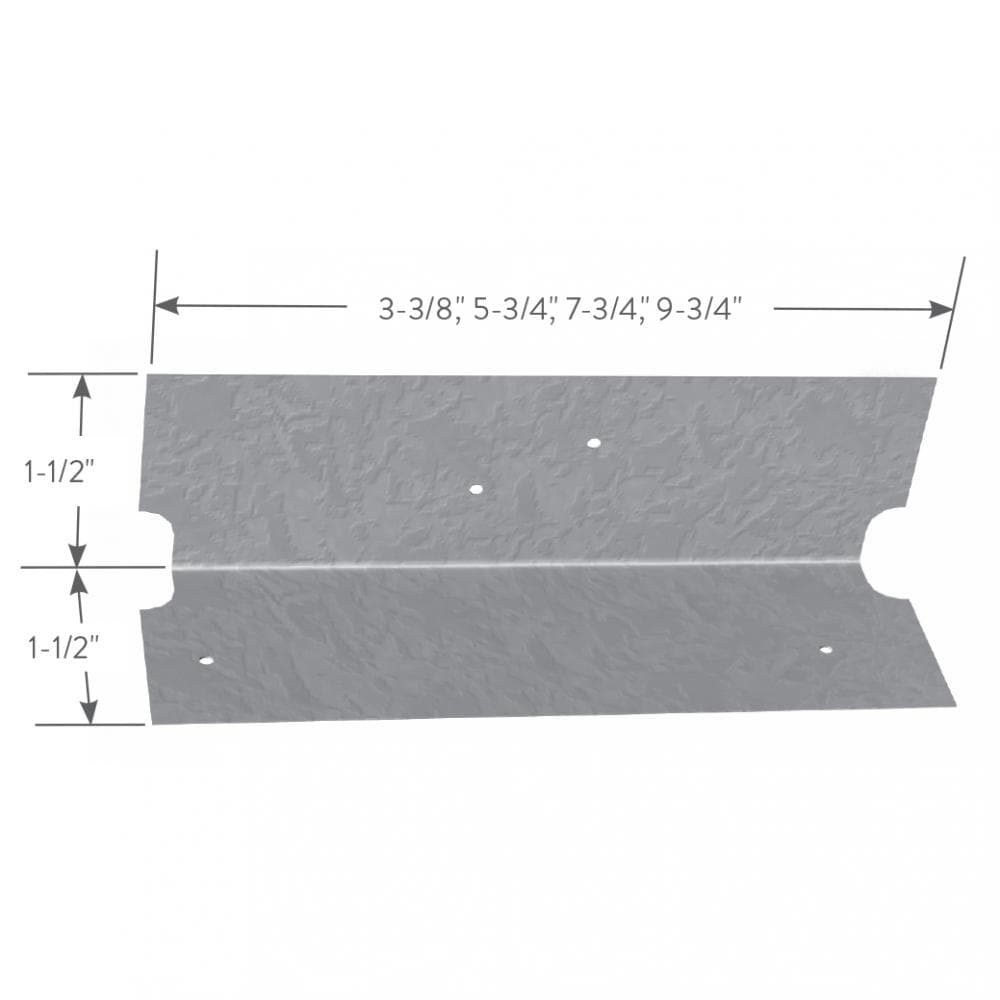

Lengths available in 3-3/8", 5-3/4", 7-3/4" and 9-3/4".
Prepunched for faster and more accurate fastener placement.

Alternative Products:

Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
Technical Support at 888-437-3244 or support@clarkdietrich.com

Product Data & Ordering Information

Product Code	Gauge	Mils	Design Thickness (in)	Size (in)	Pcs./Bucket
U543	16	54	0.0566	1-1/2 x 1-1/2 x 3-3/8	400
U545	16	54	0.0566	1-1/2 x 1-1/2 x 5-3/4	200
U547	16	54	0.0566	1-1/2 x 1-1/2 x 7-3/4	100
U549	16	54	0.0566	1-1/2 x 1-1/2 x 9-3/4	100

U683	14	68	0.0713	1-1/2 x 1-1/2 x 3-3/8	200
U685	14	68	0.0713	1-1/2 x 1-1/2 x 5-3/4	170
U687	14	68	0.0713	1-1/2 x 1-1/2 x 7-3/4	100
U689	14	68	0.0713	1-1/2 x 1-1/2 x 9-3/4	100

U973	12	97	0.1017	1-1/2 x 1-1/2 x 3-3/8	200
U975	12	97	0.1017	1-1/2 x 1-1/2 x 5-3/4	130
U977	12	97	0.1017	1-1/2 x 1-1/2 x 7-3/4	100
U979	12	97	0.1017	1-1/2 x 1-1/2 x 9-3/4	80

Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating
See submittals for product weights
