Spazzer® 5400 Spacing and Bridging Bar
Facilitates the rapid erection of structural wall framing

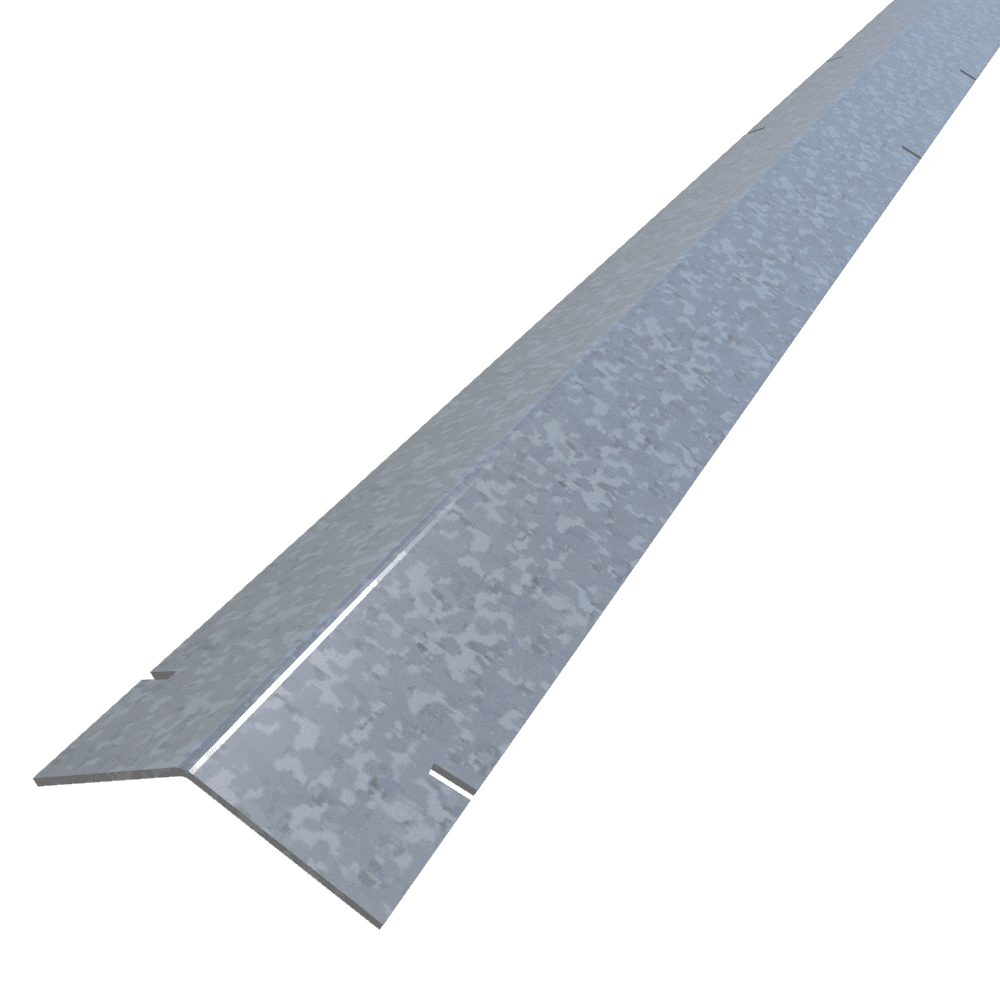

ClarkDietrich TradeReady® Spazzer® 5400 spacer bar is a pre-notched, 16-gauge or 18-gauge, galvanized steel spacer and bridging bar, engineered to facilitate the rapid, efficient erection of exterior curtain wall framing, loadbearing walls and high interior partitions constructed of structural studs.
Quick Actions:
Until now, most bridging in steel studs was accomplished with cold-rolled channel that required bridging clips or welding.

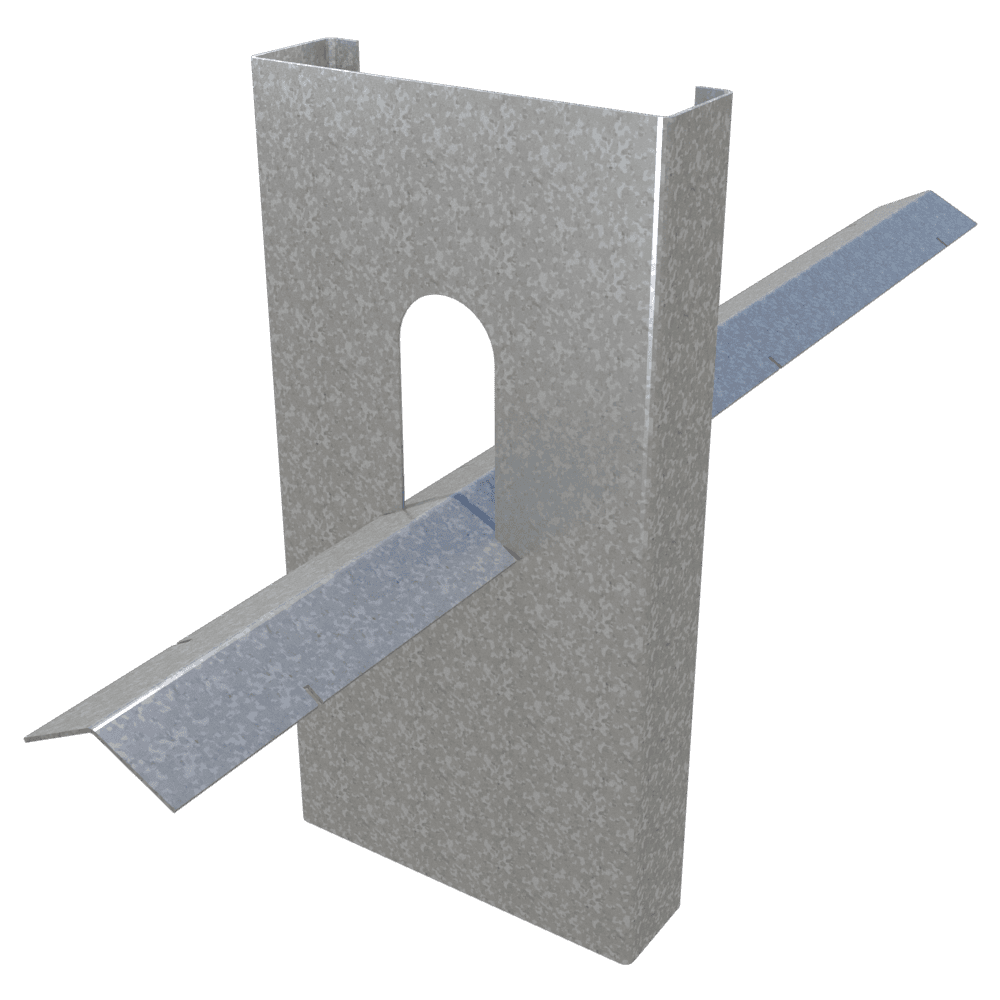

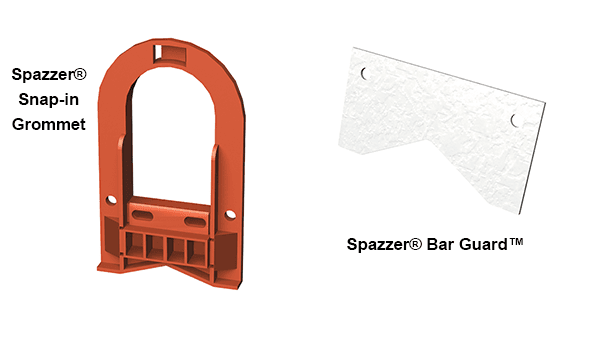

The Spazzer bridging bar features proprietary pre-punched slots that enable faster installation by eliminating the need for a separate clip angle while providing excellent torsional and lateral stud restraint. The Spazzer Bar Guard™ , Spazzer Bar Fly Clip (SFLY) or the Spazzer Snap-In Grommet should be used to secure the Spazzer bar when used in load-bearing applications.
- Up to 90% faster install when used in a non-load bearing application
- Prenotched at 12", 16" and 24" intervals, so no layout is needed.
- Eliminates clip angles and the labor required to install them.
Alternative Products:
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
Product Data & Ordering Information
| Product code | Gauge | Mils | Design thickness (in) | Size (in) | Packaging Pcs./Carton | Packaging Pcs./Skid |
|---|---|---|---|---|---|---|

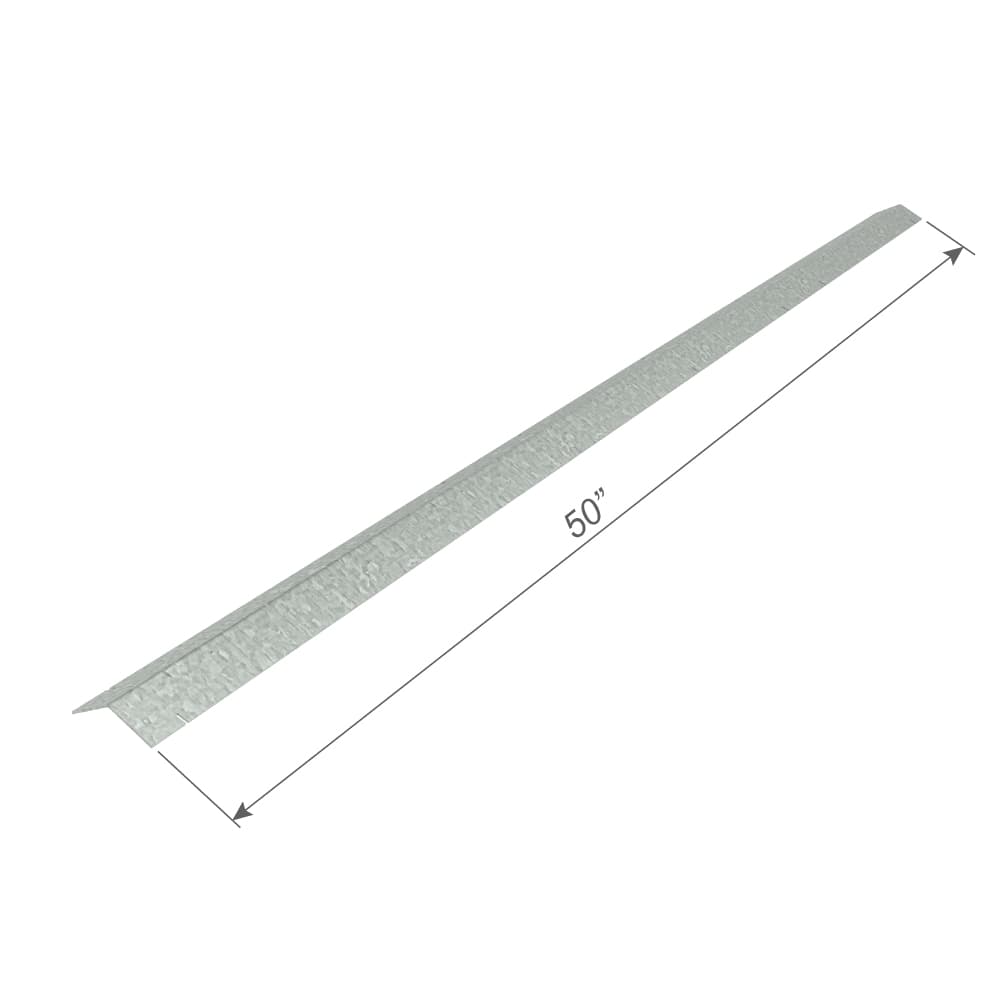

| SPZS-54 | 16 | 54 | 0.0566 | 1-1/4 x 1-1/4 x 50 | 20 | 680 |
| SPZS-43 | 18 | 43 | 0.0451 | 1-1/4 x 1-1/4 x 50 | 20 | 680 |
Coating: CP60 per ASTM C955
Yield Strength: 50ksi
