Spazzer® 9200 Spacing and Bridging Bar (SPZD)
Facilitates the rapid erection of interior, nonload-bearing studs

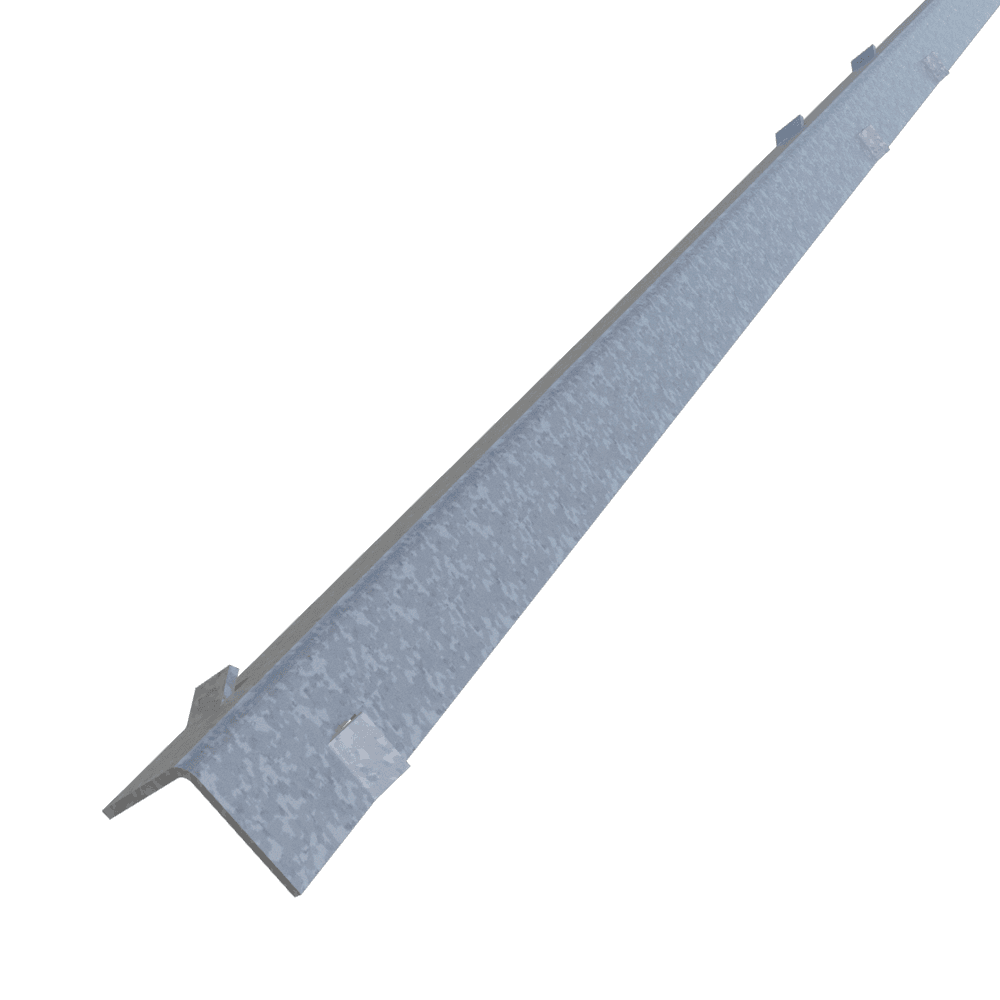

Prenotched bridging and spacing bar.
Quick Actions:

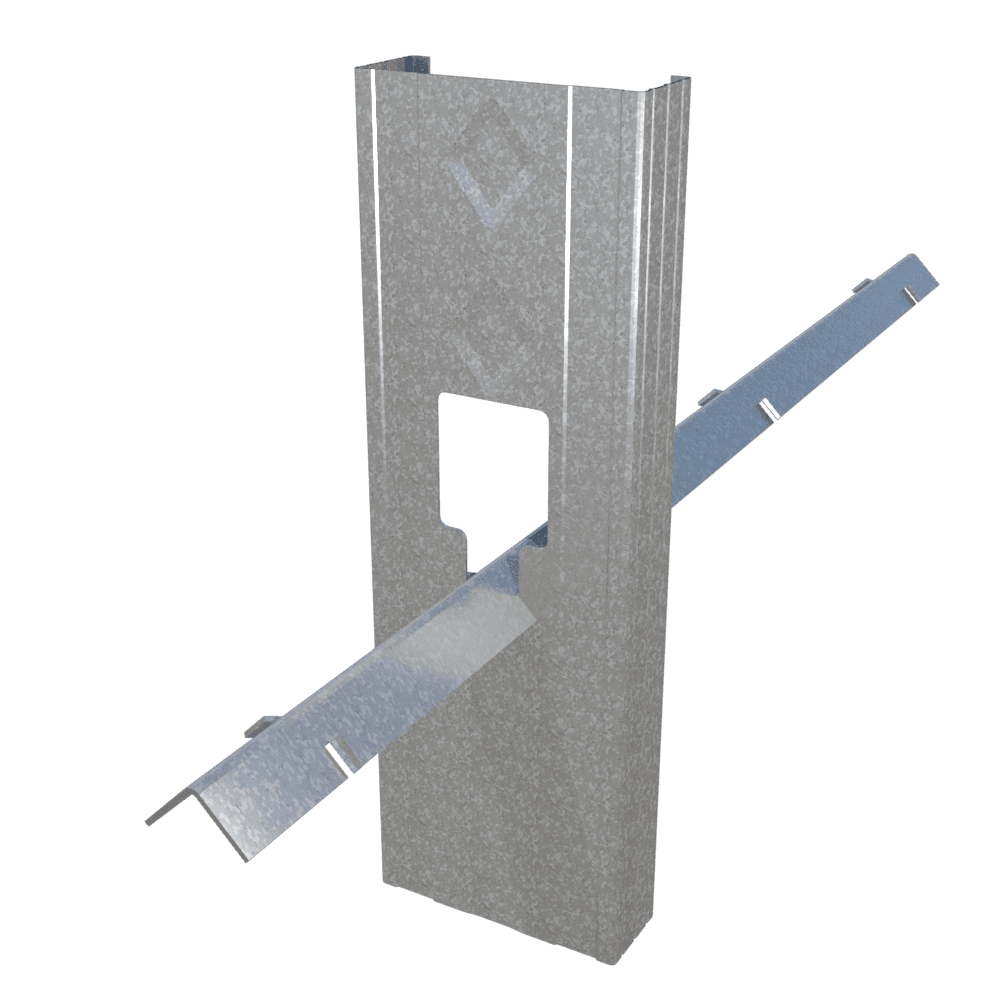

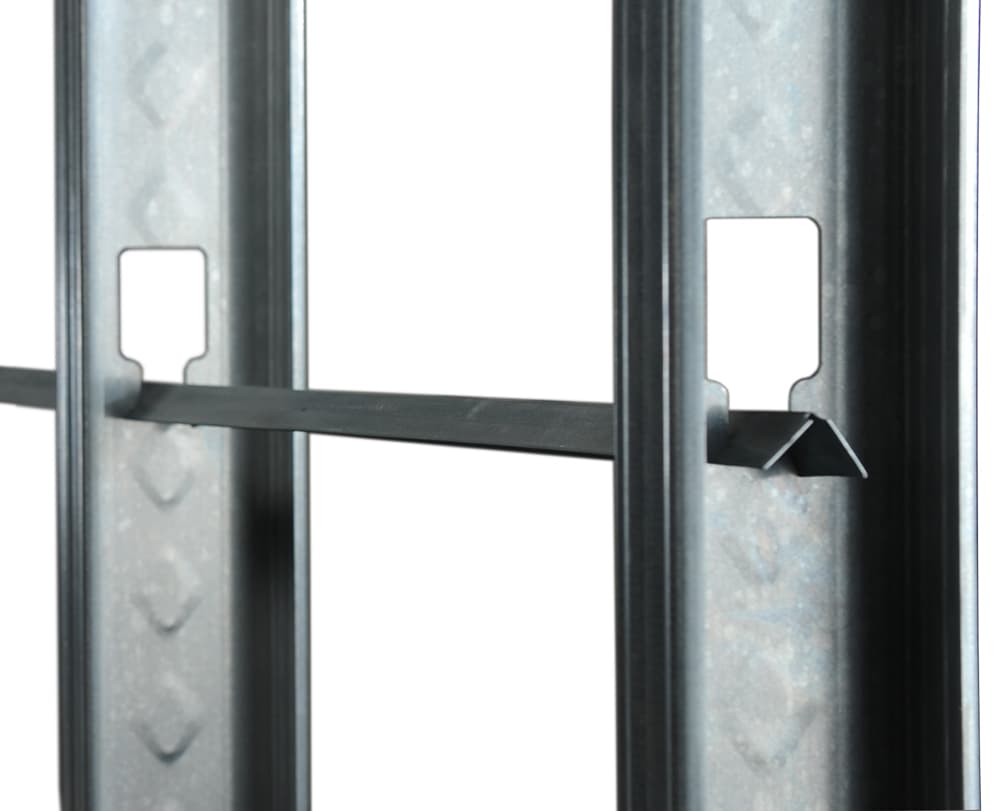

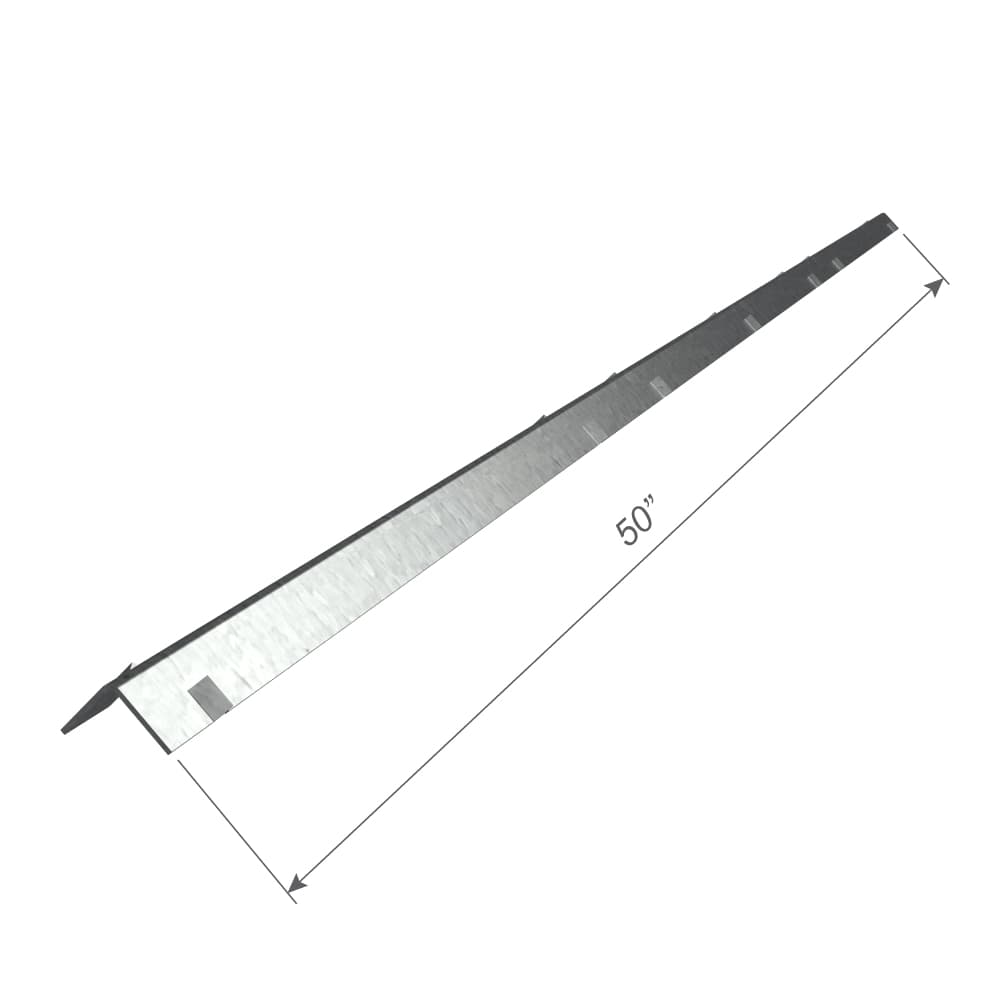

The Spazzer 9200 Spacing Bar is a prenotched bridging and spacing bar that facilitates the rapid erection of interior, nonload-bearing, nonstructural studs into a rigid, accurately laid out gridwork that has excellent resistance to stud rotation and displacement. Spazzer 9200 bar is a 33mils (20ga) bar that is 50" long and prenotched to hold studs rigidly on 16" or 24" centers. The slots have been pre-engineered to hold studs in place by utilizing “shear” to bridge studs into a rigid gridwork.
Spazzer 9200 system fits in non-structural studs 2-1/2” and wider.
- Up to 80% faster install.
- Eliminates stud spacing layout.
- Eliminates clip angles and the labor required to install them.
Alternative Products:
- U-Channel with EasyClip™ U-Series™ Clip Angle
- U-Channel with SwiftClip™ LS-Series™ Support Clip
- Spazzer® 5400 Spacer Bar
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
Product Data & Ordering Information
| Product code | Gauge | Mils | Design thickness (in) | Size (in) | Packaging Pcs./Ctn. | Packaging Pcs./Skid |
|---|---|---|---|---|---|---|
| SPZD | 20 STR | 33 | 0.0346 | 7/8 x 7/8 x 50 | 25 | 1350 |
Coating: G40 per ASTM C645
Yield Strength: 33ksi
