SwiftClip™ 150 x 300 LE-Series
SwiftClip™ 1-1/2" x 3" (LE-Series)

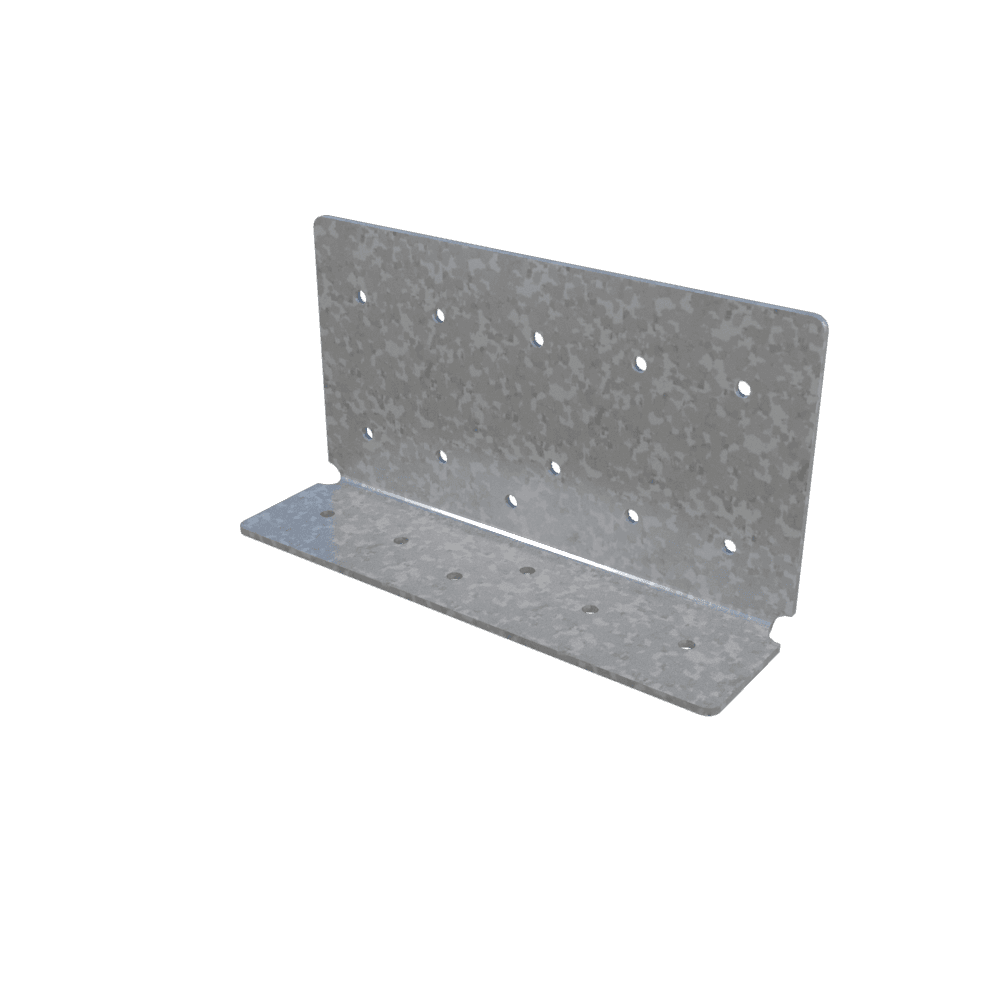

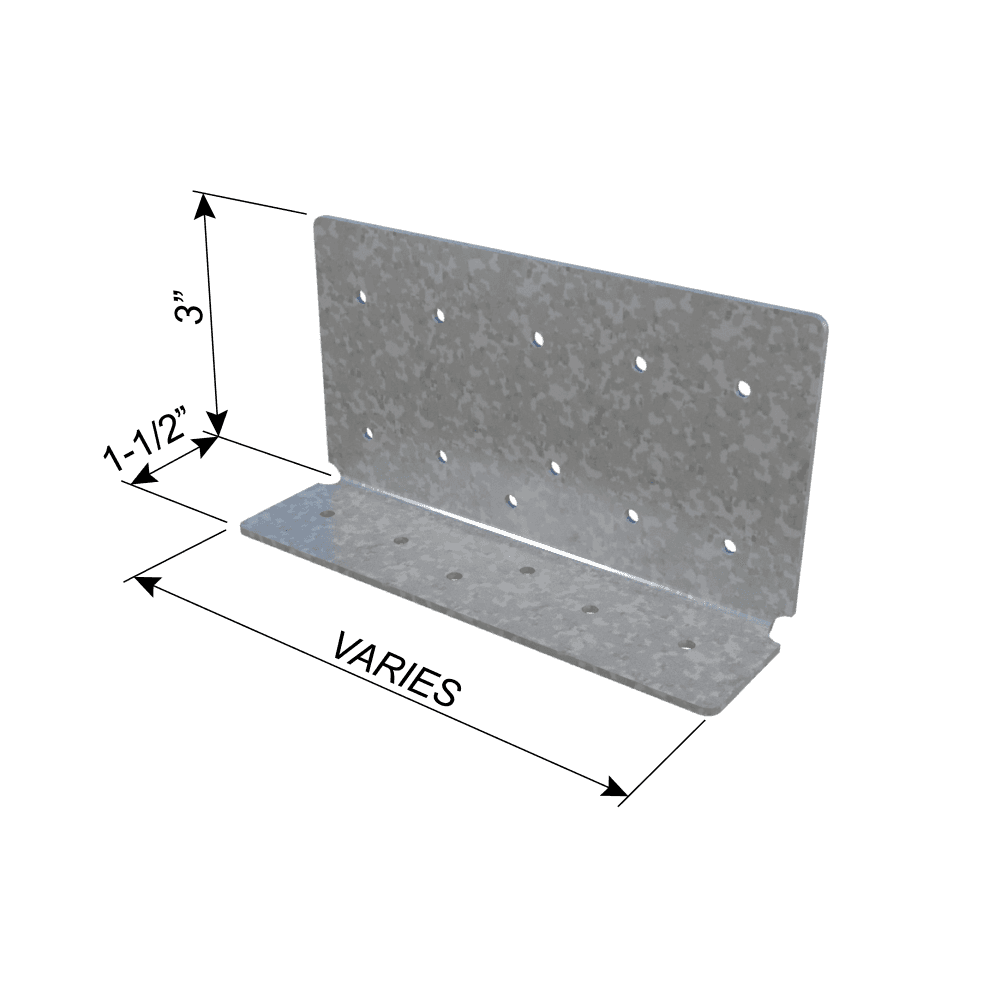

1-1/2” leg x 3” leg fixed/rigid connection clip
SwiftClip support clips are used in multiple construction projects, specifically in conjunction with structural studs and track. These labor time-savers include prepunched holes for quicker screw attachments, and are punched to accommodate for CRC lateral bracing connections.
Quick Actions:
Pre-punched SwiftClips™ are used for multiple construction applications. 1-1/2" leg x 3" leg clips are commonly used for floor joist hangers and truss connections. Fixed clips should not be used in place of a deflection clip.
Alternative Products:
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
Product Data & Ordering Information
| Product code | Gauge | Mils | Design thickness (in) | Size (in) | Common application | Pcs/Bucket |
|---|---|---|---|---|---|---|
| LE543 | 16 | 54 | 0.0566 | 1-1/2 x 3 x 3-1/4 | Fixed/Joists/Truss | 100 |
| LE683 | 14 | 68 | 0.0713 | Fixed/Joists/Truss | 100 | |
| LE973 | 12 | 97 | 0.1017 | Fixed/Joists/Truss | 50 | |
| LE545 | 16 | 54 | 0.0566 | 1-1/2 x 3 x 5-1/2 | Fixed/Joists/Truss | 100 |
| LE685 | 14 | 68 | 0.0713 | Fixed/Joists/Truss | 100 | |
| LE975 | 12 | 97 | 0.1017 | Fixed/Joists/Truss | 50 | |
| LE547 | 16 | 54 | 0.0566 | 1-1/2 x 3 x 7-1/4 | Fixed/Joists/Truss | 100 |
| LE687 | 14 | 68 | 0.0713 | Fixed/Joists/Truss | 50 | |
| LE977 | 12 | 97 | 0.1017 | Fixed/Joists/Truss | 50 |
Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating
See submittals for product weights
