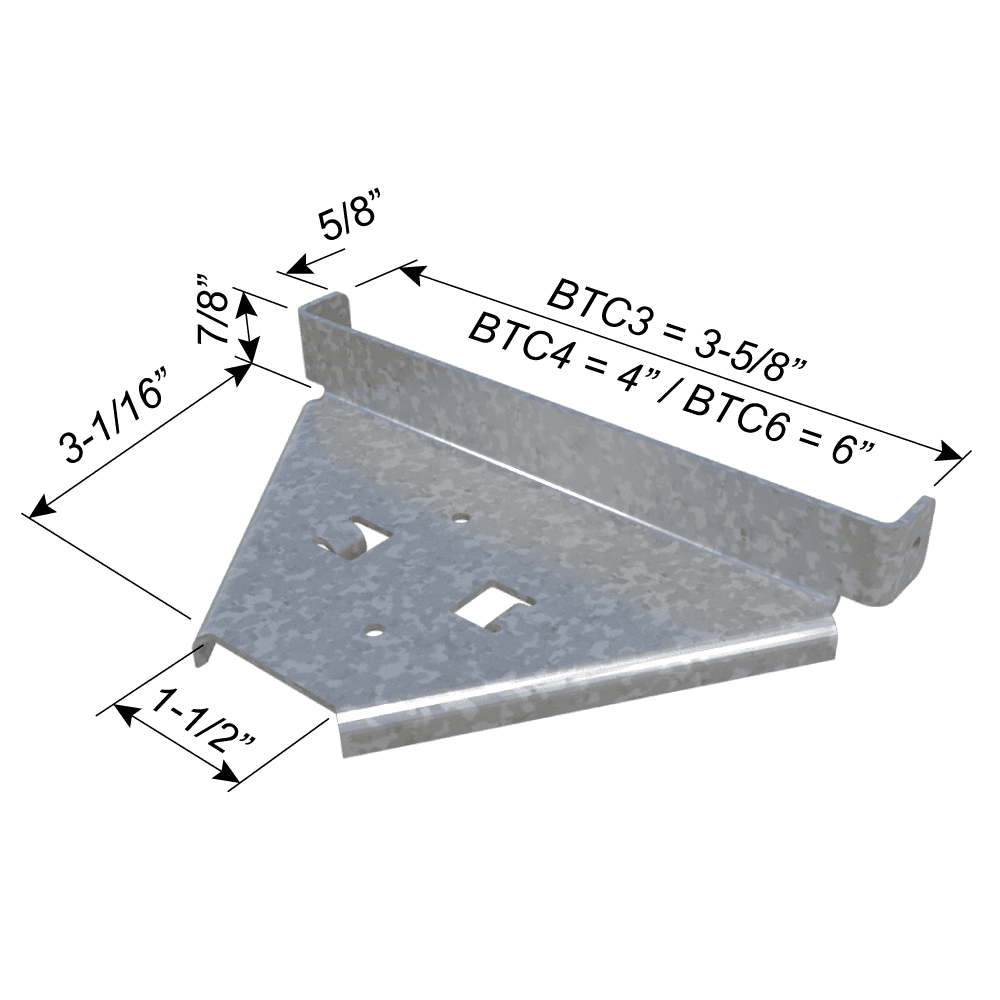

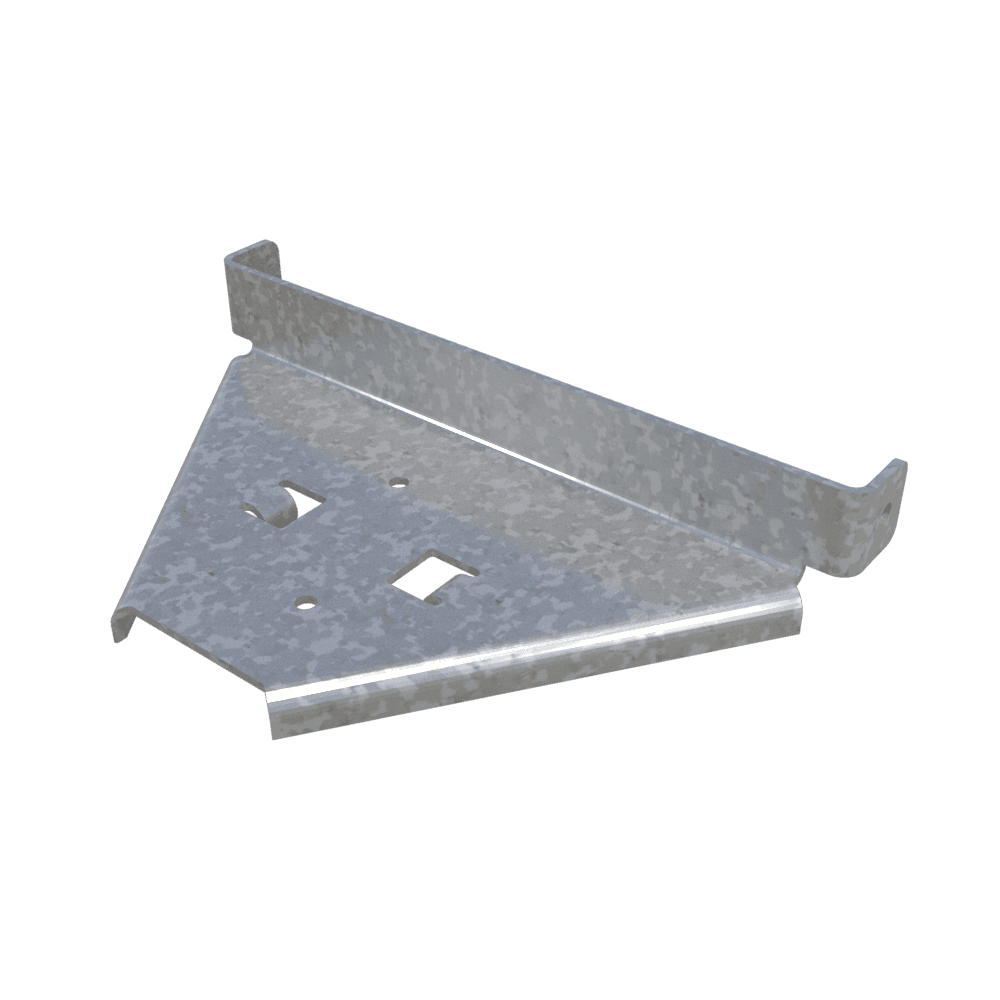

Bridging Termination Clip (BTC3,BTC4,BTC6)New
U-Channel Lateral Bracing Clip
The ClarkDietrich Bridging Termination clip is used to secure U-Channel or Cold Rolled Channel (CRC) to structural wall studs when used in load-bearing or curtain wall applications (loads for structural stud gauges of 20, 18, 16, 14 & 12).
Quick Actions:
The BTC’s unique design allows for quicker installation in end-of-wall conditions.

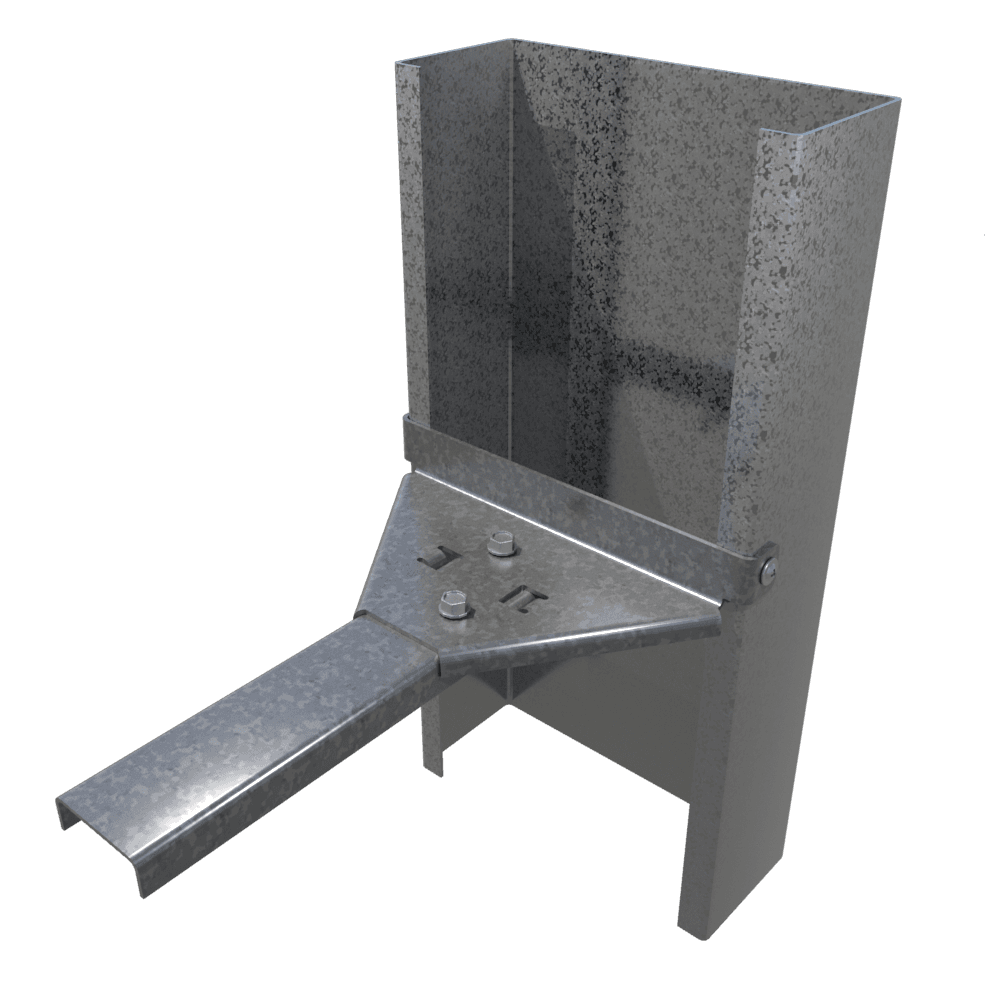

The BTC is a stiffened, G90 galvanized steel clip that's tested and designed to facilitate rapid, efficient installation of 1-1/2" U-Channel lateral bracing for exterior curtain wall framing, load-bearing walls or high interior partitions constructed of structural studs.
BTC clips are fastened using #8 self-drilling screws; 2 screws between clip and U-channel and 2 screws between clip and stud flanges. The BTC clips are designed to be used with 3-5/8”, 4” or 6” structural studs only.
U.S. Patent No. 10,851,539 B2
Alternative Products
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
Product Data & Ordering Information
For 3-5/8" Studs:
| Product code | Mils | Gauge | Design thickness (in) | Packaging pcs./bucket |
|---|---|---|---|---|
| BTC3-43 | 43 | 18 | 0.0451 | 100 |
| BTC3-54 | 54 | 16 | 0.0566 | 100 |
| BTC3-68 | 68 | 14 | 0.0713 | 100 |
For 4" Studs:
| Product code | Mils | Gauge | Design thickness (in) | Packaging pcs./bucket |
|---|---|---|---|---|
| BTC4-43 | 43 | 18 | 0.0451 | 100 |
| BTC4-54 | 54 | 16 | 0.0566 | 100 |
| BTC4-68 | 68 | 14 | 0.0713 | 100 |
For 6" Studs:
| Product code | Mils | Gauge | Design thickness (in) | Packaging pcs./bucket |
|---|---|---|---|---|
| BTC6-43 | 43 | 18 | 0.0451 | 50 |
| BTC6-54 | 54 | 16 | 0.0566 | 50 |
| BTC6-68 | 68 | 14 | 0.0713 | 50 |
Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating
See submittals for product weights
