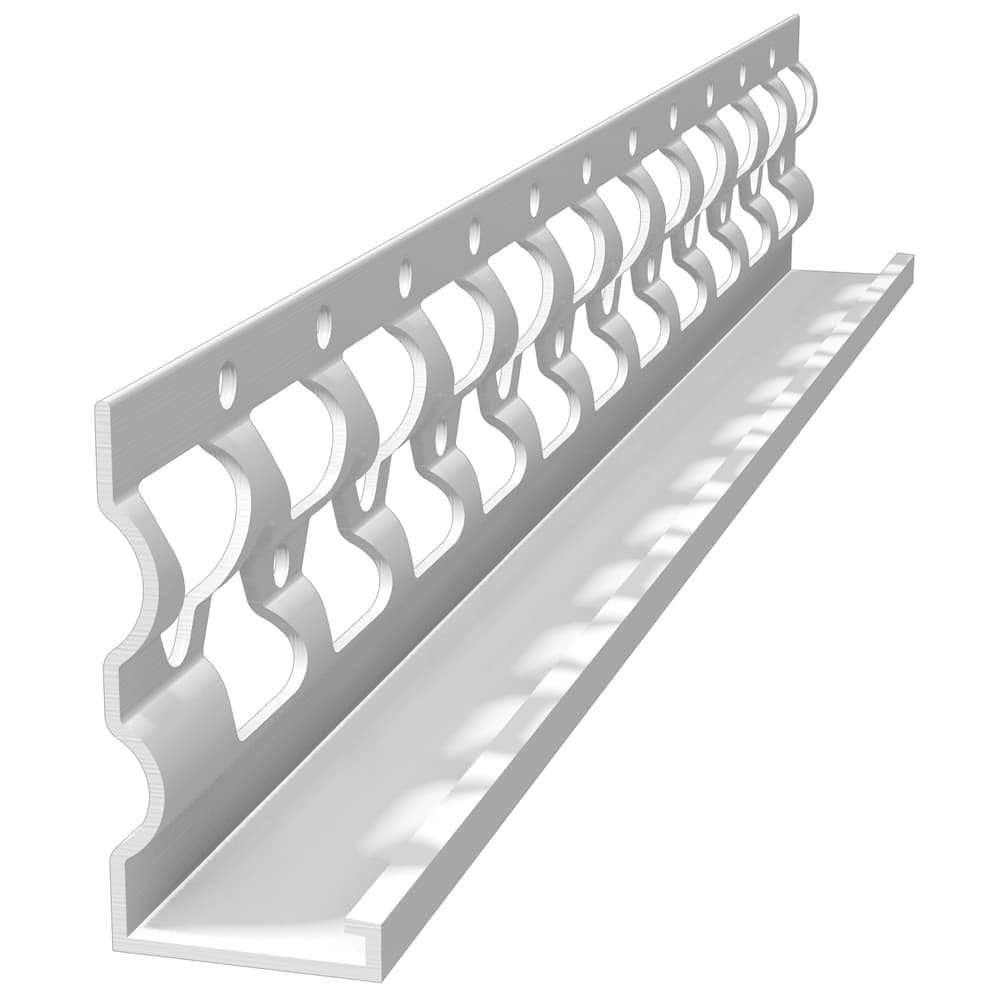

E-Flange™ Casing BeadNew
Designed to terminate stucco and plaster against doors, windows and dissimilar materials
Improves stucco embedment by more than 80% versus standard "flat flange" products.
Quick Actions:
Designed to terminate stucco and plaster against doors, windows and dissimilar materials.

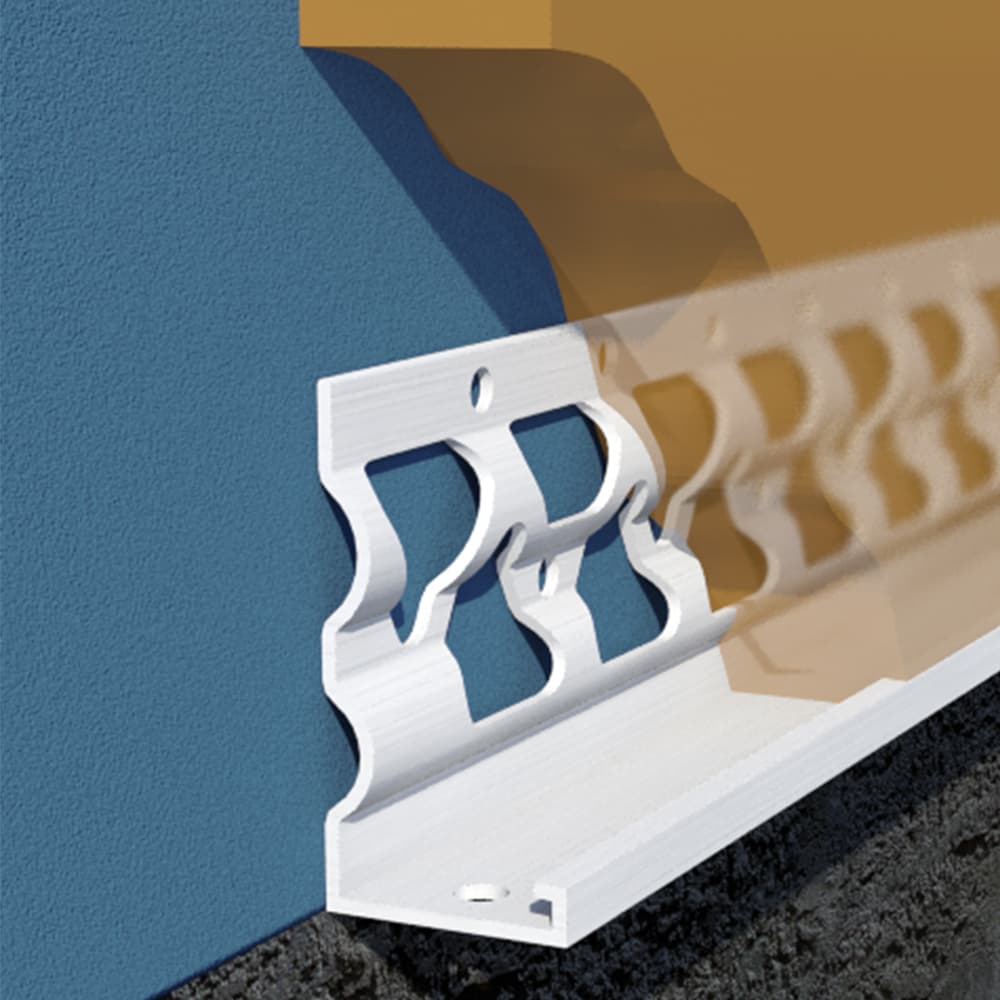

The E-Flange profile provides 80% more stucco embedment than traditional flat flange profiles. E-Flange allows for more stucco mix to flow through the flange, providing for more thorough and consistent embedment. The unique E-Flange shape also allows for quick and easy tying of lath and other accessories.
Alternative Products:
- For a higher ground thicknesses use: E-Flange™ Bandmaker™ Casing Bead
Product Data & Ordering Information

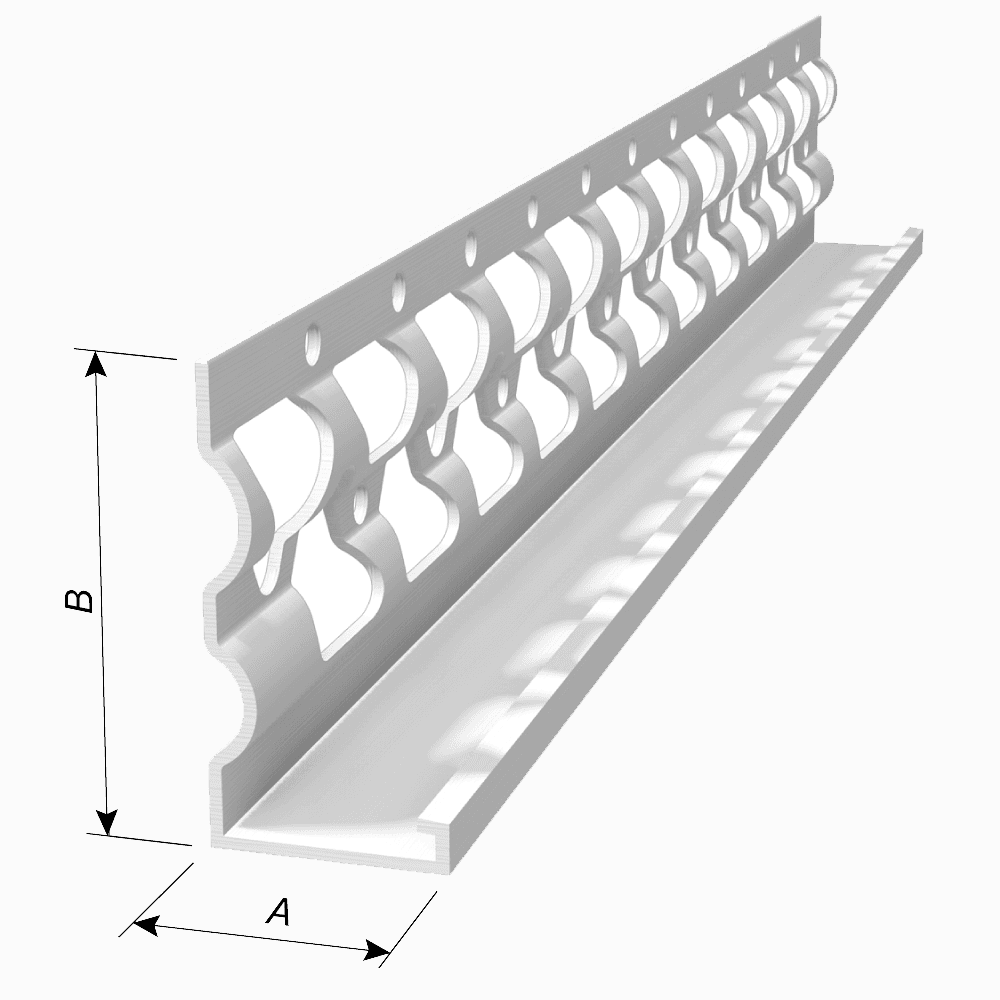

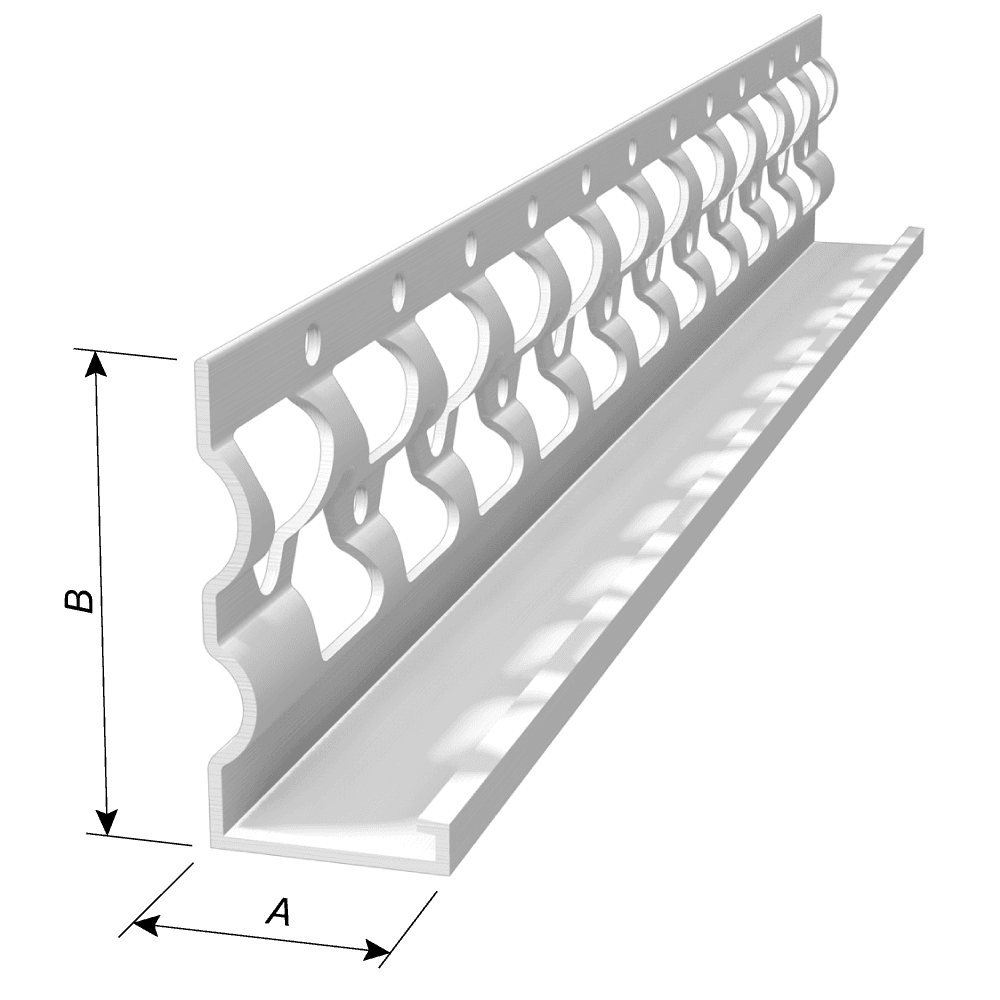

| Product code | Ground (A) | Flange (B) | Pcs./Box |
|---|---|---|---|
| 6658EF | 5/8" | 1-3/4" | 75 |
| 6675EF | 3/4" | 75 | |
| 6678EF | 7/8" | 75 | |
| 66100EF | 1" | 75 |
- Available with weep holes.
- Lengths: Custom lengths upon request.
- Colors: Available in white (tan/brown/gray/black available upon request)
- For Casing Beads w/ grounds less than 5/8", the Flat Flange Profile - Casing Bead / Plaster Stop (1/4", 3/8" & 1/2" Ground) is available
- U.S. Patent Number D842,496
