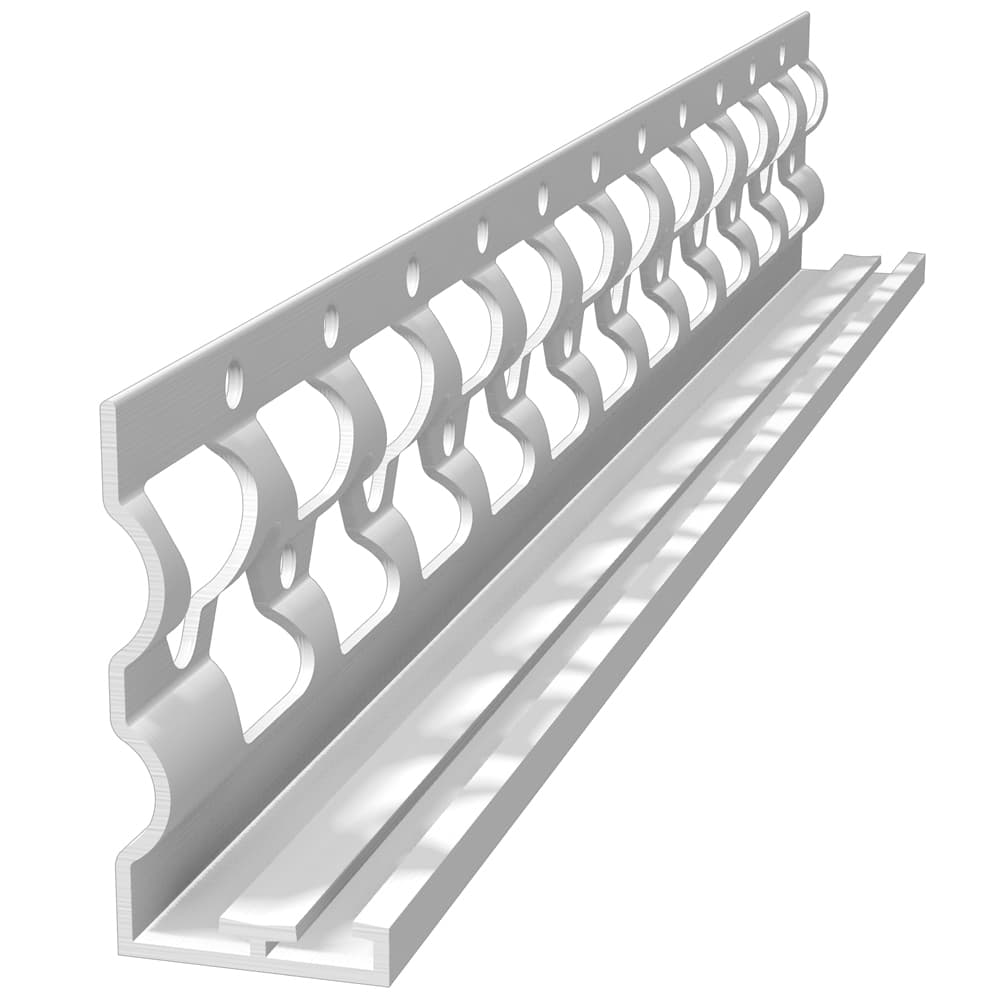

E-Flange™ Bandmaker™ Casing Bead
PVC CASING BEAD WITH EMBEDDABLE FLANGE DESIGN

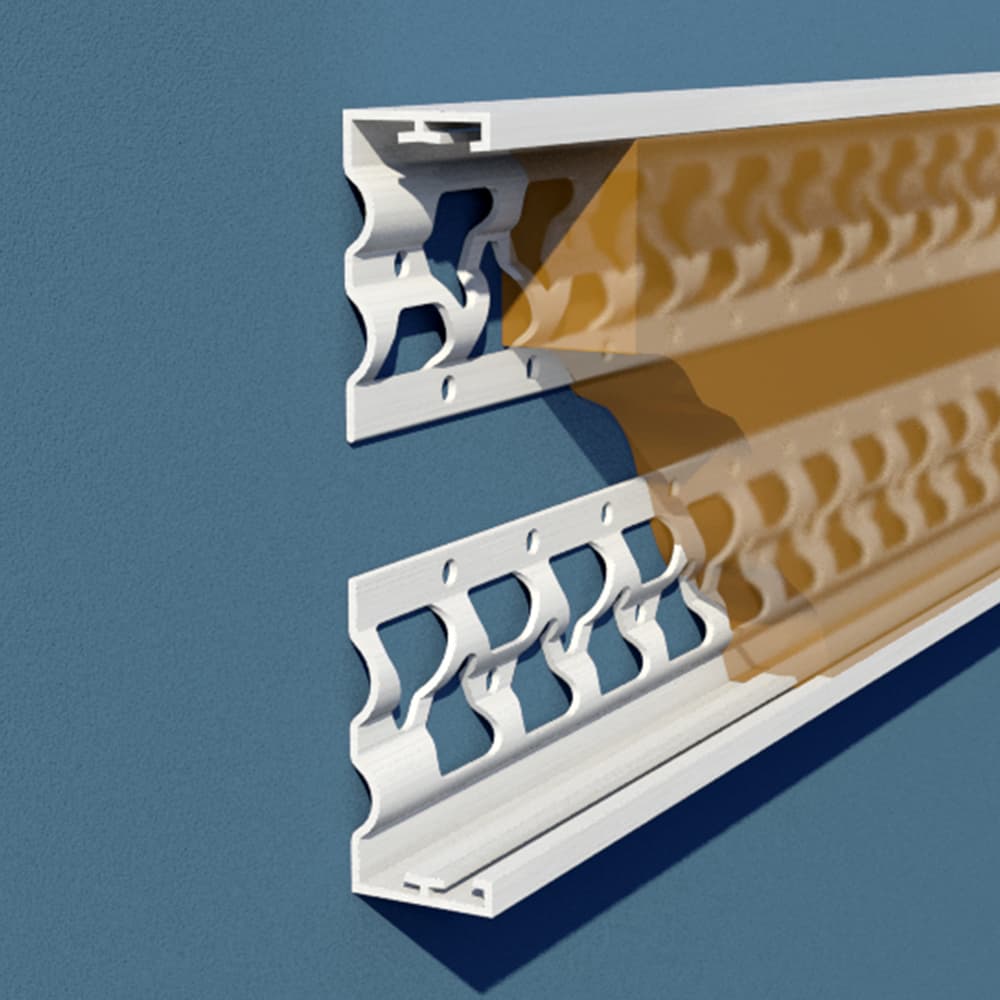

E-Flange Bandmaker™ Casing Bead is designed with a reinforcing rib to assist in keying heavy material fills when "bands" are used in architectural designs.
Quick Actions:
E-Flange allows for 80% more stucco mix to flow through the flange, providing a more thorough and consistent embedment. The unique E-Flange shape also allows for quick and easy tying of lath and other accessories.
Vinyl is impervious to corrosion when coated in veneer plaster, wet joint compounds, or when placed in contact with steel or aluminum frames and resists dents, damage, and impacts during construction. No priming is required to add paint to vinyl products due to its paint adhesion properties. Vinyl has low electrical and thermal conductivity and is considered an excellent insulator, as well as being self-extinguishing and offering better resistance to burning than many other common building materials. Additionally, vinyl has a lower cost than equivalent products manufactured from zinc or aluminum, for use when the highest levels of corrosion resistance are required.
Product Data & Ordering Information

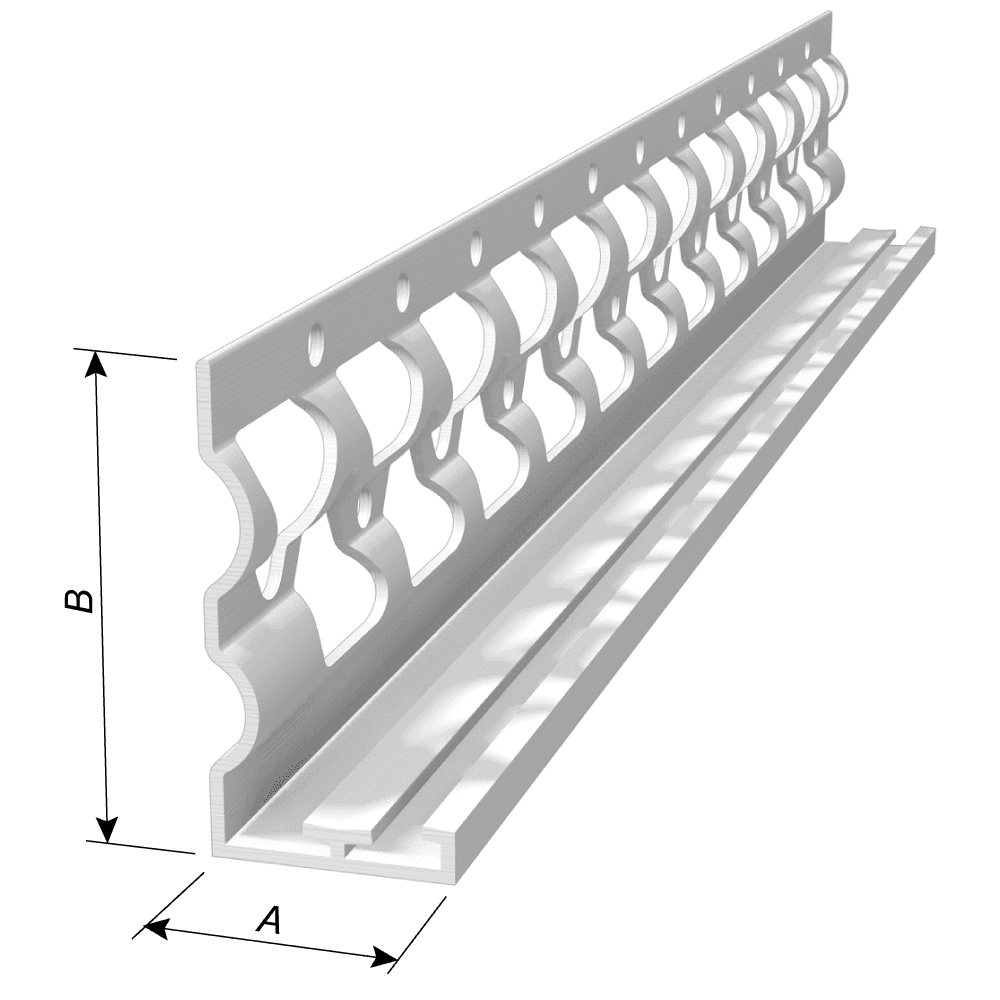

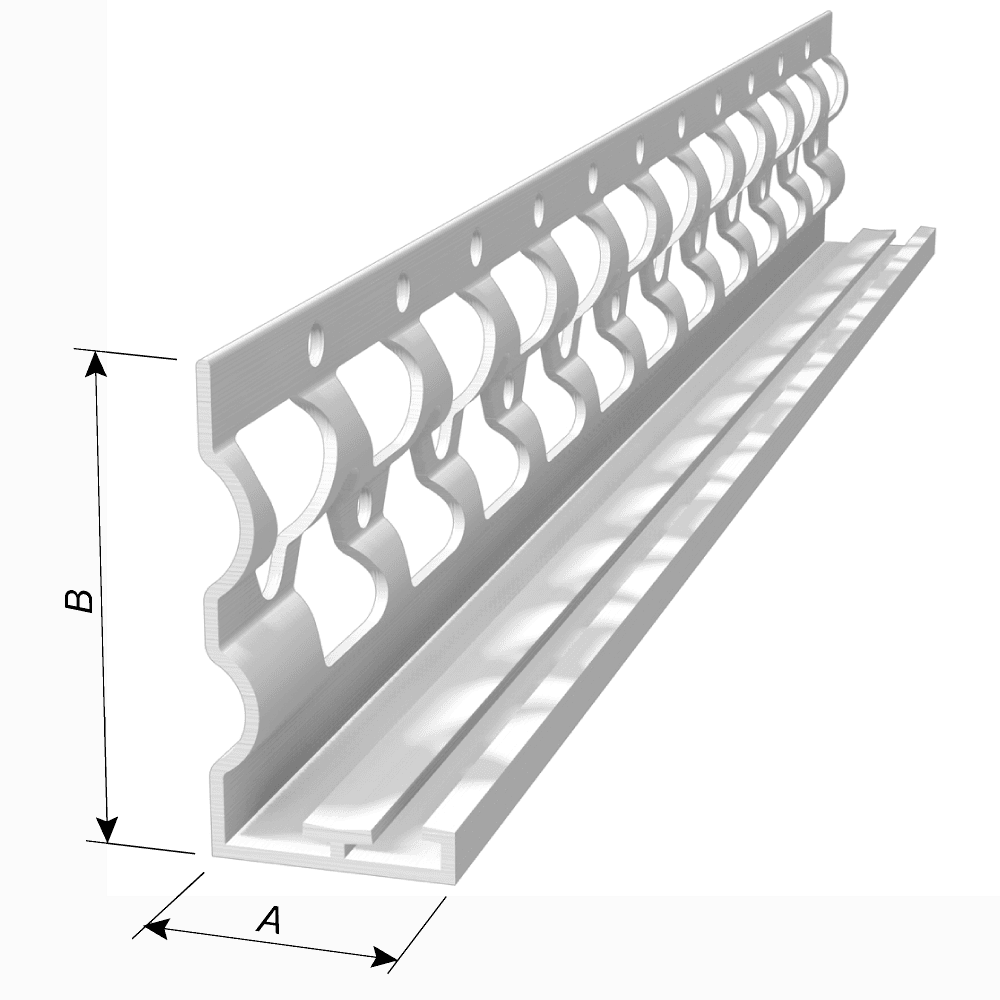

| Product code | Ground (A) | Flange (B) | Pcs./Box |
|---|---|---|---|
| 66100TEF | 1" | 1-3/4" | 75 |
| 66125EF | 1-1/4" | 50 | |
| 66150EF | 1-1/2" | 50 | |
| 66175EF | 1-3/4" | 40 | |
| 66200EF | 2" | 40 |
- Lengths: All 10-foot long standard. Custom lengths upon request.
- Colors: Available in white (tan/brown/gray available upon request)
- U.S. Patent Number D842,496
