TradeReady® Structural Bridging (TDSB)
Provides a quick and efficient method to prevent joist rotation

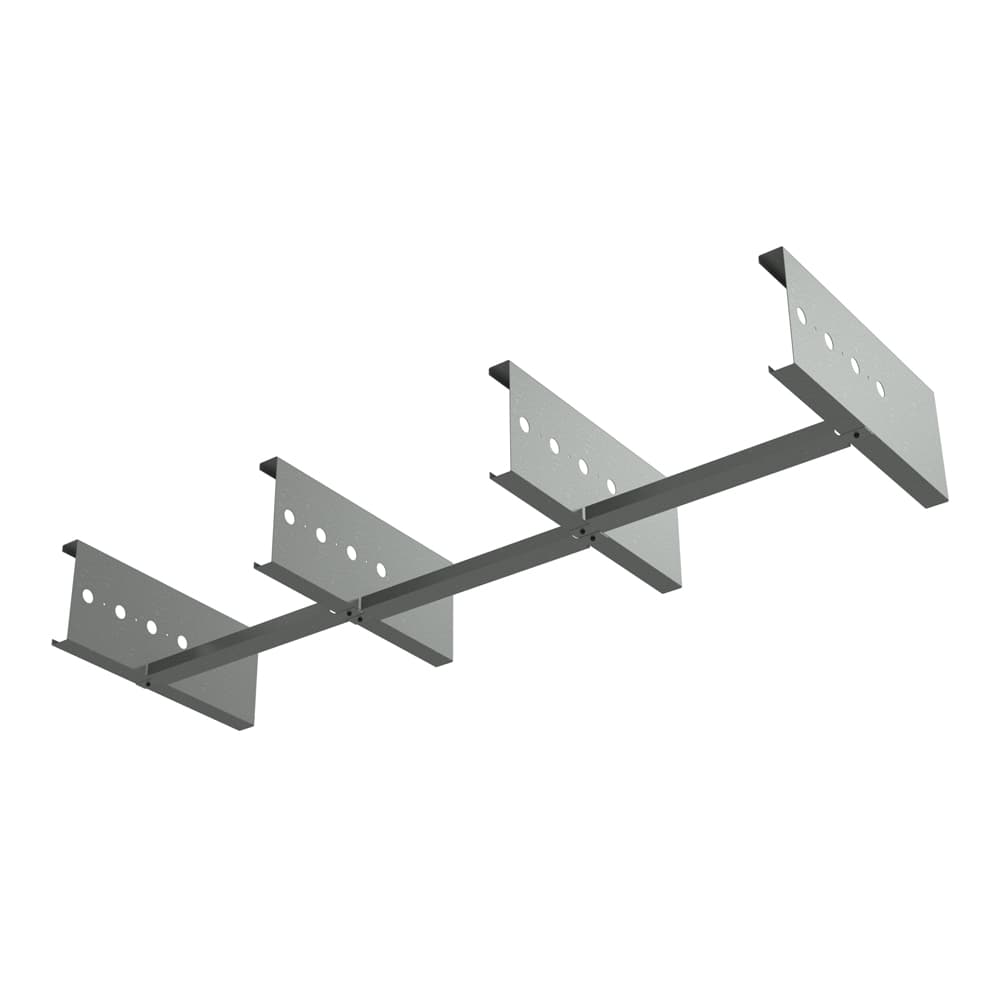

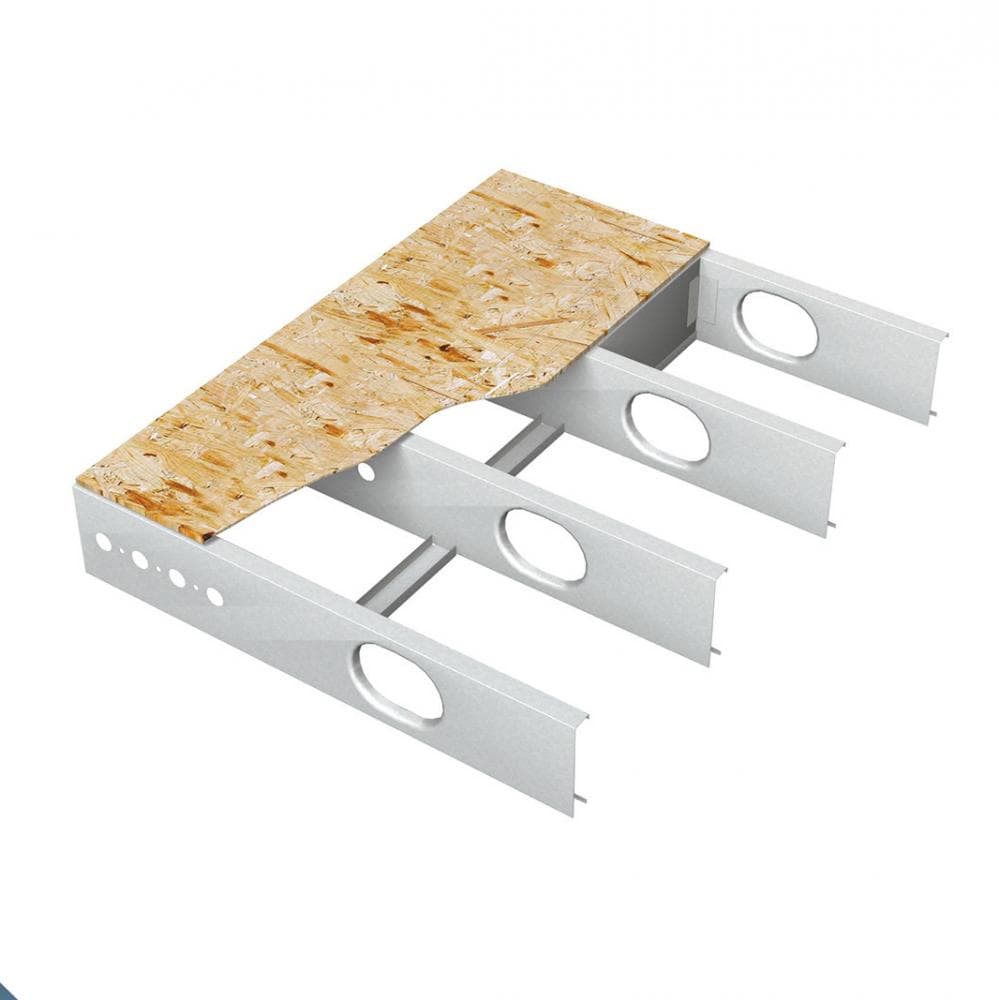

TradeReady® structural blocking is the third component of the TradeReady® steel floor system. Structural blocking is pre-cut to fit securely between the underside of the floor joists to prevent joist rotation.
Quick Actions:
Structural blocking is an economical alternative to cross bracing, X-bracing or strapping. A continuous row of blocking should be installed every 8' O.C. maximum and staggered for easy attachment. Pre-punched holes for quick attachment.
- Economical alternative to strapping, x-bracing or tension bracing.
- Pre-cut to fit 12", 16", 19.2" or 24" spacing.
- Pre-punched holes for quick attachment.
- Available in 18 gauge, CP60.
Caution: In order to prevent joist rolling, the TradyReady® Structural blocking must be tied into the structure or otherwise braced against lateral movement.
Note: Structural blocking is not required if sheathing is applied to the joists top and bottom.
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com

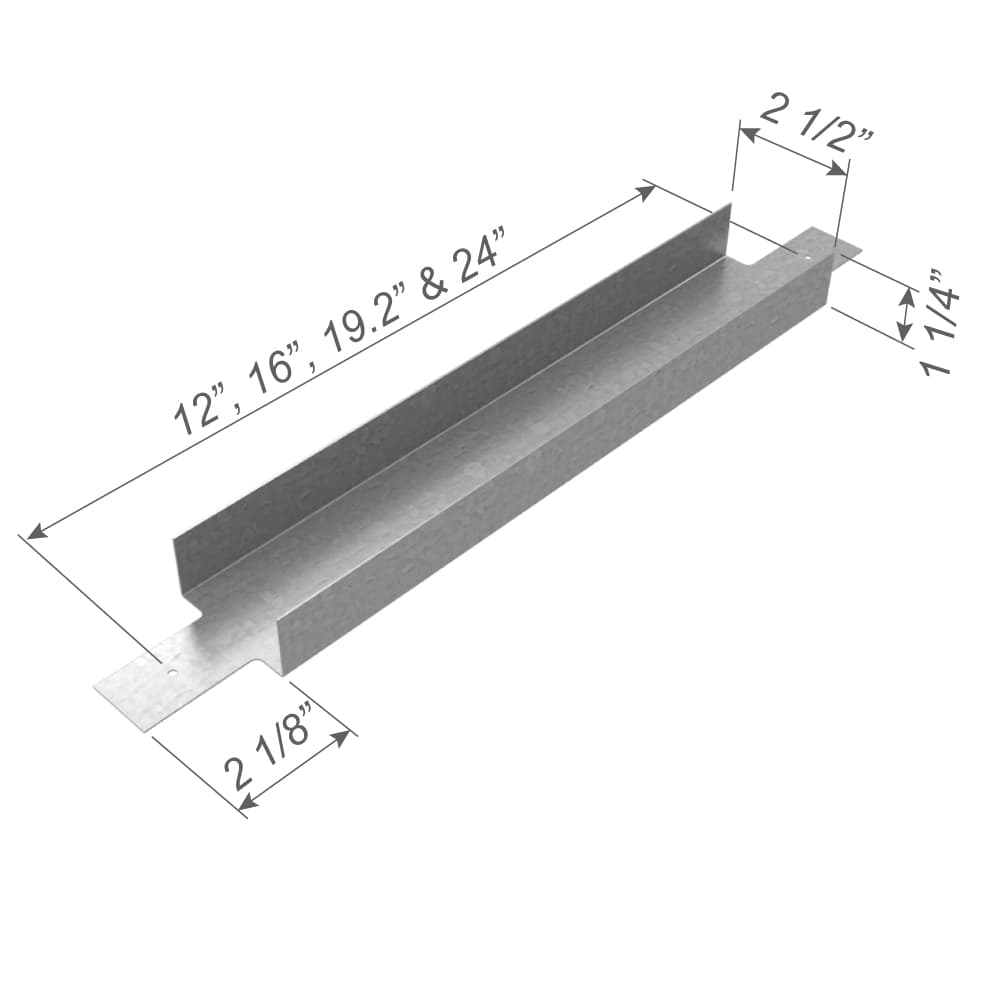

Product Dimensions
2-1/2" x 12"
2-1/2" x 16"
2-1/2" x 19.2"
2-1/2" x 24"
Material Specifications
Gauge: 43mils (18ga)
Design Thickness: 0.0451 inches
Coating: CP60 per ASTM C955
