Solid Track BlockingNew
Quick, Easy Installation

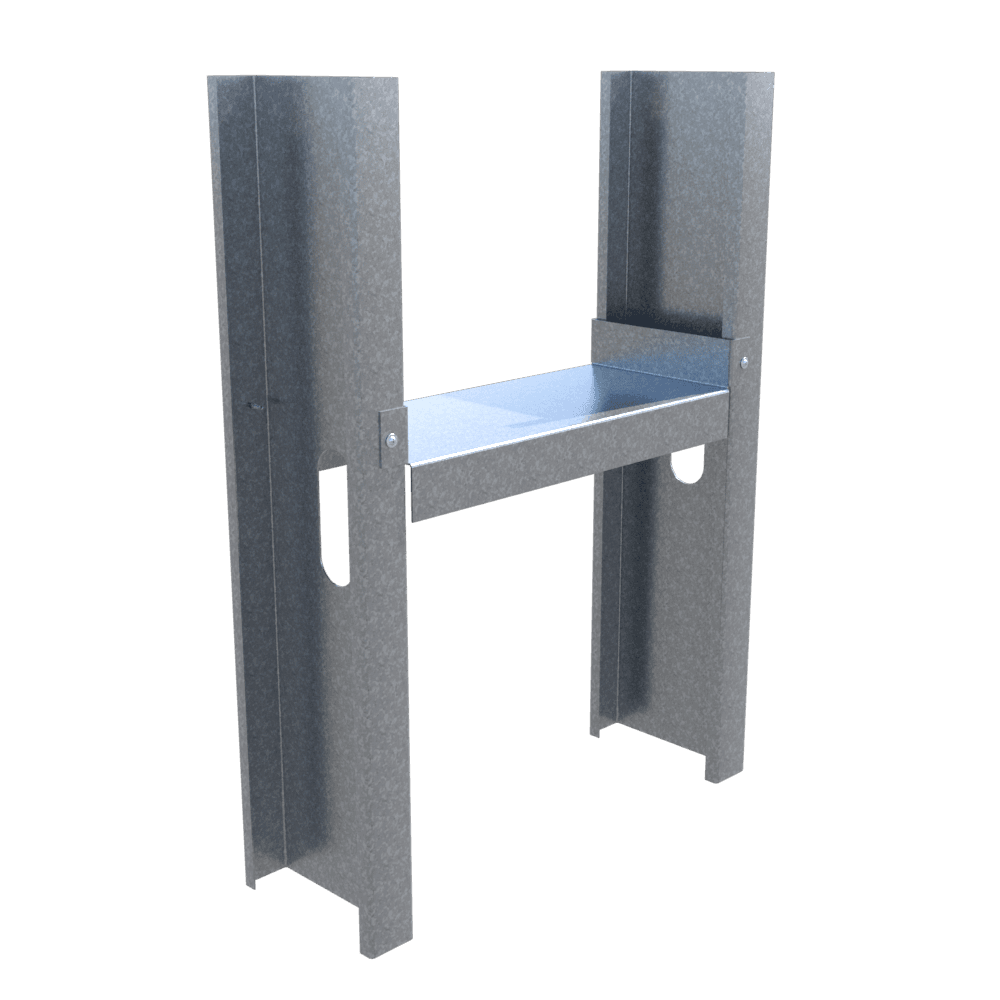

Solid Track Blocking (CDSB) provides a bracing solution designed to stabilize cold-formed steel framing by locking studs into a secure horizontal plane.
Quick Actions:

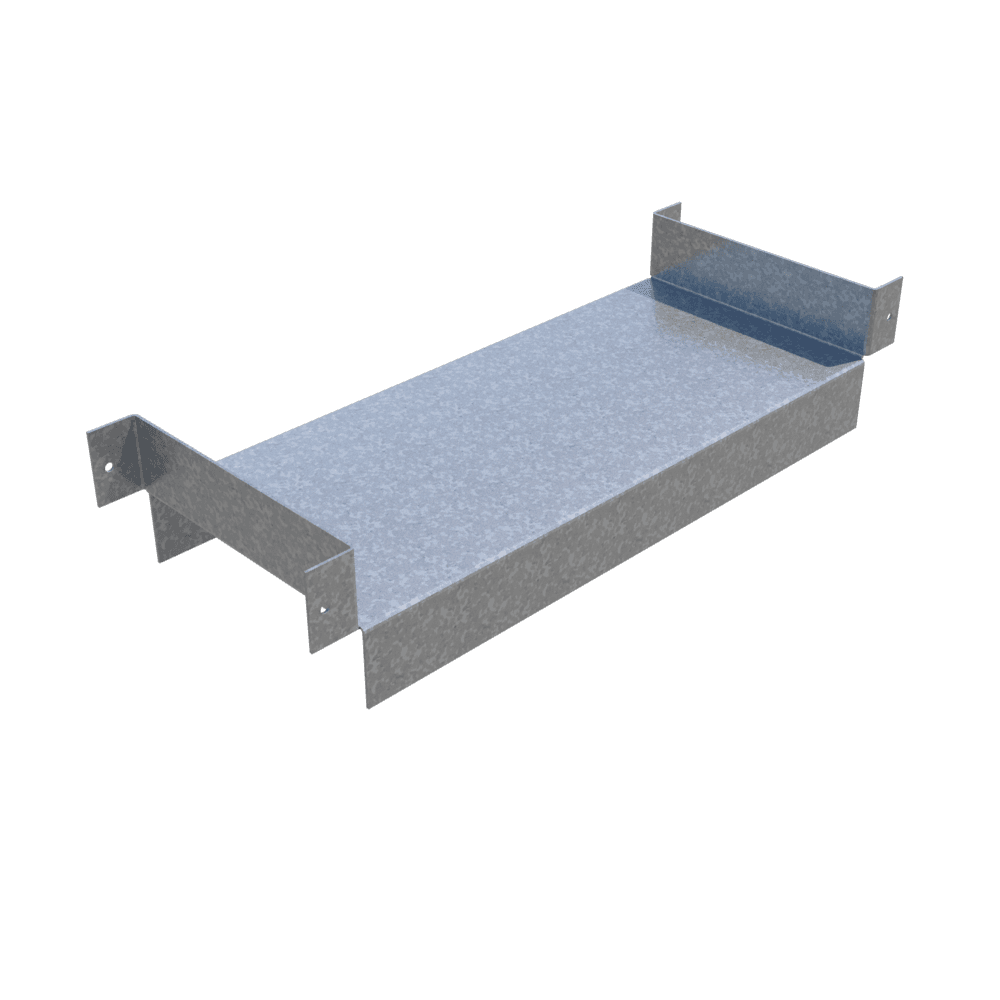

Solid Track Blocking (CDSB) provides a bracing solution designed to stabilize cold-formed steel framing by locking studs into a secure horizontal plane. It’s a smarter alternative to field-fabricating blocking. This one-piece system creates continuous load transfer between stud webs, helping maintain wall integrity and improve performance in shear and axial applications.
Key Features
- Available in a range of web sizes to fit standard stud dimensions
- Offered in standard spacing for 16" and 24" o.c. layouts
- Designed to fit 1-5/8” flange
- Pre-punched holes for fast and easy attachment
- 1-5/8" standard leg size
- Single-piece design
- Custom lengths available upon request
Product Data & Ordering Information

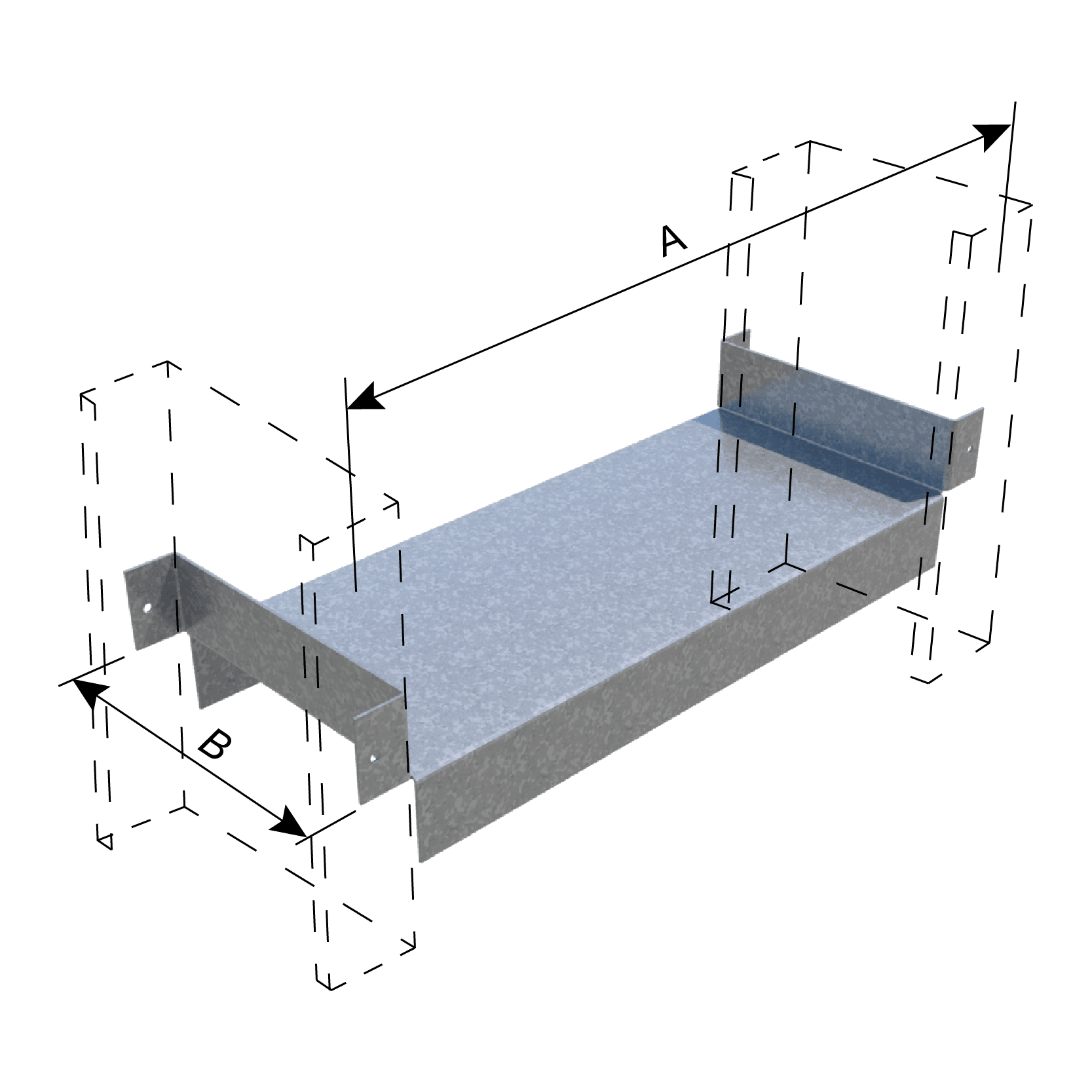

| Product Code | Part Description | Width (B) | Stud Flange | Spacing (A) |
|---|---|---|---|---|
| CDSB362-S16-54 | 3-5/8" Web, 16" o.c. Solid Track Blocking | 3-5/8" | 1-5/8" | 16" |
| CDSB362-S24-54 | 3-5/8" Web, 24" o.c. Solid Track Blocking | 3-5/8" | 1-5/8" | 24" |
| CDSB400-S16-54 | 4" Web, 16" o.c. Solid Track Blocking | 4" | 1-5/8" | 16" |
| CDSB400-S24-54 | 4" Web, 24" o.c. Solid Track Blocking | 4" | 1-5/8" | 24" |
| CDSB600-S16-54 | 6" Web, 16" o.c. Solid Track Blocking | 6" | 1-5/8" | 16" |
| CDSB600-S24-54 | 6" Web, 24" o.c. Solid Track Blocking | 6" | 1-5/8" | 24" |
| CDSB800-S16-54 | 8" Web, 16" o.c. Solid Track Blocking | 8" | 1-5/8" | 16" |
| CDSB800-S24-54 | 8" Web, 24" o.c. Solid Track Blocking | 8" | 1-5/8" | 24" |
Packaging: Sold individually.
Minimum Thickness: 0.0538 inch (54 mil), 16 GA
Material: 50 ksi
Protective Coating: CP60
