ClarkDietrich PilotTRAK is a structural U-shaped framing component. PilotTRAK can also be used in box-headers, door jambs, axial loadbearing walls, curtainwalls, tall interior partitions, floor joists and roof truss assemblies. The 1” on-center pilot holes accelerate screw attachment and facilitate with framing layout.
Quick Actions:
PilotTrak

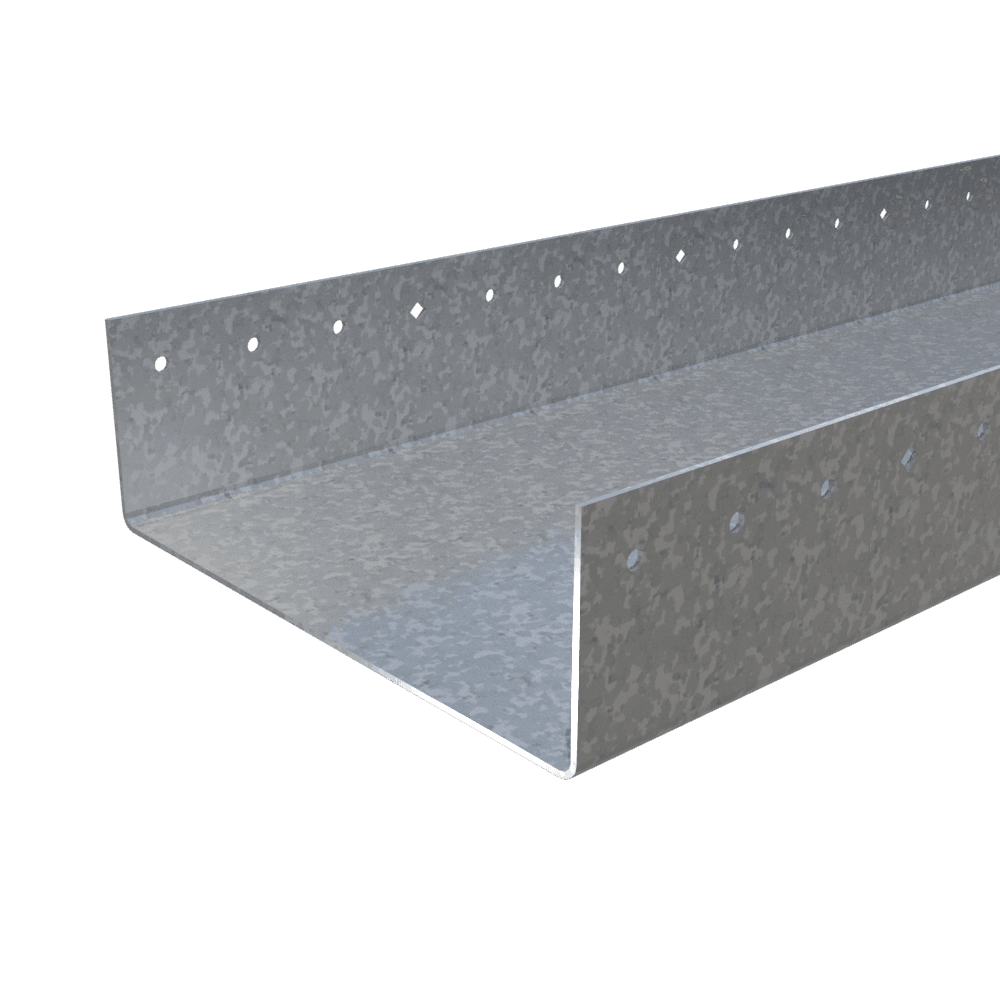

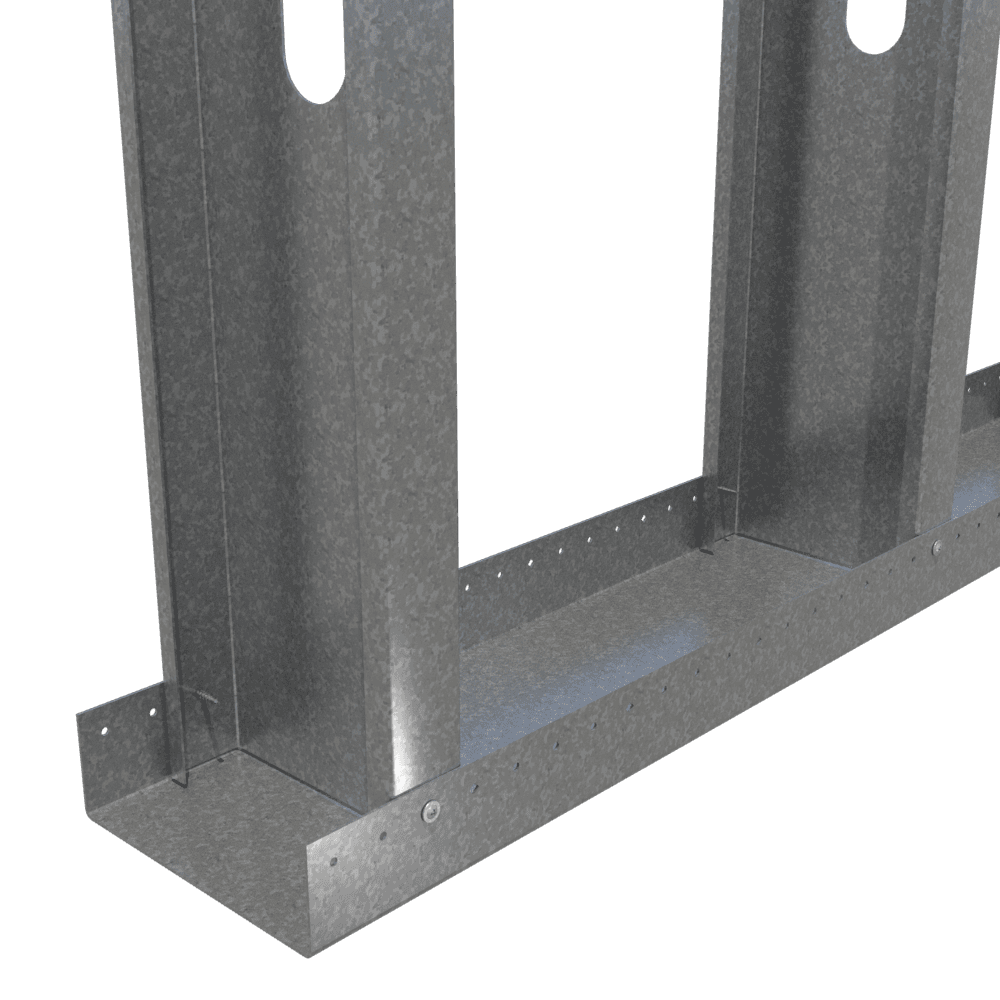

ClarkDietrich PilotTRAK is a structural U-shaped framing component. PilotTRAK can also be used in box-headers, door jambs, axial loadbearing walls, curtainwalls, tall interior partitions, floor joists and roof truss assemblies. The 1” on-center pilot holes accelerate screw attachment and facilitate with framing layout. Every 4th hole is diamond shaped to assist with on-center stud spacing.
ClarkDietrich tracks are made in a variety of web and leg sizes to meet different applications
- Standard Web Size: 3-5/8”, 6” and 8"
- Leg heights: 1-1/4” and 2”
- Thickness: 54 mils (16ga) and 68 mils (14ga)
- 50ksi steel unless otherwise noted
- Standard coating: CP60 (G60, CP90 & G90 available) Per AISI S240
- Standard 10’ lengths. (Custom lengths available)
- All tracks are color coded for easy identification
U.S. Patent No: 229,299
See ClarkDietrich's Product Identification sheet for more on how to identify our products.
