Extended Uni-Clip™ (UXRC6-HD) w/Anchor HolesNew

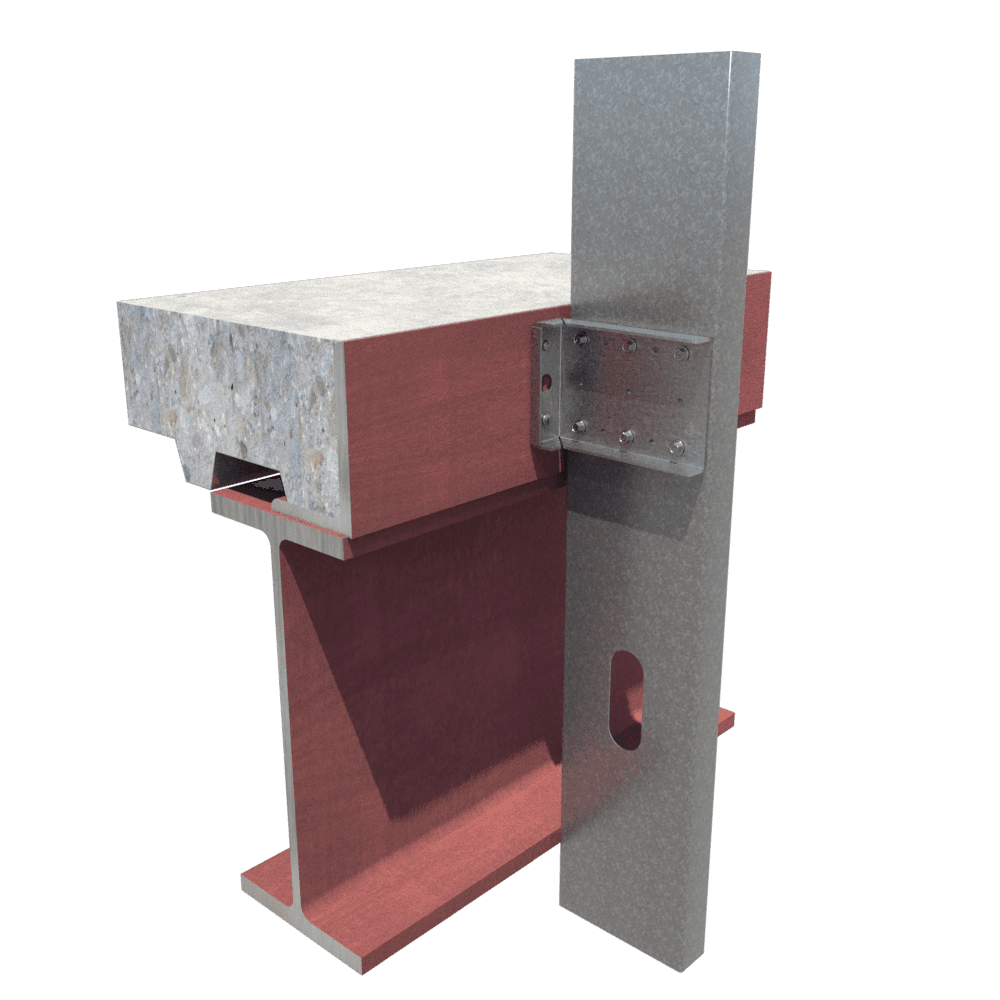

connects exterior studs to the primary structure of the building, while resisting horizontal and vertical loads

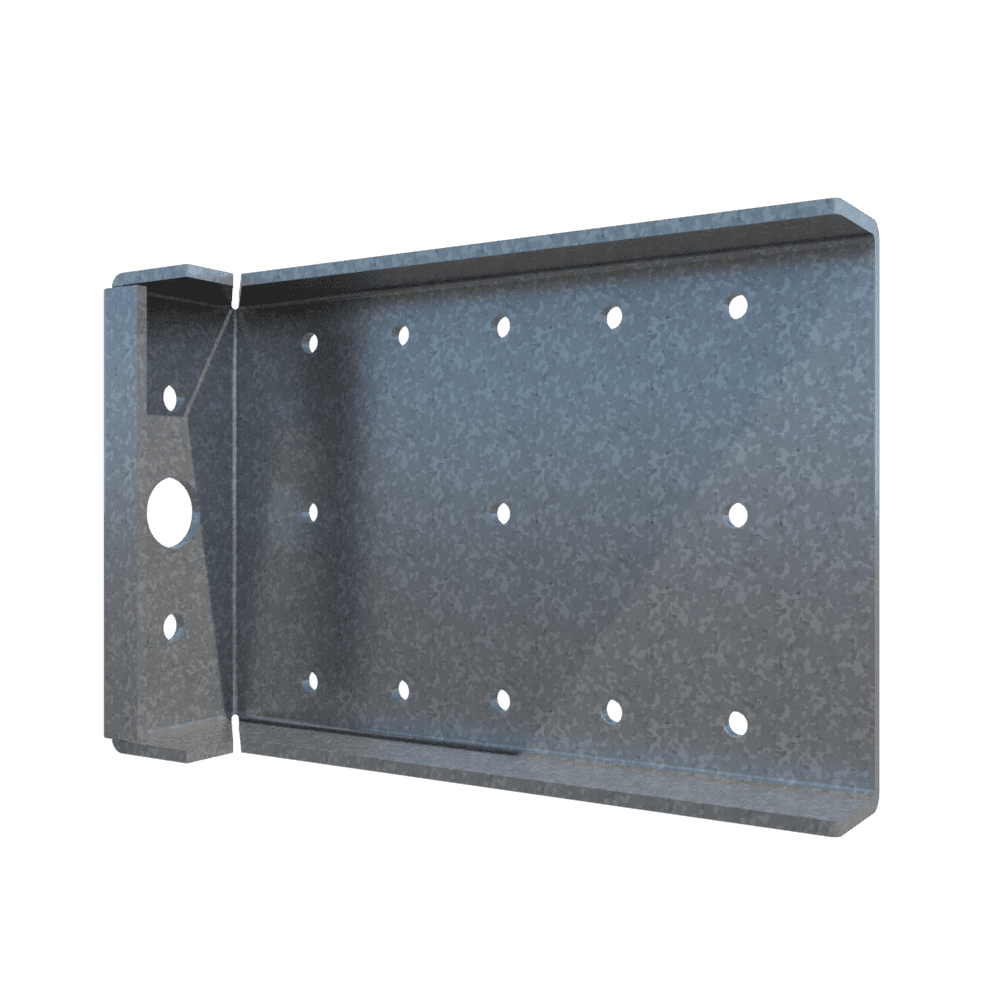

ClarkDietrich’s UXRC6-HD 68mils (14ga) rigid framing clip is used to attach exterior wall studs to the structure of the building.
Quick Actions:

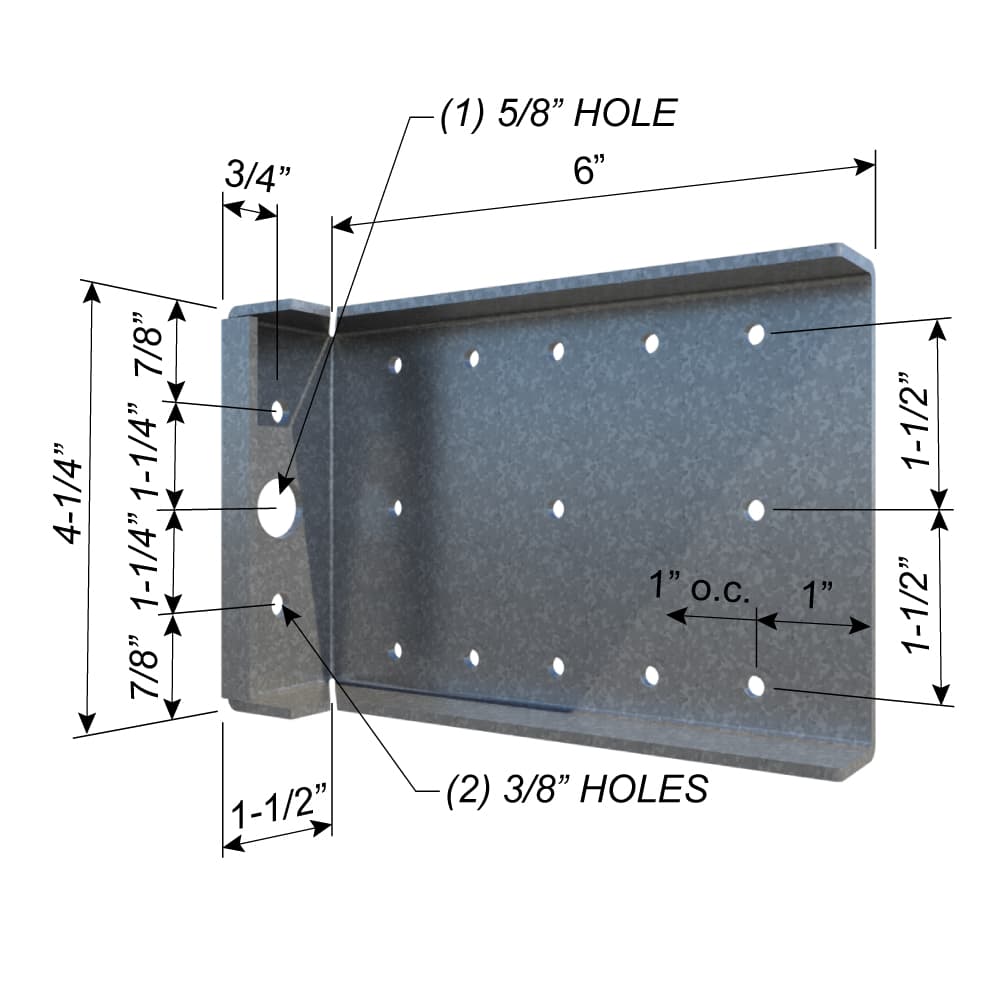

This clip is ideal for all medium and large standoff conditions and designed to resist horizontal and vertical loads. (1) 5/8" hole in the short leg of the clip allows for a 1/2" concrete anchor to be attached to the slab. (2) 3/8" holes allow 1/4" anchors.
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
Product Data & Ordering Information:
| Product code | Gauge | Mils | Design thickness (in) | Size (in) | Packaging Pcs./Bucket |
|---|---|---|---|---|---|
| UXRC6-HD | 14 | 68 | 0.0713 | 1-1/2 x 4-1/4 x 6 | 25 |
Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating
See submittals for product weights
