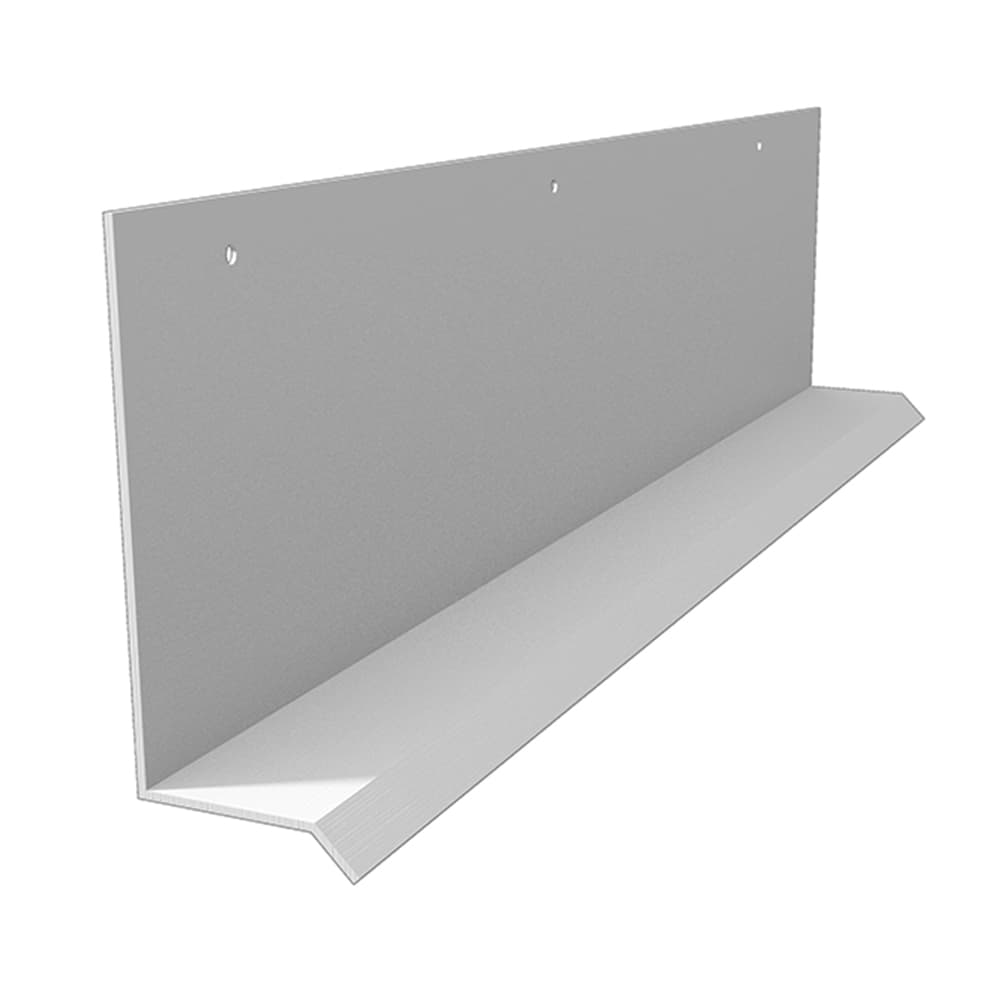

Drip Flashing - 3" and 3-1/2" Flange

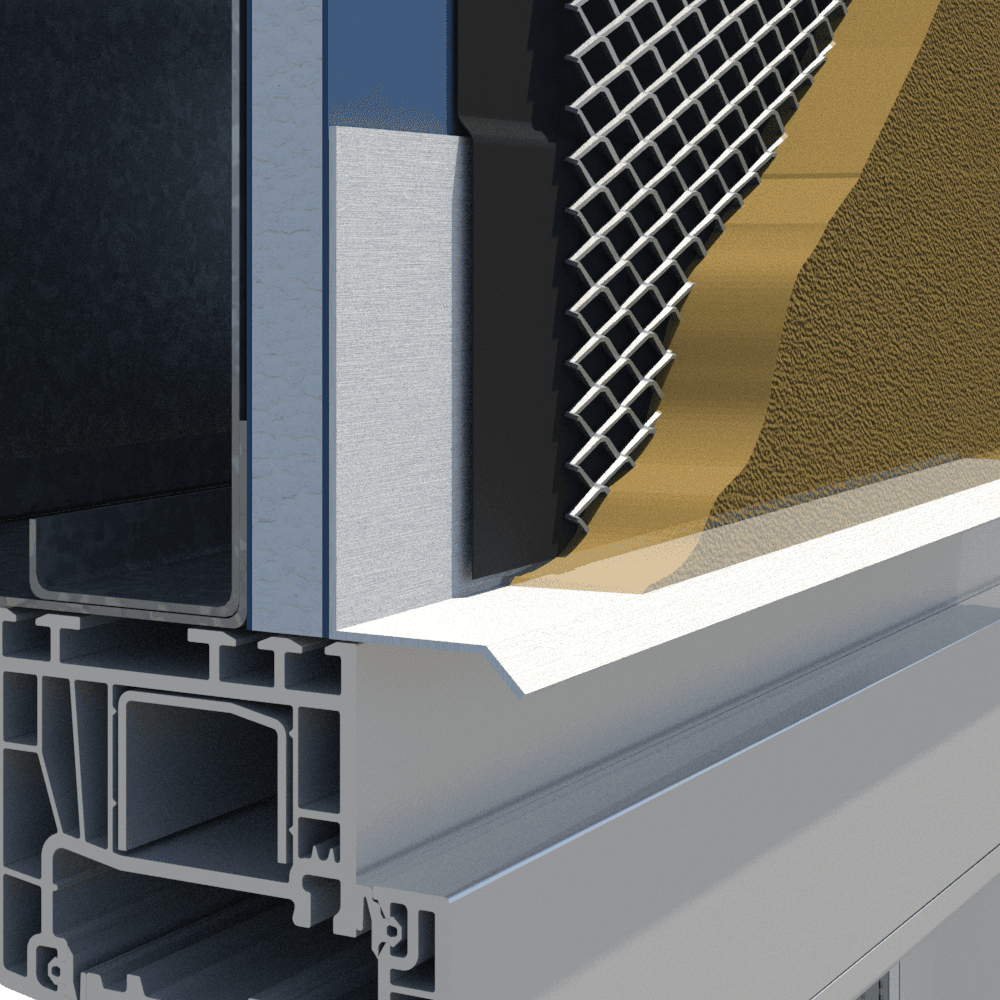

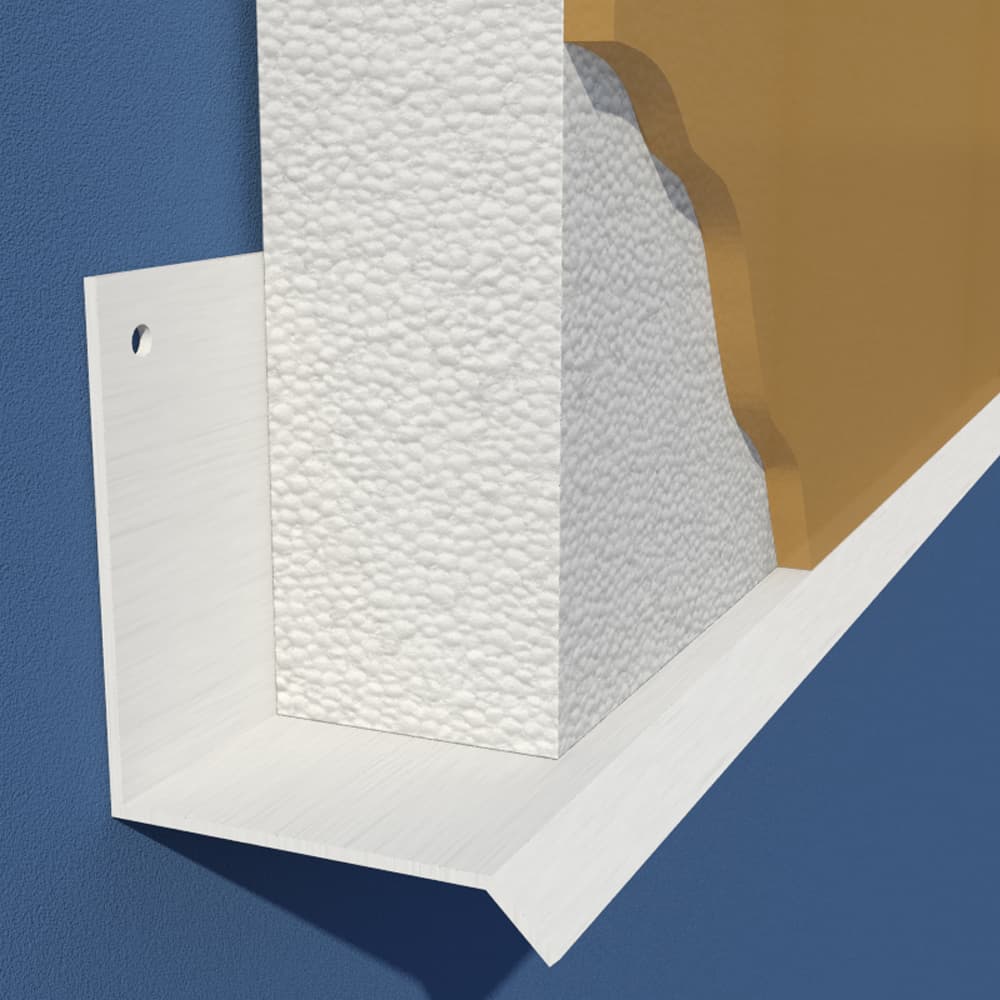

Designed to be used above window and door openings or at the foundation line
To assist with moving moisture away from the wall.
Quick Actions:
Designed to be used above window and door openings or at the foundation line to assist with moving moisture away from the wall. May be used in combination with casing bead. Caulk all intersections, butt joints, ends and corners at time of installation. Available in white, gray, tan and brown. If a custom color is required, please contact a ClarkDietrich sales representative or customer service.
Product Data & Ordering Information

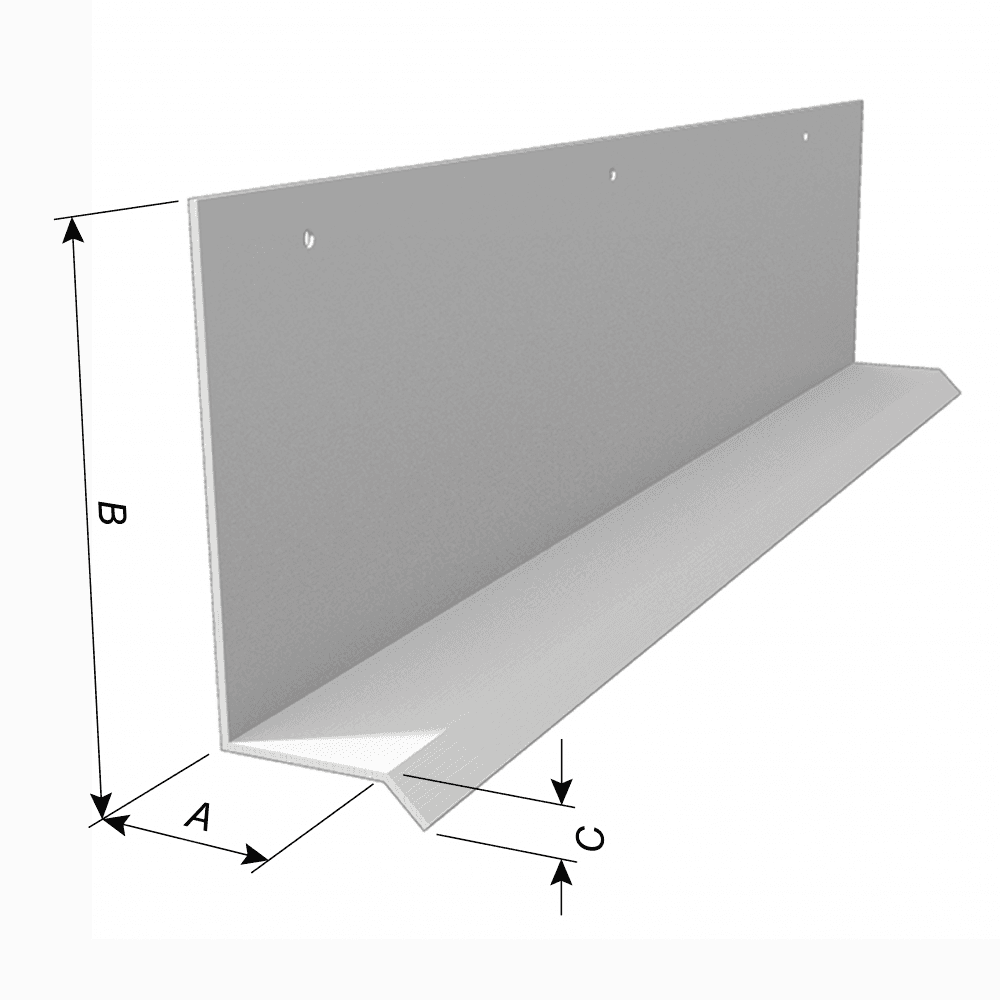

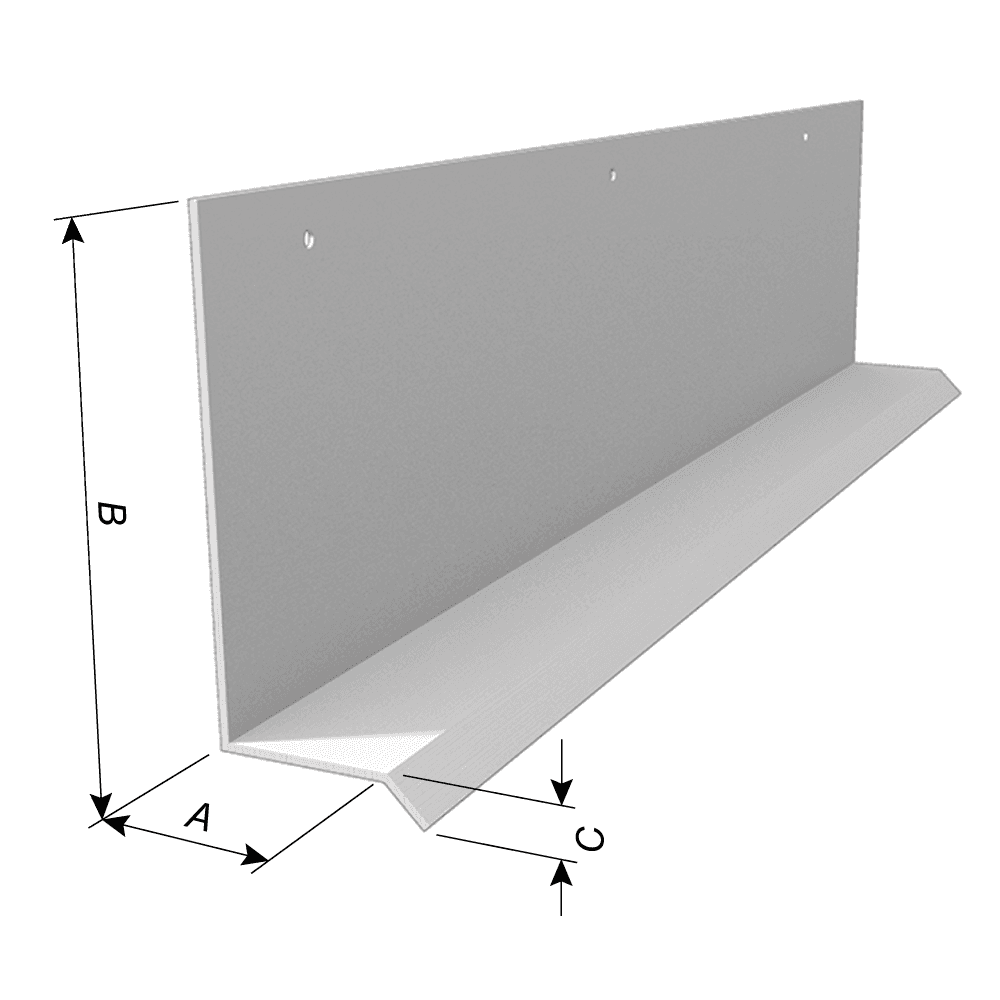

| Product code (White) | Ground (A) | Flange (B) | Drip Leg (C) | Length | Pcs./Box |
|---|---|---|---|---|---|
| DF50-25 | 1/2" | 3" | 1/4" | 10' | 35 |
| DF58-25 | 5/8" | 3" | 1/4" | 10' | 35 |
| DF75-25 | 3/4" | 3" | 1/4" | 10' | 35 |
| DF78-25 | 7/8" | 3" | 1/4" | 10' | 35 |
| DF100-25 | 1" | 3" | 1/4" | 10' | 35 |
| DF150-25 | 1-1/2" | 3" | 1/4" | 10' | 35 |
| DF200-25 | 2" | 3" | 1/4" | 10' | 35 |
| DF300-25 | 3" | 3" | 1/4" | 10' | 25 |
| DF400-25 | 4" | 3" | 1/4" | 10' | 25 |
| DFL50-25 | 1/2" | 3-1/2" | 1/4" | 10' | 35 |
| DFL58-25 | 5/8" | 3-1/2" | 1/4" | 10' | 35 |
| DFL75-25 | 3/4" | 3-1/2" | 1/4" | 10' | 35 |
| DFL78-25 | 7/8" | 3-1/2" | 1/4" | 10' | 35 |
| DFL100-25 | 1" | 3-1/2" | 1/4" | 10' | 35 |
| DFL150-25 | 1-1/2" | 3-1/2" | 1/4" | 10' | 35 |
| DFL200-25 | 2" | 3-1/2" | 1/4" | 10' | 35 |
| DFL300-25 | 3" | 3-1/2" | 1/4" | 10' | 25 |
| DFL400-25 | 4" | 3-1/2" | 1/4" | 10' | 25 |
Standard Colors Available: White, Gray, Tan and Brown
Please contact your local customer service representative for information about our Custom Color Program.
| White | Gray | Tan | Brown |
|---|---|---|---|
| DFXX-XX | DFXX-XX-GRY | DFXX-XX-TAN | DFXX-XX-BRN |
