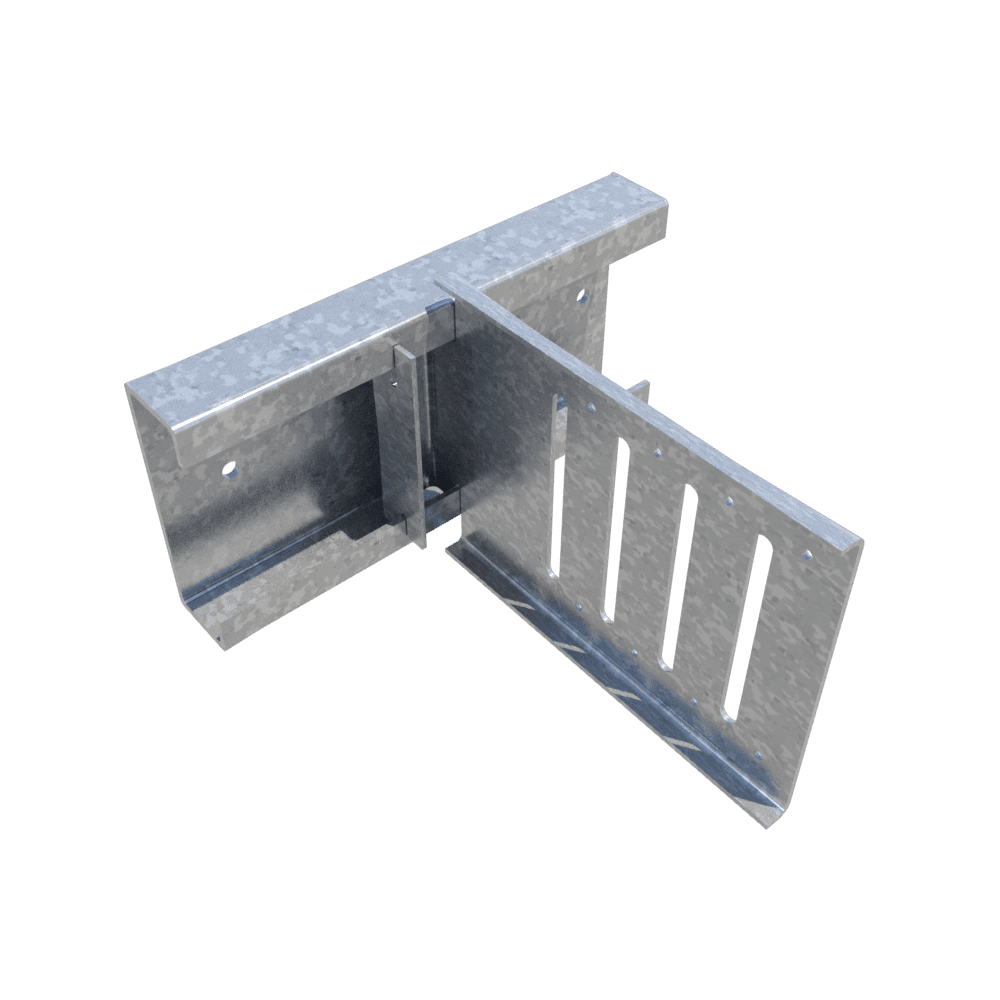

Drift Rail (DR97) and Clip (DRC) New
UNIVERSAL 2-PIECE SYSTEM FOR DRIFT, DEFLECTION AND RIGID APPLICATIONS

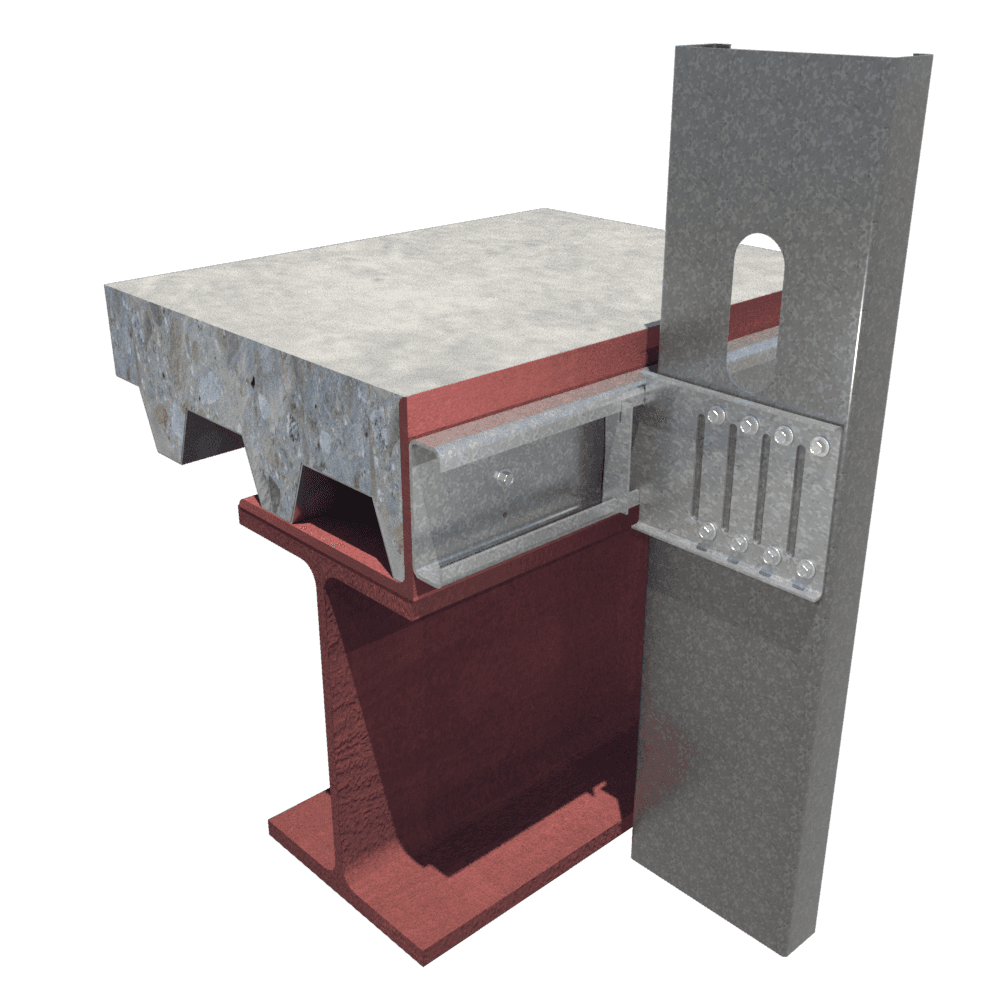

ClarkDietrich Drift Rail 97mil (12ga) and Clip 97 mil or 68mil (12ga or 14ga) is a uniquely designed two-piece system that is used to attach curtain-wall studs to the building structure and allows for vertical and lateral movement or to be rigidly attached.
Quick Actions:

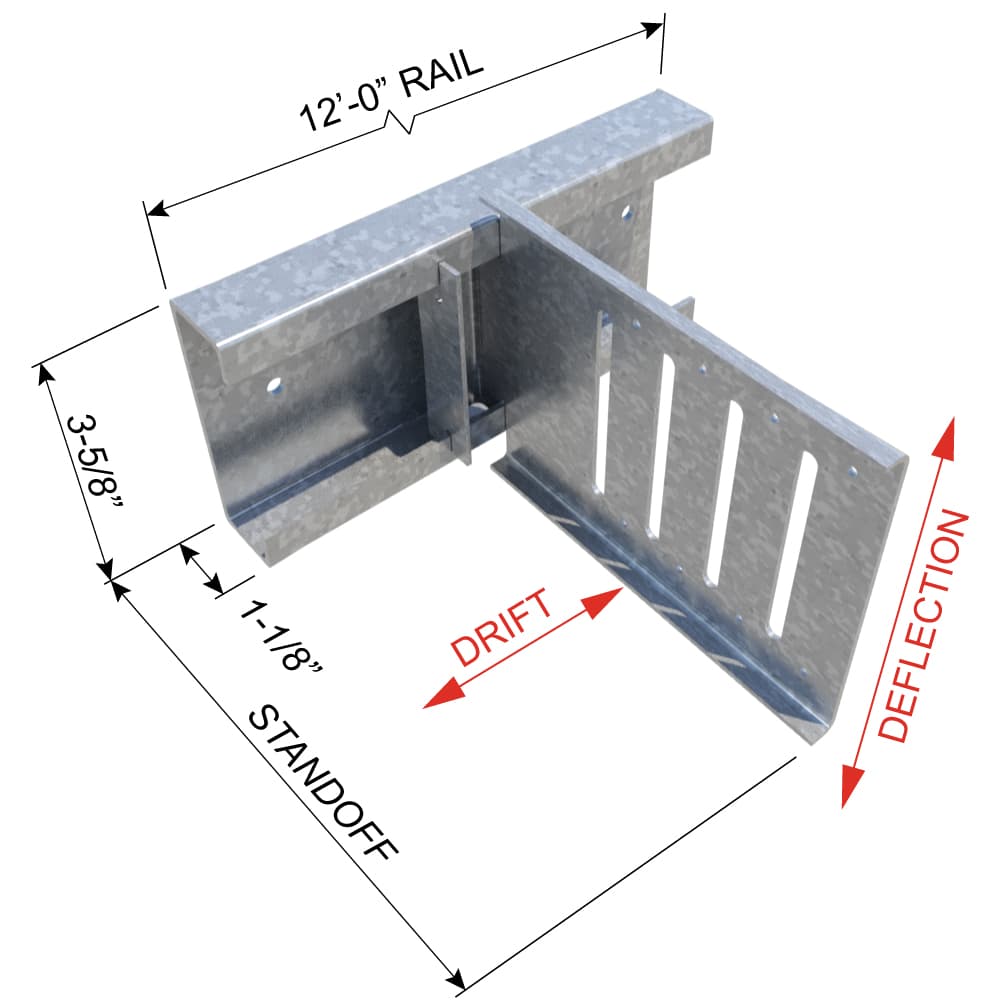

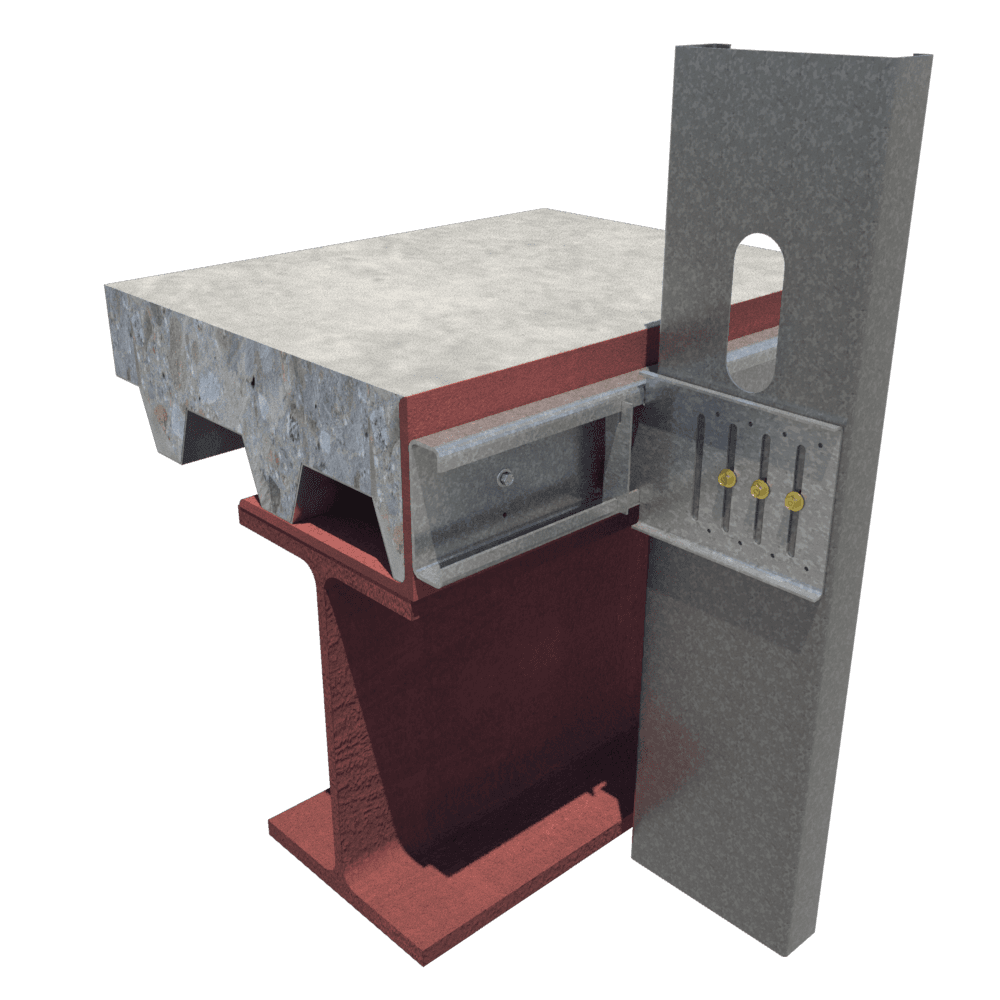

The system utilizes a C-Shaped Drift Rail and distinctively designed Drift Rail Clips that rotate into position for easy installation. For cast-in-place applications refer to the DHR-97 Drift Rail. The multifaceted Drift Rail Clips use Proprietary Deflection Screws for attachment to the wall studs and allows for 3" vertical deflection (1-1/2" up and down) and is also designed with 1/8" holes to rigidly attach wall studs.
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
12ga Drift rail (DR-97)
Product Specifications
Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating
See submittals for product weights
Product Data & Ordering Information
| Product Code | Gauge | Mils | Assembly Standoff | Rail Length | Hole Spacing | Packaging |
|---|---|---|---|---|---|---|
| DR-97 | 12 | 97 | 4.5" | 12' | (2) 1/8" holes and (1) 3/8" hole at 6" o.c. | Individually |

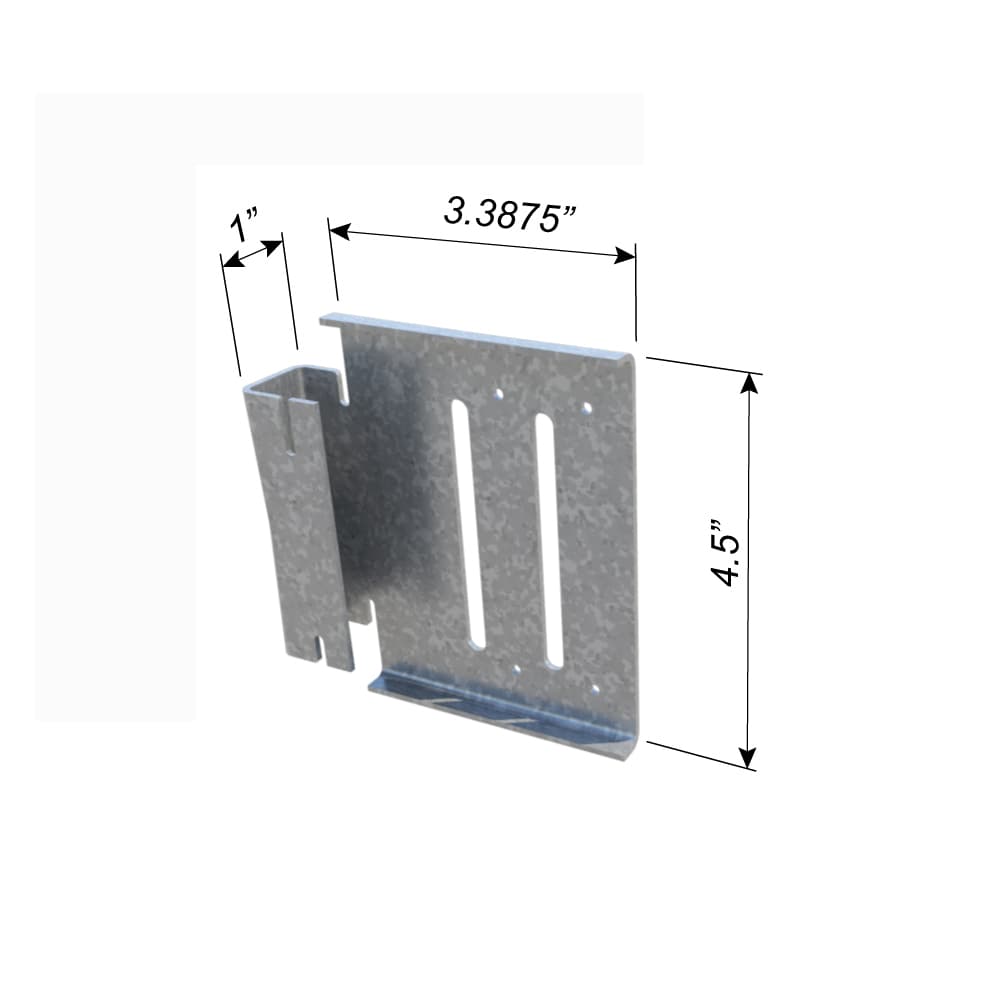

14ga Drift Rail Clips (DRC-68)
Product Specifications
Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating
See submittals for product weights
Proprietary Deflection Screws
ClarkDietrich deflection clips include our proprietary deflection screw that has been specifically designed to provide friction-free deflection. These fasteners eliminate drag, binding or resistance that can often occur with common fasteners.
Product Data & Ordering Information
| Product Code | Gauge | Mils | Assembly Standoff | Slots per Clip | Holes per Clip | Packaging |
|---|---|---|---|---|---|---|
| DRC3-68 | 14 | 68 | 4.5" | 2 | 4 | 25 clips / 55 deflection screws per box |
| DRC6-68 | 14 | 68 | 7" | 4 | 8 | 25 clips / 80 deflection screws per box |
| DRC8-68 | 14 | 68 | 8.5" | 4 | 8 | 25 clips / 80 deflection screws per box |

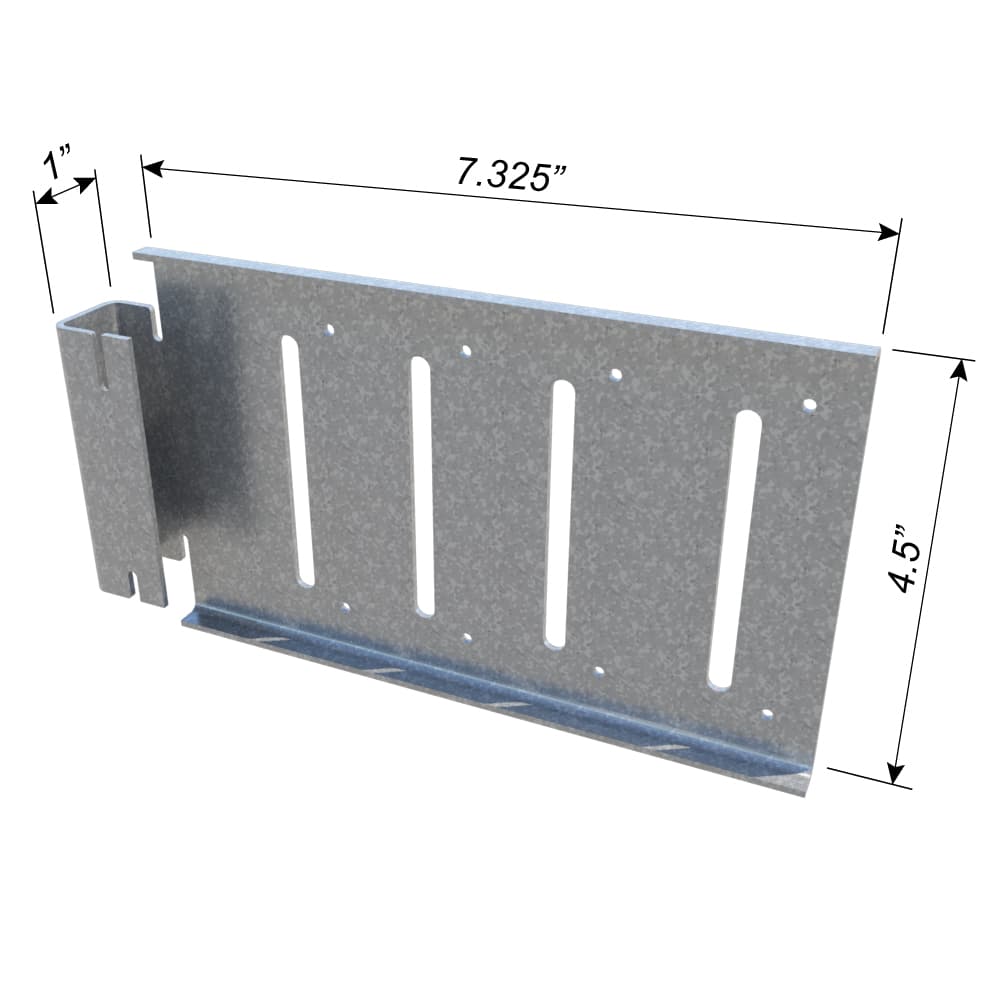

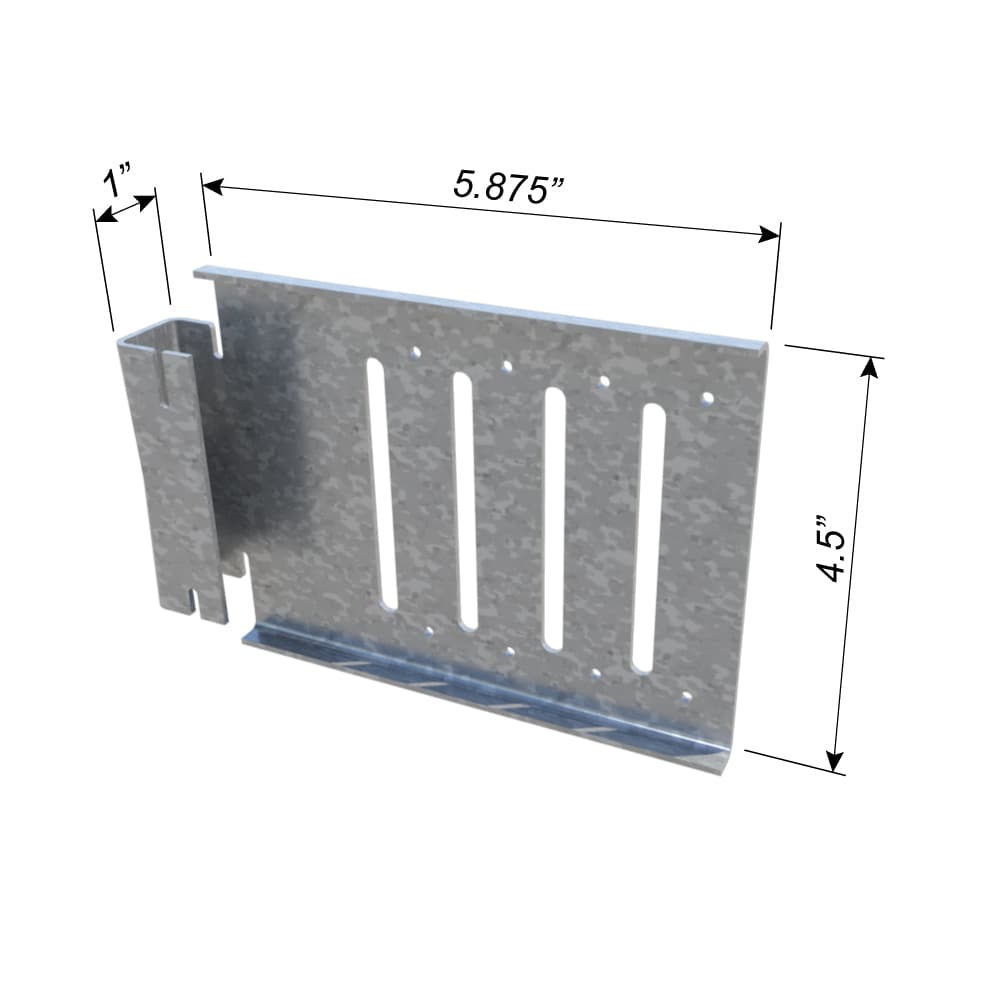

12ga Drift Rail Clips (DRC-97)
Product Specifications
Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating
See submittals for product weights
Proprietary HD Deflection Screws
ClarkDietrich deflection clips include our proprietary HD deflection screw that has been specifically designed to provide friction-free deflection. These fasteners eliminate drag, binding or resistance that can often occur with common fasteners.
Product Data & Ordering Information
| Product Code | Gauge | Mils | Assembly Standoff | Slots per Clip | Holes per Clip | Packaging |
|---|---|---|---|---|---|---|
| DRC3-97 | 12 | 97 | 4.5" | 2 | 4 | 25 clips / 55 deflection screws per box |
| DRC6-97 | 12 | 97 | 7" | 4 | 8 | 25 clips / 80 deflection screws per box |
| DRC8-97 | 12 | 97 | 8.5" | 4 | 8 | 25 clips / 80 deflection screws per box |

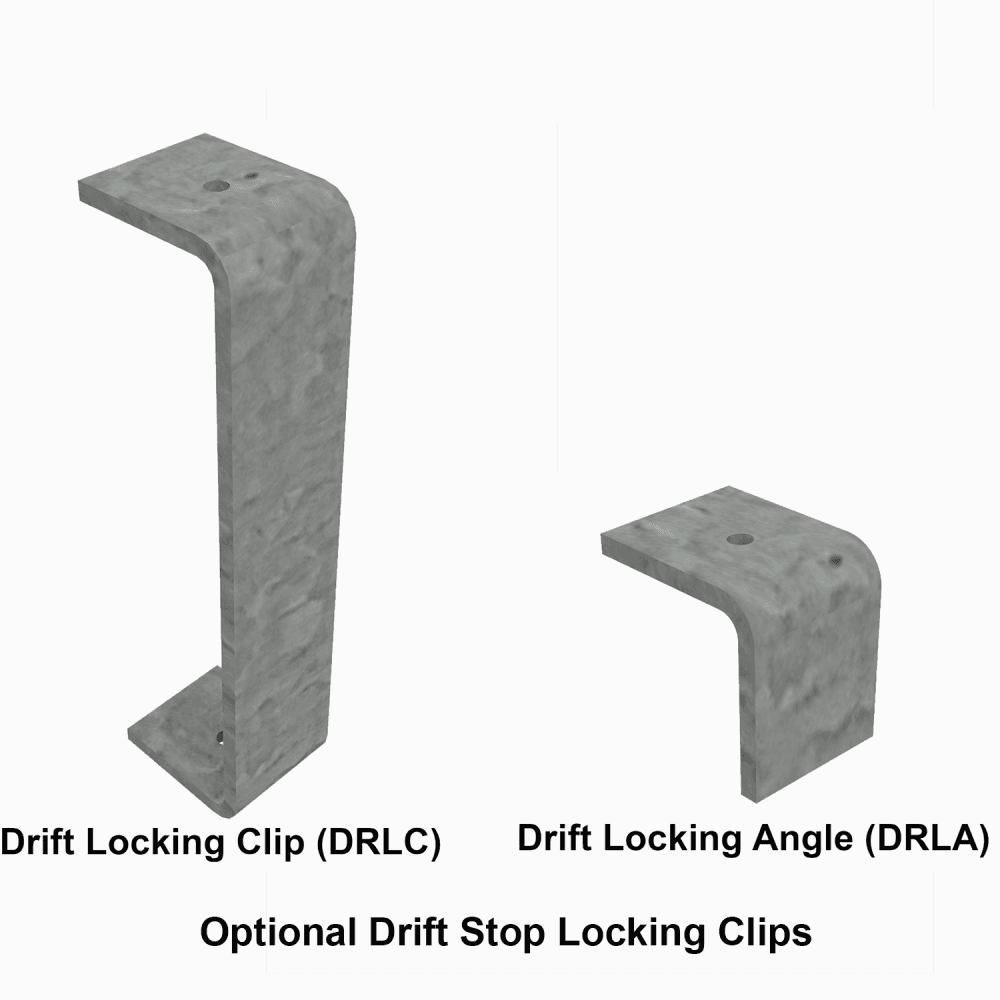

drift stops (optional)
To restrict clip lateral movement (Drift) along the Drift Rail, install one of two types of stops:
- Drift Locking Angle (DRLA) is an L-shaped clip
- Drift Locking Clip (DRLC) is a C-shaped clip
