Commercial StrappingNew

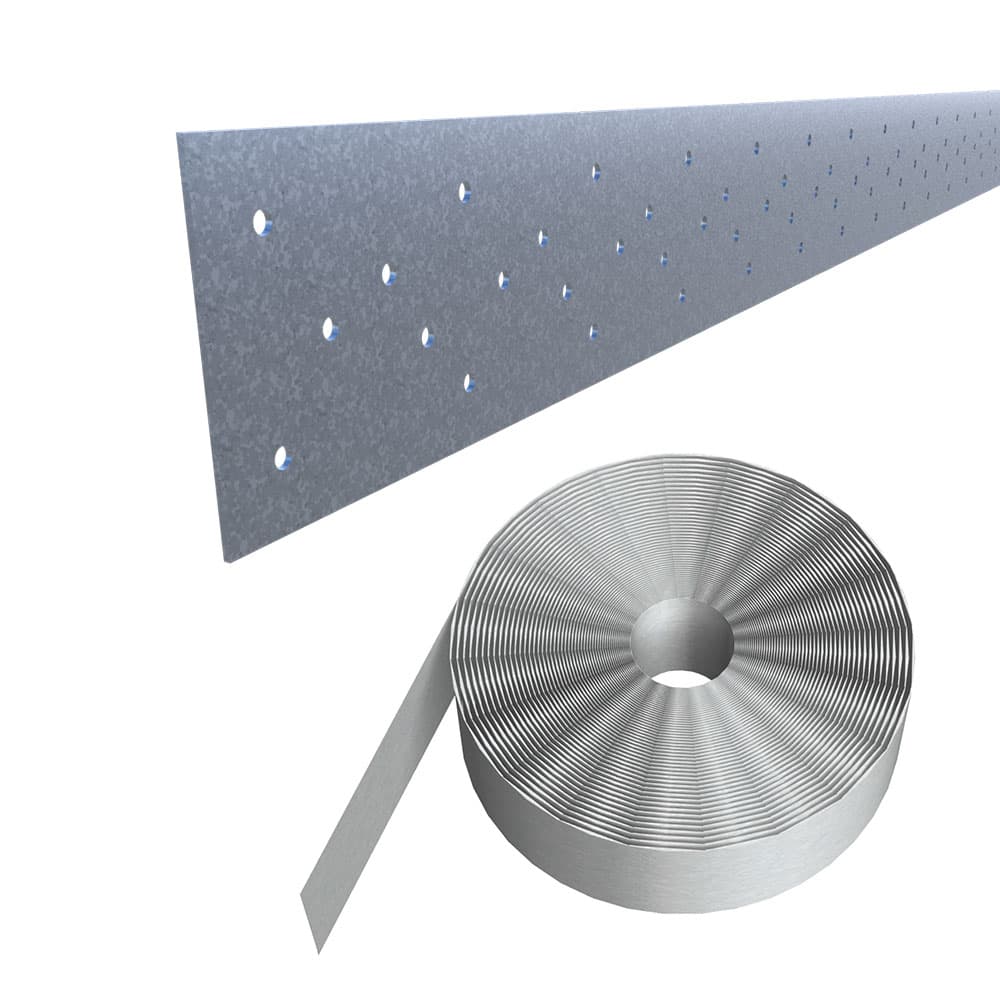

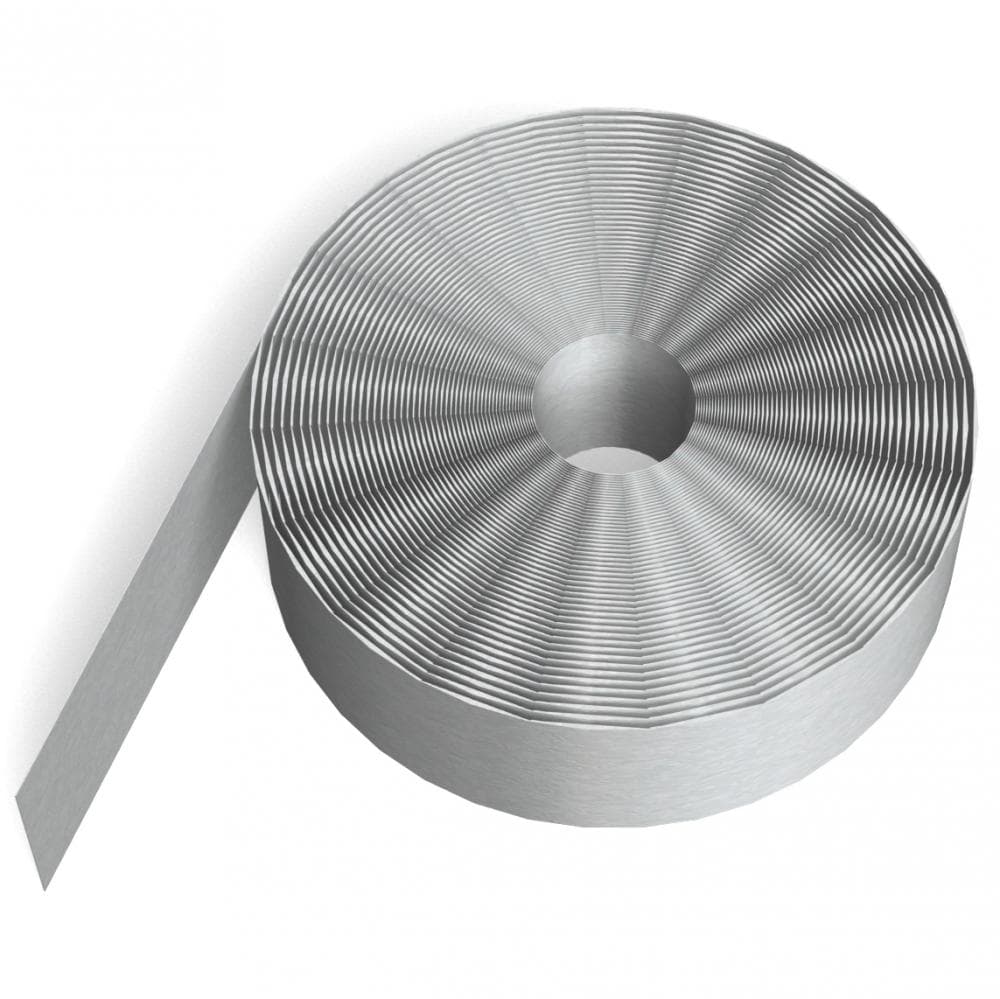

Multipurpose pre-punched commercial coil stock used for bracing, bridging or tension strapping

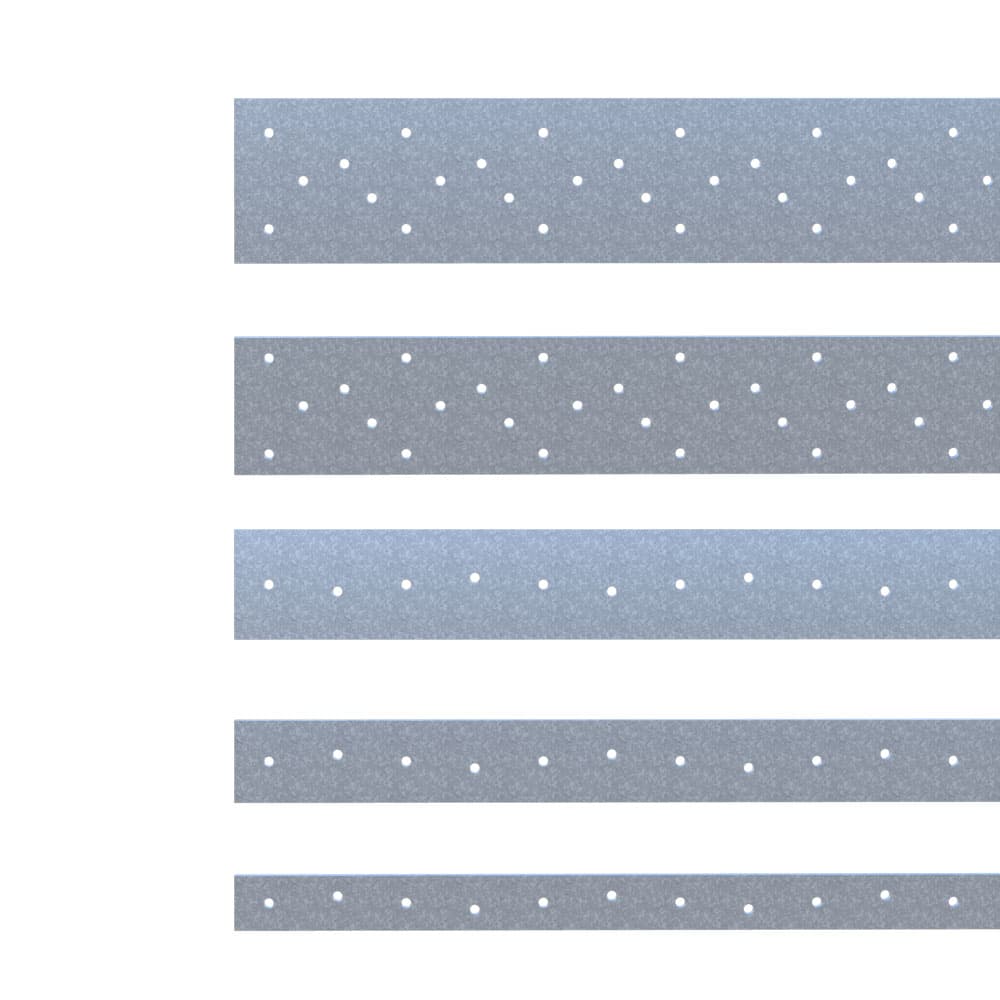

Coil Strapping is made in a variety of widths, each with a unique layout of pre-punched holes for a variety of fastening options to meet different application requirements.
Quick Actions:
Coil Strapping is made in a variety of widths, each with a unique layout of pre-punched holes for a variety of fastening options to meet different application requirements.
Product Highlights:

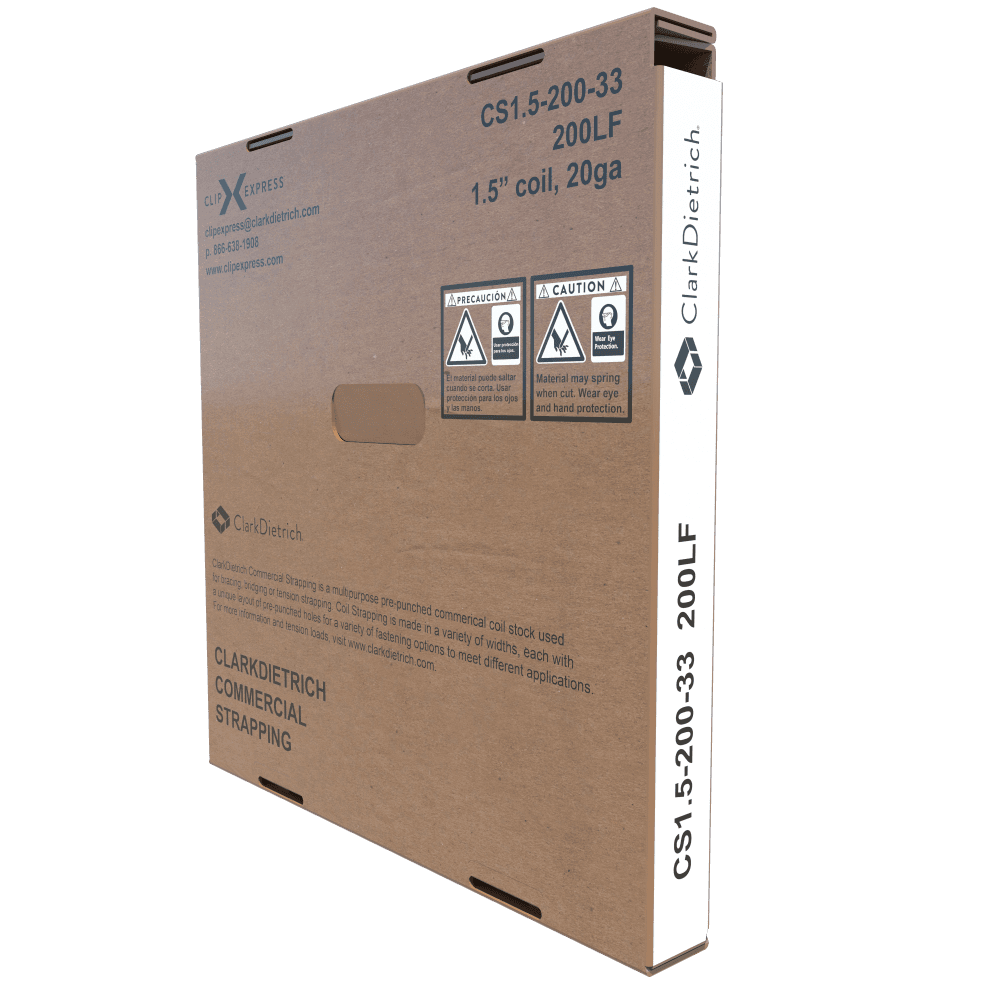

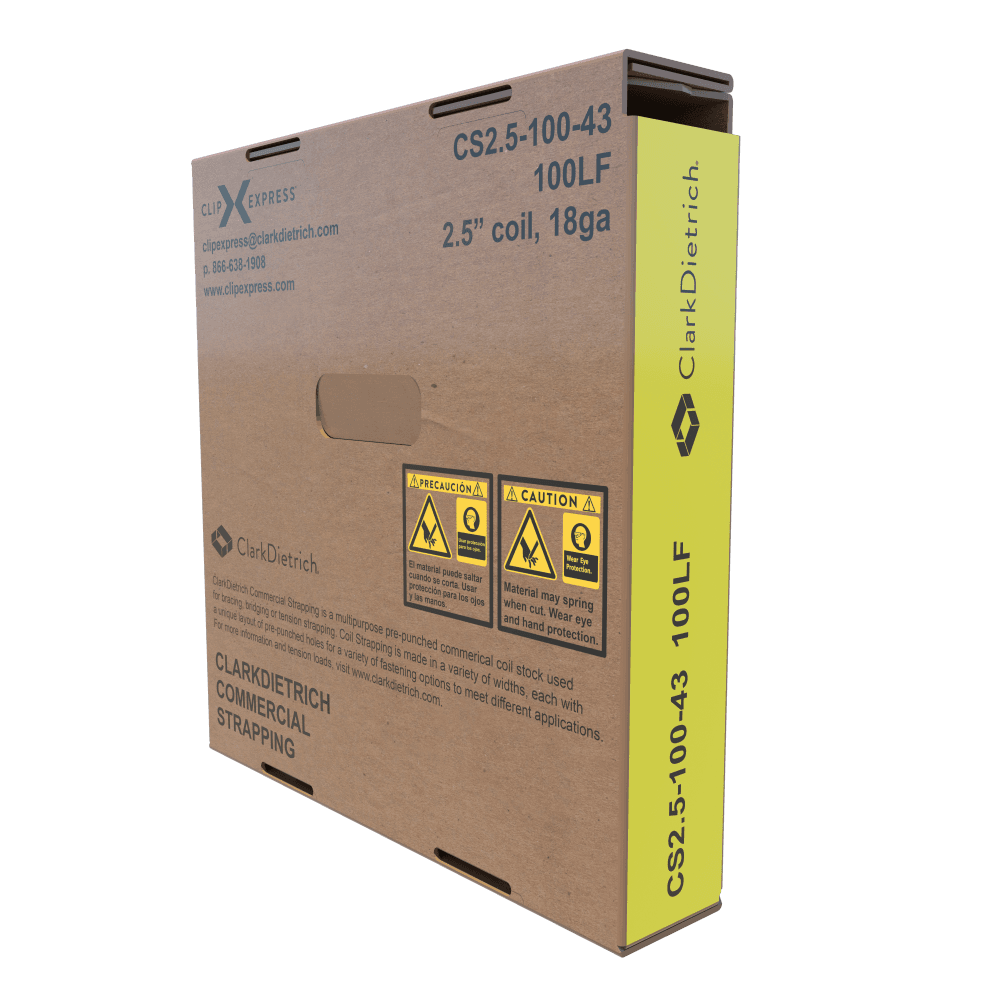

- Packaged for easy grab and go on jobsite
- Various LF lengths to aid in quicker installation
- Pre-punched holes to speed up installation and improve overall installation costs (see EOR for all connections)
- Tension Load Values Available
Applications include:

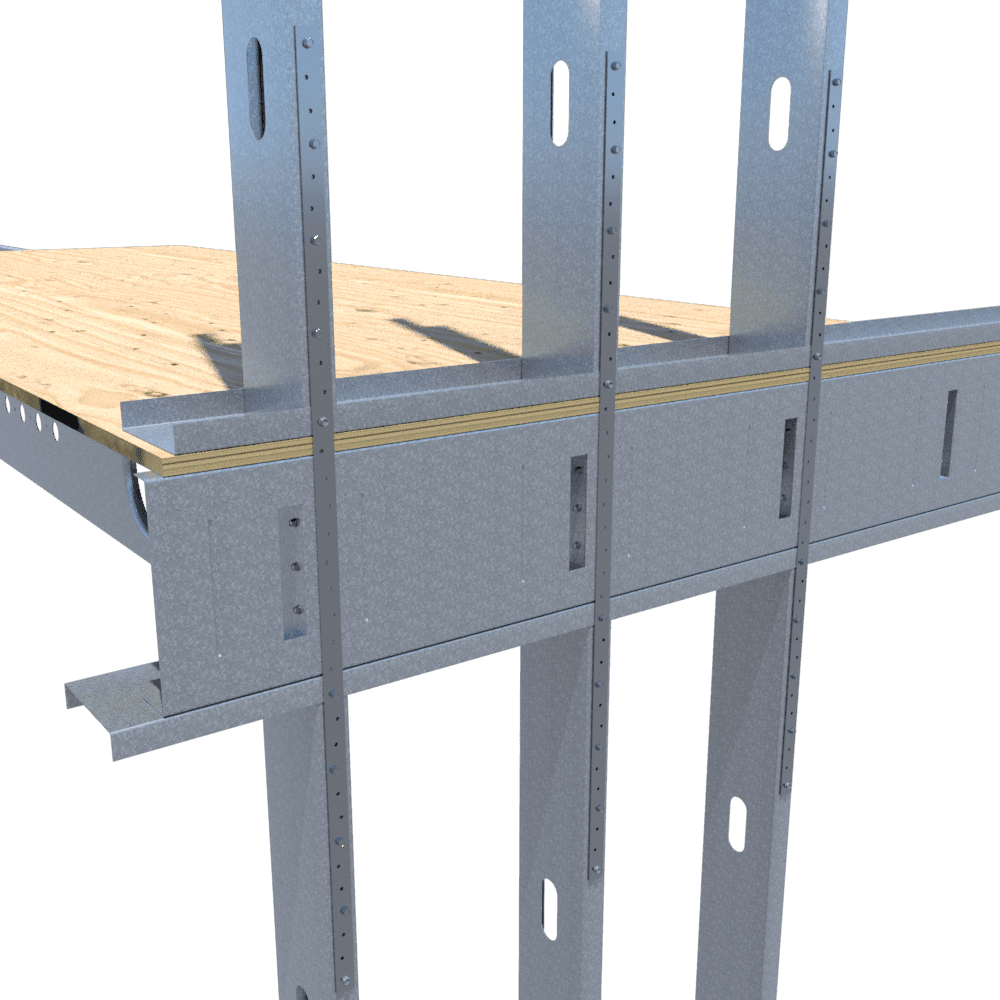

- Horizontal strap lateral bracing for wall studs

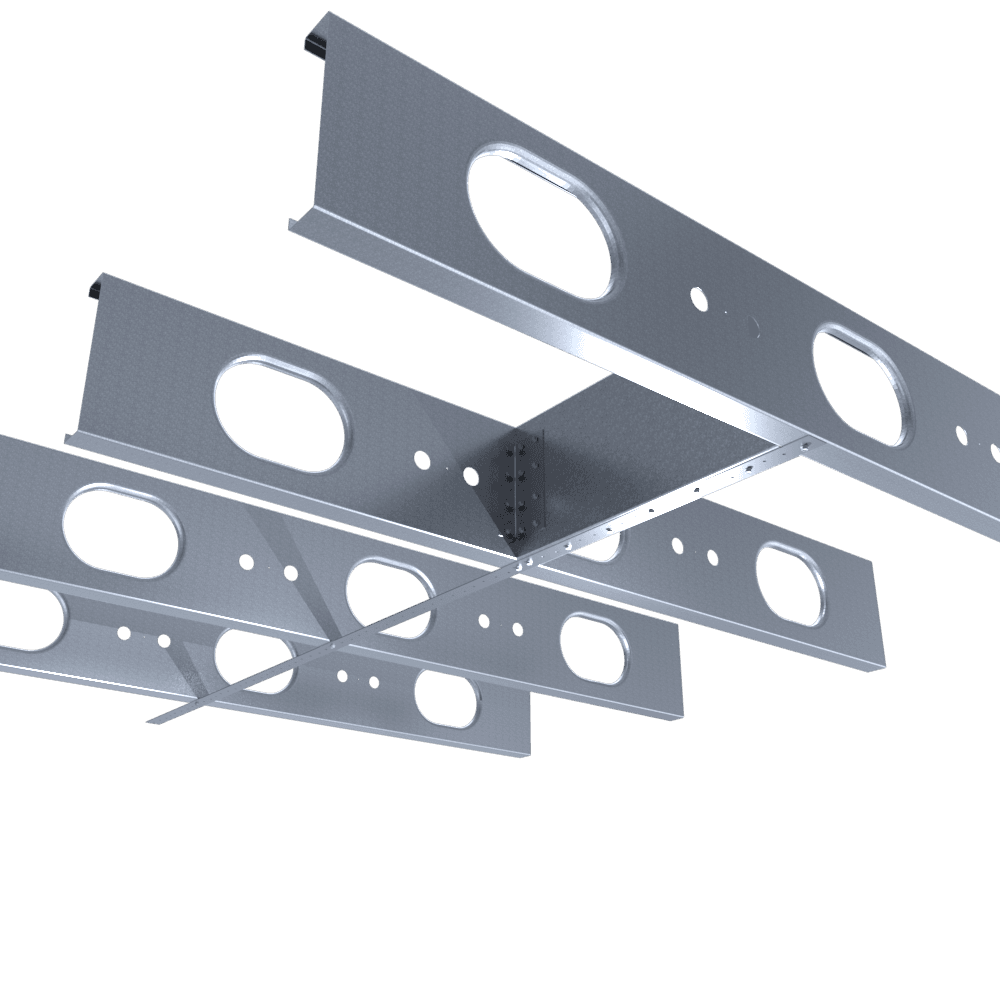

- Strap bridging for bottom of floor joists
- Tension strapping for shear wall x-bracing
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
Product Data & Ordering Information
| Product Code | Thickness | Width | Coil Length | |
|---|---|---|---|---|
| CS1-250-33 | 33mils (20ga) | 1 in | 250 ft | |
| CS1-250-43 | 43mils (18ga) | 1 in | 250 ft | |
| CS1.5-200-33 | 33mils (20ga) | 1.5 in | 200 ft | |
| CS1.5-200-43 | 43mils (18ga) | 1.5 in | 200 ft | |
| CS2-150-33 | 33mils (20ga) | 2 in | 150 ft | |
| CS2-150-43 | 43mils (18ga) | 2 in | 150 ft | |
| CS2.5-150-33 | 33mils (20ga) | 2.5 in | 150 ft | |
| CS2.5-100-43 | 43mils (18ga) | 2.5 in | 100 ft | |
| CS3-100-33 | 33mils (20ga) | 3 in | 100 ft | |
| CS3-100-43 | 43mils (18ga) | 3 in | 100 ft | |
