BOW BlazeFrame® RipTRAK™New
Bottom-of-wall track - 1 & 2 hour system

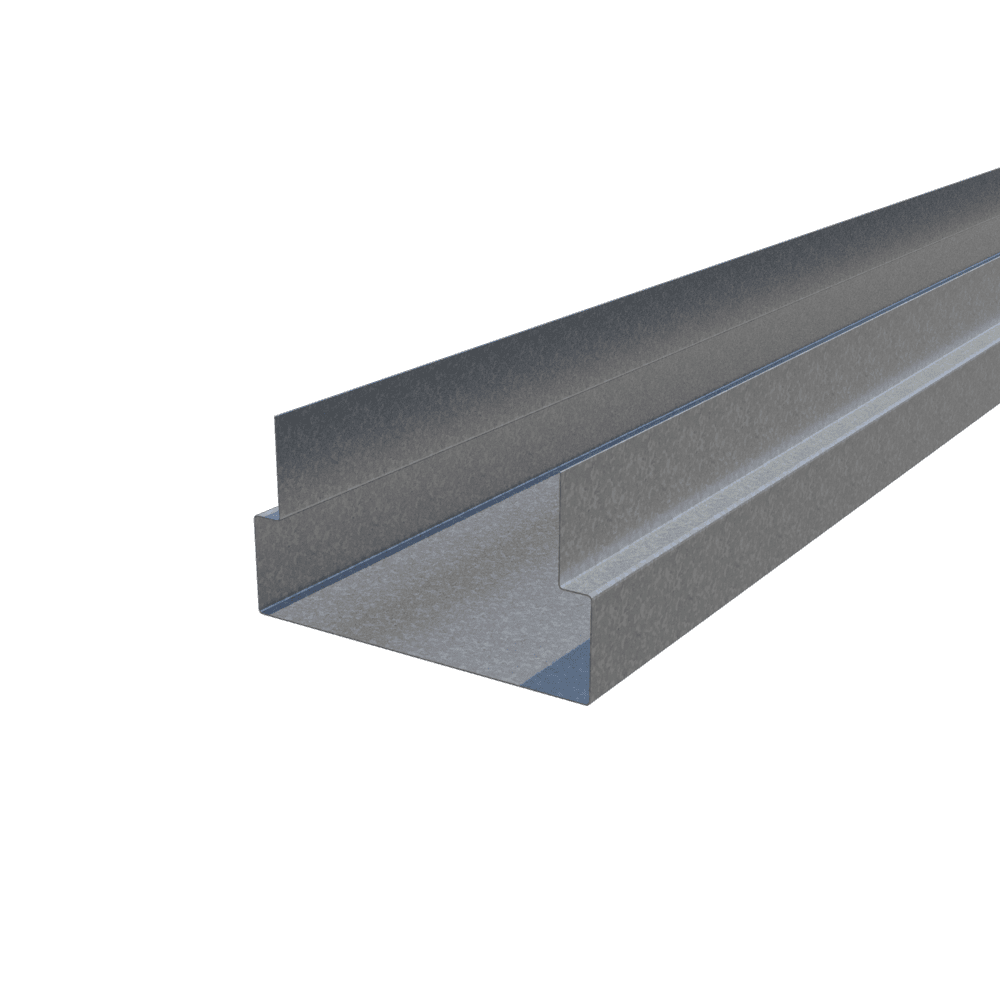

ClarkDietrich Bottom of Wall RipTRAK is a structural track used in high traffic, abuse, and moisture interior framing applications. This unique design lifts gypsum board, 2 inches off the floor eliminating concern of water absorption by the gypsum panel at bottom of the wall. BOW RipTRAK is fire and smoke rated for both 1- and 2-hour assemblies and available from 2 ½” to 6” widths.
Quick Actions:
ClarkDietrich Bottom of Wall RipTRAK is a structural track used in interior framing applications. This unique design lifts gypsum board, 2 inches off the floor eliminating concern of water absorption at bottom of the wall. BOW RipTRAK is fire-rated for both 1- and 2-hour assemblies and available from 2 ½” to 6” widths.
Product Data & Ordering Information:
Material: Yield Strength: Grade 33ksi for 33mils & 43mils; Grade 50ksi for 54mils & 68mils
Coating: CP60 (CP90 available)
33mils: 20ga STR, 0.0346" Design Thickness, 0.0329" Min. Thickness
43mils: 18ga, 0.0451" Design Thickness, 0.0428" Min. Thickness
54mils: 16ga, 0.0566" Design Thickness, 0.0538" Min. Thickness
68mils: 14ga, 0.0713" Design Thickness, 0.0677" Min. Thickness
Inside depth: Equal to the outside width of the stud
Web sizes (W): 2-1/2", 3-5/8", 4", 6"
Track length: 10'-0"
